HG630 Automated MS Carbon Steel Tube Making Machine 380V PLC Control

Name: HG630 Automated MS Carbon Steel Tube Making Machine 380V PLC Control
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG630
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE, ISO9001
Model Number:	HG630

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE, ISO9001

Model Number:

HG630

Product Name:

HG630 Automated Ms Carbon Steel Tube Making Machine

Voltage:

380V/3Phase/50Hz

Control System:

PLC

Roller Stations:

18-20 Stations

Cutting Tolerance:

±2mm

Roller Material:

45# Steel

Forming Speed:

15-20m/min

Machine Size:

120m*8m*10m

Machine Weight:

About 600 Ton

Key Word:

Ms Carbon Steel Tube Making Machine

Highlight:

High Light

Highlight:

Ms Carbon Steel Tube Making Machine

Square Carbon Steel Tube Making Machine

HG630 square pipe manufacturing machine

Trading Information

Minimum Order Quantity:

Price:

$100000 to $1 million

Delivery Time:

100 days

Payment Terms:

CIF

Supply Ability:

30 SETS PER YEAR

Product Description

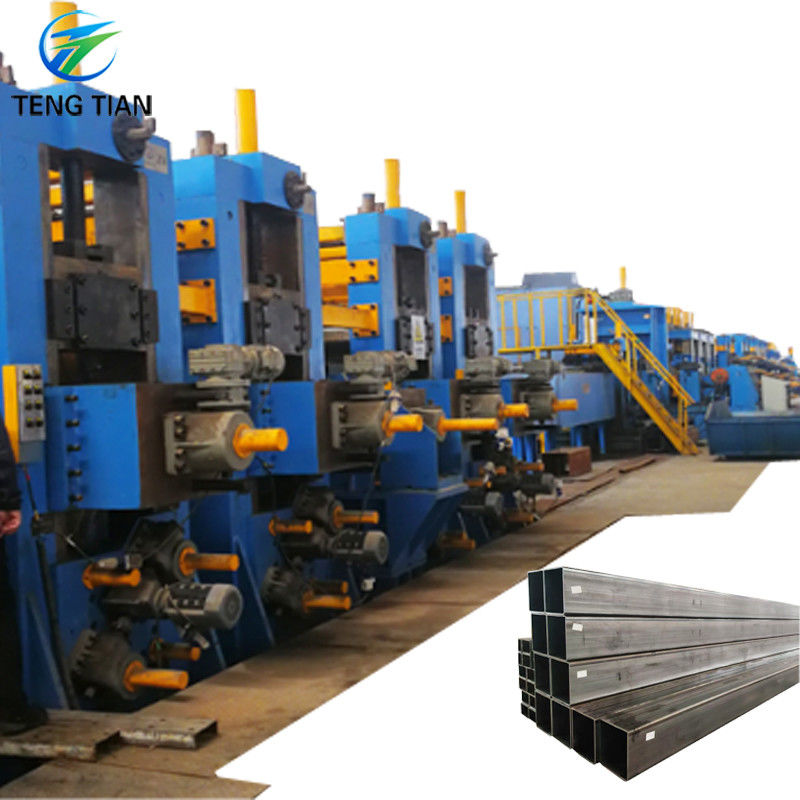

HG630 Automated MS Carbon Steel Tube Making Machine for Square Pipe Manufacturing

Product Overview

The HG630x16 high frequency welded pipe production line manufactures welded steel pipes of Φ325mm-Φ630mm (thickness 4.0-16.0mm) and square pipes 250x250-500x500mm (thickness 4.0-16mm). Incorporating advanced global pipe making technology, this innovative production line offers both economical and practical solutions.

Technical Specifications

Attribute	Value
Product Name	HG630 Automated MS Carbon Steel Tube Making Machine
Voltage	380V/3Phase/50Hz
Control System	PLC
Roller Stations	18-20 Stations
Cutting Tolerance	±2mm
Roller Material	45# Steel
Forming Speed	15-20m/min
Machine Size	120m8m10m
Machine Weight	About 600 Ton

Material Specifications

Material Quality: Q195, Q235B, Q355B, Galvanized Steel, MS, CR, HR
Mechanical Properties: σb≤500Mpa, σs≤325MPa
Strip Width: 1020-2000mm
Strip Thickness: 4.0-16mm
Coil ID: Φ508-610mm
Coil OD: Φ1200mm-2100mm
Coil Weight: 25.0T

Finished Product Specifications

Pipe Size: Round Pipe: φ325-φ630mm (Thickness: 4.0-16mm), Square Pipe: 250x250-500x500mm (Thickness: 4.0-15mm)
Length: 4-6m
Application: Structural purposes

Certification & Performance

TENGTIAN Steel Pipe Making Machine is ISO9001 and CE certified, offering excellent performance and reliable quality for round steel pipe production. The machine features advanced technology with a forming speed of 15-20m/min and cutting tolerance of ±2mm.

Customization Options

Brand Name: TENGTIAN
Model Number: HG630
Place of Origin: China
Certification: CE, ISO9001
Minimum Order Quantity: 1
Delivery Time: 200 days
Payment Terms: CIF
Supply Ability: 30 SETS PER YEAR
Shaft Diameter: 300mm
Cutting Length: Any Length

Support & Services

Troubleshooting and problem solving
On-site installation and commissioning
Regular maintenance checks and servicing
Emergency repair and parts replacement
Software and system upgrades
Training and technical support

Our experienced technicians ensure your machine operates smoothly and efficiently. Contact us for any assistance.

Frequently Asked Questions

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 20 years experience.

Q2: What is the max size of pipe you have even produce?

A2: Maximum φ630mm.

Q3: Can I visit your customer machine line?

A3: Yes, but we need to get agreement from our customer first.

Q4: What is your machine advantages?

A4: Full automatic operation, direct forming square capability, shared rollers, and fast change system.

Q5: How I can get the quotation?

A5: Please send your pipe size and thickness requirements to us.
