Cold Saw Cutting Energy Conservation Galvanized Steel Tube Making Machine
I. Introduction
For the situation that all countries are doing infrastructure construction, Steel Tube Making Machine have many uses. The finished product is used in various fields such as building materials, decoration, new energy, etc., and is one of the necessary GI Steel Tube Making Machine for Round Pipe Machine for steel products. Low investment and high return, suitable for companies new to the steel industry
II. Common product specifications
| No. |
Model |
Pipe Size |
Thickness |
Speed(m/min) |
Capacity(KW) |
HF(KW) |
Area(LxW in Metres) |
| 1 |
HG20 |
ø8 - ø20 mm |
0.3 - 1.5 mm |
30 - 150 |
210 |
100 |
40*12 |
| 2 |
HG32 |
ø10 - ø32 mm |
0.4 - 2.0 mm |
30 - 150 |
300 |
150 |
40*12 |
| 3 |
HG50 |
ø16 - ø50 mm |
0.7 -2.5 mm |
30 - 150 |
410 |
200 |
60*12 |
| 4 |
HG60 |
ø22 - ø60 mm |
0.9 - 3.0 mm |
30 - 150 |
410 |
200 |
60*12 |
| 5 |
HG76 |
Ø25 - ø76 mm |
1 - 4 mm |
30 - 120 |
580 |
300 |
80*16 |
| 6 |
HG89 |
Ø32 - ø89 mm |
1 - 4.5 mm |
30 - 100 |
660 |
300 |
100*16 |
| 7 |
HG114 |
Ø45 - ø114 mm |
1.5 -5 mm |
30 - 80 |
920 |
400 |
100*16 |
| 8 |
HG140 |
Ø50 - ø140 mm |
1.5 - 5.5 mm |
30 - 80 |
920 |
400 |
100*16 |
| 9 |
HG165 |
Ø60 - ø165 mm |
2 - 6 mm |
30 - 60 |
1100 |
500 |
100*16 |
| 10 |
HG219 |
Ø114 - ø219mm |
3 - 8 mm |
20 - 45 |
1400 |
600 |
150*16 |
| 11 |
HG273 |
Ø114 - ø273mm |
4 - 12 mm |
15 - 30 |
2100 |
800 |
160*18 |
| 12 |
HG325 |
Ø165 - ø325 mm |
4 - 14 mm |
10 - 30 |
2500 |
1000 |
200*24 |
| 13 |
HG426 |
Ø165 - ø426 mm |
4 - 16 mm |
8 - 25 |
2900 |
1200 |
250*24 |
| 14 |
HG508 |
Ø219 - ø508 mm |
5 - 18 mm |
5 - 18 |
3400 |
1600 |
300*24 |
| 15 |
HG610 |
Ø355 - ø610 mm |
5 - 18 mm |
5 - 18 |
3700 |
1600 |
300*24 |
| 16 |
HG760 |
Ø426 - ø760 mm |
5 - 20 mm |
5 - 20 |
4300 |
1800 |
300*24 |
III.Equipment composition
Uncoiler :The Single Cone winding is of the structure of double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.
Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.
Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.
Feeder and punching machine : The feeder sends the steel strip to the punching machine position, the punching machine punches the steel strip, and then sends it to the forming part .Each size is equipped with a set of punching molds, the punching machine can automatically change the molds.

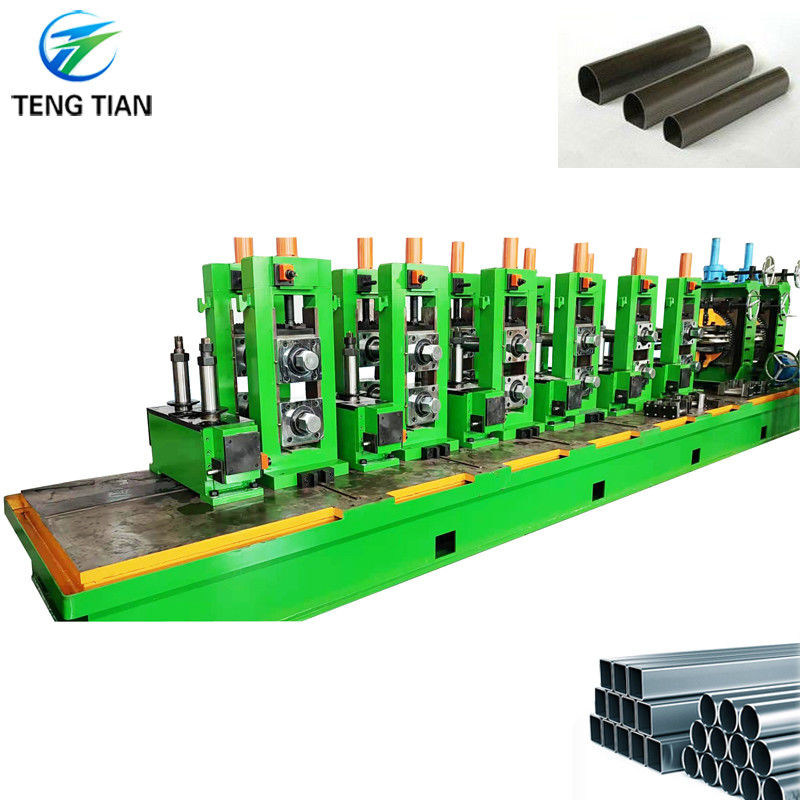

Forming and sizing part : this part roller forming the steel strip into round square pipe. The size can be adjusted by the servo motor.
Cutting machine : It is used for material cutting of continuous non-stop pipe and tube production. The cutting method is cold saw. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover
IV. Equipment composition
| No. |
Name |
| 1 |
uncoiler |
| 2 |
Straightener & leveler |
| 3 |
Automatic shear and welding |
| 4 |
Accumulator |
| 5 |
roller forming and sizing part |
| 6 |
cold saw |
| 7 |
runout table |
| 8 |
Automatic packing and palletizing |
IV. Factory appearance
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
