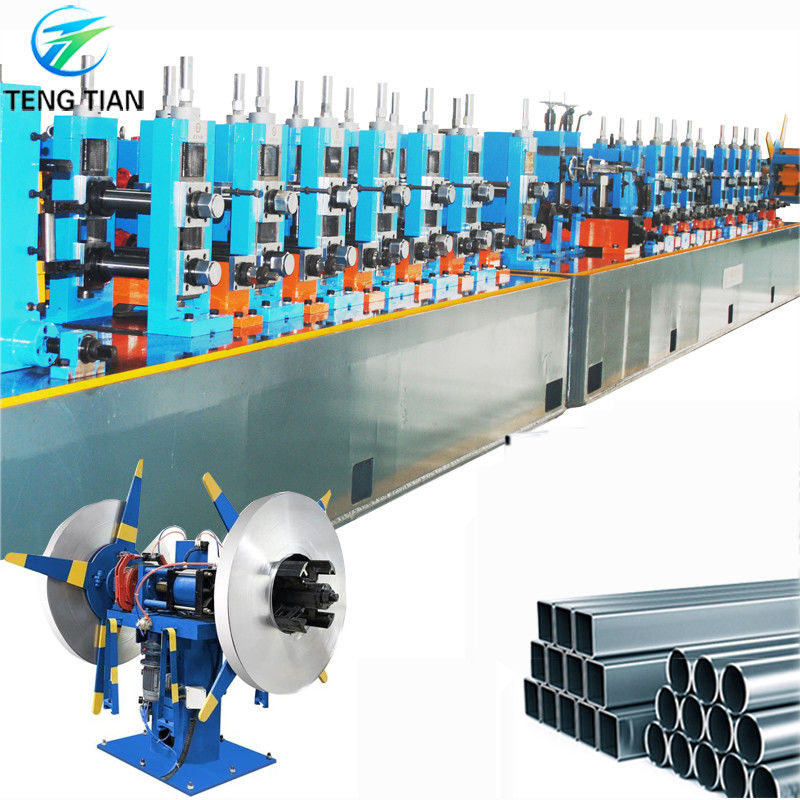

High Precision Carbon Steel 100m/Min Steel Tube Making Machine
- Product process
| 1 |
uncoiler |
| 2 |
pinch and leveling machine |
| 3 |
straightening |
| 4 |
shear welder |
| 5 |
horizontal accumulator |
| 6 |
7 sets roller forming stand |
| 7 |
cold saw
|
| 8 |
Roller conveyer round pipe |
| 9 |
auto stacking machine
|
| 10 |
Electric control cabinet
|
- Product overview
High Precision Carbon Steel Pipe Machine 100m/min Custom Steel Tube Making Machine unit design reasonable, the touch screen man-machine interface, PLC digital program control, code length, high degree automation, process flow, product quality good, stable mechanical properties, high yield, save work time and work cost, the overall linkage scale with high precision.
It is main include frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, inspected velocity unit; it can supply the strip steel to accumulator and the mean times it will transfer the carry velocity information to electric control system, when we demand stop carry the material to this unit, it will stop roll to the electric motor and press& carry material roll by the break, and also could adjust the velocity to carry electric motor and the unit carry material velocity.
|
Raw Material Conditions
|
Hot rolled or cold rolled steel strip
|
| single cone uncoiler |
Hydraulic pressure increases and single cone |
|
Thickness of strip
|
0.6-2.5 mm
|
|
Strip Width
|
50 - 130mm
|
|
Max Coil Weight
|
3000Kg
|
|
working speed
|
100m / min
|
|
Main motor
|
410kw
|
P.S.
we can design the High Precision Carbon Steel Pipe Machine 100m/min Custom Steel Tube Making Machine accoeding to the customer detail require.
It is our honor to answer all your questions, welcome to consult
single cone uncoiler
Shear and welder
horizontal spiral accumulator
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
