Carbon Steel Erw Pipe Plant Mill With Fully Automatic

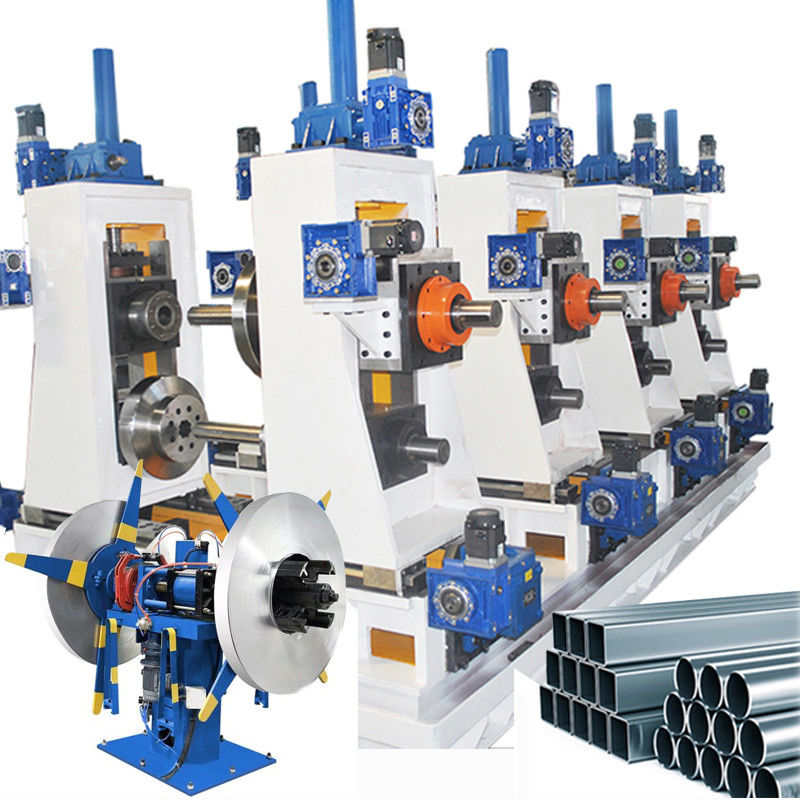

Large Image : Carbon Steel Erw Pipe Plant Mill With Fully Automatic

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG 76

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Standard Export Packing
Delivery Time:	50 days
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets/Yearly

Contact Now

Detailed Product Description

Features:	FFX	Product Name:	Carbon Steel ERW Pipe Mill With Fully Automatic
Welding Speed:	0-100m/min	Material:	Carbon Steel
Product Speed:	Max 90m/min	Welding Type:	ERW
Rollers:	Not Include	Max Size:	76mm
Raw Material:	Hot Rolled/Cold Rolled Steel Strip	Keywords:	Pipe Mill With Fully Automatic
Highlight:	Carbon Steel erw pipe plant , Fully Automatic erw pipe plant , erw pipe plant Mill

Details

Carbon Steel Erw Pipe Plant Mill With Fully Automatic 0

Model Number	HG76
Place of Origin	Hebei, China (Mainland)
Molding speed	30-80m/min
Pipe diameter	20-76mm
Pipe Thickness	1-4mm
Voltage	380V/220V
Power	350KW
Certification	ISO9001,CE,BV
Pipe shape	Rectangle,round,square
Material of Pipe	Carbon Steel , Stainless Steel and Galvanized Steel

Carbon steel tube making machinery High frequency straight seam welded pipe production line is the specifications of the steel belt feeding unit, carbon steel tube making machinery through the roll bring curled up into a tube billet steel, and then use the high frequency of proximity effect and skin effect make the strip edge instantaneous heating to welding temperature, and under the action of squeezing roller complete welding, then through water cooling, sizing and straightening as required specifications of the steel pipe. The product line in each units on the basis of digesting and absorbing domestic and foreign similar equipment, combined with China's national conditions, innovative design, convenient operation and maintenance, simple. The machine has high machining quality and assembly precision, and can produce electric welded steel pipe with high precision by adopting reasonable roll pass.

Carbon Steel Erw Pipe Plant Mill With Fully Automatic 4

carbon steel tube making machinery Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Carbon Steel Erw Pipe Plant Mill With Fully Automatic 5

carbon steel tube making machinery ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Quality carbon steel tube making machinery Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
