ERW Carbon Steel Welded Pipe Mill 15-60mm for Steel Construction

Product Details:

Place of Origin:	China
Brand Name:	tengtian
Certification:	BV,CE, ISO9001
Model Number:	50

Detail Information

Place of Origin:

China

Brand Name:

tengtian

Certification:

BV,CE, ISO9001

Model Number:

Product Name:

ERW Carbon Steel Welded Pipe Mill

Color:

White

Pipe Length:

4-8 M

To-length Accuracy:

0-6 Mm

Material:

Low Carbon Steel

Diameter:

15-60 Mm

Usage:

Steel Construction

Keyword:

ERW Welded Pipe Mill

Highlight:

High Light

Highlight:

ERW Pipe Mill Equipment

15-60 Mm Tube Mill Equipment

Carbon ERW Tube Mill Equipment

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Payment Terms:

L/C,T/T

Supply Ability:

26 of each year

Product Description

ERW Carbon Steel Welded Pipe Mill / 15-60 Mm Tube Mill Equipment

Product Specifications

Attribute	Value
Product name	ERW Carbon Steel Welded Pipe Mill
Color	White
Pipe Length	4-8 m
To-length Accuracy	0-6 mm
Material	Low carbon steel
Diameter	15-60 mm
Usage	Steel construction

Main Equipment and Technical Data

4.1 Uncoiler

Parameter	Specification
Inner Diameter of Coil, mm	480～600
Outer Diameter of Coil, mm	Max 1800
Width of strip, mm	45～150
Weight of Coil, max, ton	2
Structure	Double-mackerel
Drum Expansion	Pneumatic
Swivel	Manual

4.2 Semi-auto Shear Welder

Parameter	Specification
Shearing Width, mm	45～150
Thickness of Strip, mm	0.6～3.25
Welding Speed, m/min	0.59～0.9
Moving of Torch	DC Servo Motor
Clanking of Strip During Welding	Manual
Shearing of Strip	Pneumatic
Welding of Strip	CO2 Shield Welder CO2
Adjust of Up and Down	Manual

4.3 Pinch Roll Assembly

Parameter	Specification
Feeding Speed, max, m/min	300
Up and Down of Pinch Roll	Pneumatic
Material of Pinch Roll	GCr15
Height Guide Roll Assay	1
Entry Guide Roll Assay	1
Motor, kW	11

4.4 Cage Accumulator

Parameter	Specification
Dimensions, m	8×3.5

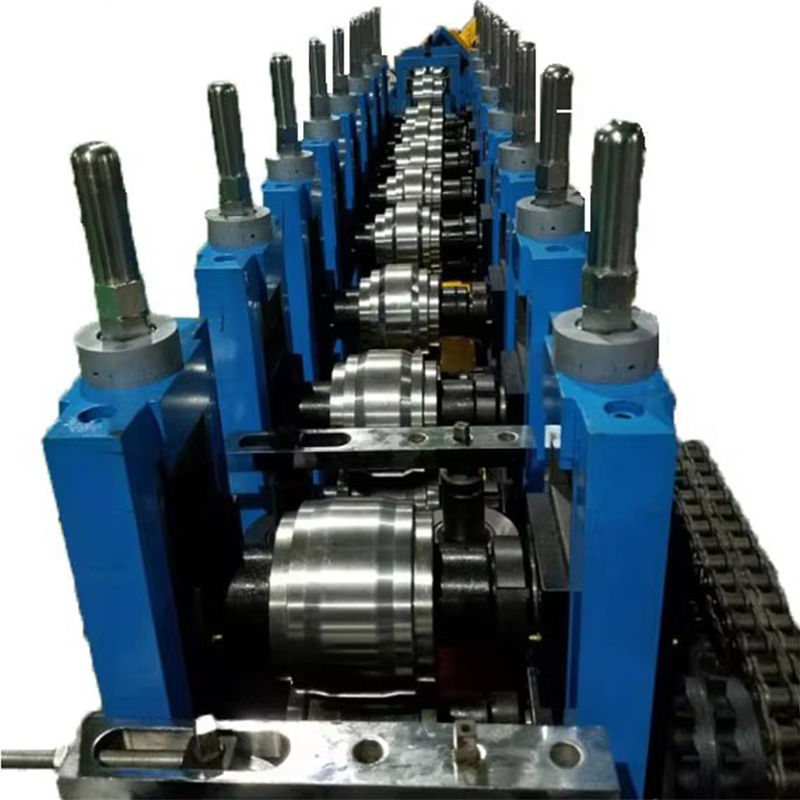

4.5 Forming and Sizing Mill

Parameter	Specification
Material	Low carbon steel & low alloy steel σb≤500Mpa σs≤300Mpa
Diameter of Pipe, mm	16～50
Thickness of Strip, mm	0.6～3.25 (round pipe), 0.6～2.5 (square/rectangular pipe)
Width of Strip, mm	45～145
Main Motor Power, kW	2×55
H.F. Power, kW	200KW
Forming Mode	Roll forming
Stand	Portal style
Forming Speed, m/min	Max 80
Entry Guide	1
No. of forming stands	Horizontal 6, Vertical 6
No. of sizing stands	Horizontal 6, Vertical 6
Seam Guide Roll Stand	1
Squeeze Roll Stand	1
Bead Scraper	2
Cooling Zone	1
Driving Roll Shaft Diameter, mm	40Cr, Φ55
Side Roll Shaft Diameter, mm	40Cr, Φ35
Turks Head	4-roll style, 2
Reduction Gear Box	Bevel Gear Box
Driving System	BS Euro herm

4.6 Flying Saw

Parameter	Specification
Outer Diameter of Pipe, max, mm	50
Wall Thickness, max, mm	3.5
Cut-to-length, m	4～8
Cutting Motor Power, kW	AC 15
Traveling Motor Power, kW	DC 15
Cutting Accuracy, mm	0～6
Control	Computer
