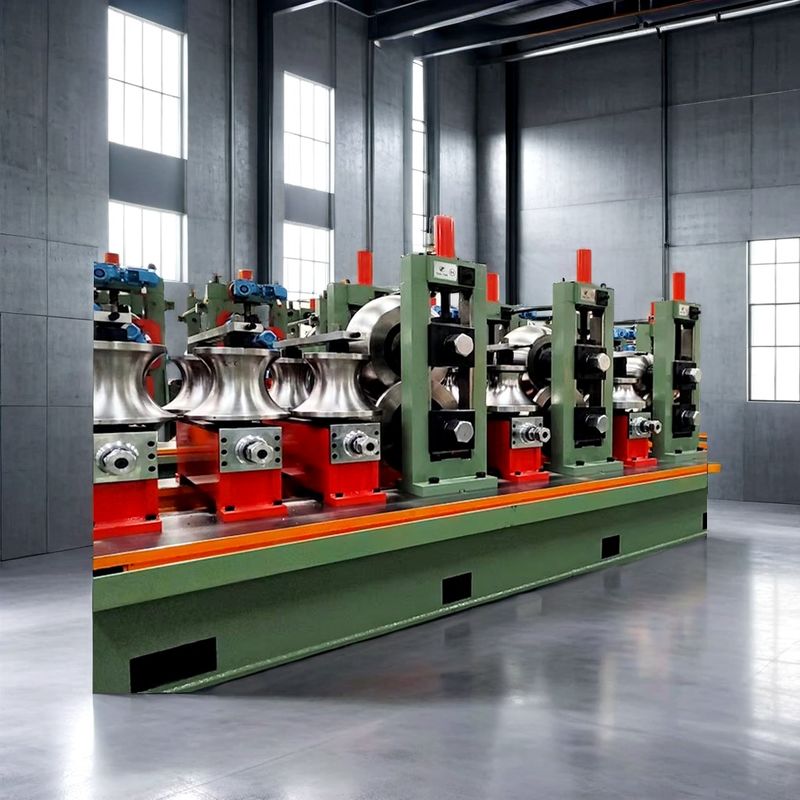

Fully Automatic HF Welded Pipe Mill for Carbon Steel 114-219mm

Name: Fully Automatic HF Welded Pipe Mill for Carbon Steel 114-219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG219

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG219

Product Name:

Fully Automatic High Frequency Welded Carbon Steel Pipe Mill

Hf Welder Power:

400 KW

Dimension:

25m*2m*1.5m

Model:

HG 219

Control System:

PLC

Speed:

0-60m/min

Wall Thickness Range:

4mm-8mm

Material:

Carbon Steel, Stainless Steel, Galvanized Steel

Round Pipe:

φ114—φ219mm

Hf Welder:

500KW, Solid State

Coil Inner Diameter:

Φ508mm

Round Pipe Diameter:

114mm-219mm

Cutting Length Precision:

±3mm

Drive Motor:

DC 75KW X 2

Description:

Steel Pipe Making Machine

Thickness:

1.5-8.0mm

Production Name:

High Frequency Welded Pipe Mill

Pipe Length:

4-12m

Forming Speed:

20～60m/min

Pipe Thickness Range:

1.5-8.0mm

Forming Method:

Roll Forming

Length:

6-12m

Production Speed:

Max 60 M/min

Key Word:

High Frequency Welded Carbon Steel Pipe Mill

Highlight:

High Light

Highlight:

Fully Automatic Welded Tube Mill

Carbon Steel Welded Tube Mill

219mm Welded Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

100 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

Fully Automatic High Frequency Welded Tube Mill, 219mm Carbon Steel Pipe Mill

Product Specifications

Product Name	Fully Automatic High Frequency Welded Carbon Steel Pipe Mill
HF Welder Power	400 KW
Dimension	25m × 2m × 1.5m
Model	HG 219
Control System	PLC
Speed	0-60m/min
Wall Thickness Range	4mm-8mm
Material Compatibility	Carbon Steel, Stainless Steel, Galvanized Steel
Round Pipe Diameter	φ114—φ219mm

Product Description

The HG219 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes of Ф114～219mm in diameter with wall thickness of 4.0～8.0mm, as well as square pipes (90×90--170×170mm) with thickness from 4.0-7.0mm.

Technical Specifications

Power: Approx. 800KW

Power Source: 380V/50Hz/3phases

Cooling Water: Flow 30T/h～40 T/h, Pool Volume 60m³

Compressed Air: Flow 5m³/min, Pressure 5～7kg/cm²

Model Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed	Motor Power
HG20	8-20MM	0.3-1MM	30-120 m/min	55 KW
HG32	12-32MM	0.3-2.0MM	30-120 m/min	75 KW
HG219	114-219MM	4-8MM	20-40 m/min	800 KW
HG508	219-508MM	4-20MM	8-20 m/min	2000 KW

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with life-time repair service
Pre-sales services including workshop and production output design
Post-sales support including technical assistance and process optimization
Option for extended engineer support (several months to 1 year)
Complete project design for pipe manufacturing facilities
Responsible for loading and shipping arrangements
