Fully Automatic High Frequency Welded Carbon Steel Pipe Mill 70x70-150x150mm

Name: Fully Automatic High Frequency Welded Carbon Steel Pipe Mill 70x70-150x150mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG63
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG63

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG63

Product Name:

Fully Automatic High Frequency Welded Carbon Steel Pipe Mill

Tensile Strength Of Raw Material:

σb≤520 Mpa

Pipe Size Range:

70x70-150x150mm

Thickness:

2.0-10.0mm

Max. Production Speed:

20～50m/min

Control System:

PLC

Fixed Cutting Length:

6-15m

Warranty:

One Year

Welding Type:

High Frequency Welding

Keywords:

High Frequency Welded Carbon Steel Pipe Mill

Highlight:

High Light

Highlight:

Carbon Steel Square Pipe Mill

Fully Automatic pipe tube mill

High Frequency Welded pipe rolling mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Fully Automatic High Frequency Welded Carbon Steel Pipe Mill

Key Specifications

Tensile strength of raw material	σb≤520 Mpa
Pipe size range	70x70-150x150mm
Thickness	2.0-10.0mm
Max. Production Speed	20～50m/min
Control System	PLC
Fixed Cutting length	6-15m
Warranty	One year
Welding Type	High Frequency Welding

Product Overview

The HG254 high precision high frequency welded pipe production line produces square pipes (70x70-150x150mm) and round pipes (φ89-φ190mm) with thickness ranging from 2.0-10.0mm. This fully automated production line incorporates advanced technology from domestic and international sources, featuring PC/computer control for convenient operation and maintenance.

Technical Specifications

Raw Material: Hot rolled or cold rolled steel strip (meet GB700-88,GB1591-88)
Material Properties: δs Yield point ≤345Mpa, δb Tensile strength ≤610Mpa
Steel Strip Width: 280-600mm (±0.2mm)
Steel Coil Dimensions: Inner diameter Φ508mm~Φ760mm, Outer diameter Φ1200-Φ2000mm
Max Coil Weight: 15,000Kg

Production Process

Raw material (strip) → Uncoiler → Cutting and Welding → Feeding → Storage material → Passive leveling → Forming rolling → High frequency welding → Remove weld burr → Cooling → Sizing → Coarse straightening → Length cut → Collection

Product Precision

Pipe outer diameter tolerance: ±0.1mm

Main Equipment

Loading Car: For transporting steel coils (Φ1200-2000mm) to uncoiler

Hydraulic Uncoiler: Handles coils up to 15 TON with hydraulic expansion

Straight Head Machine: Guides steel strip into leveler

Pinch Leveling Machine: Levels strip head/end (15KW motor)

Semi-automatic Shear/Welder: For continuous production (hydraulic cutting)

Horizontal Accumulator: Stores 500-1000M of strip for continuous operation

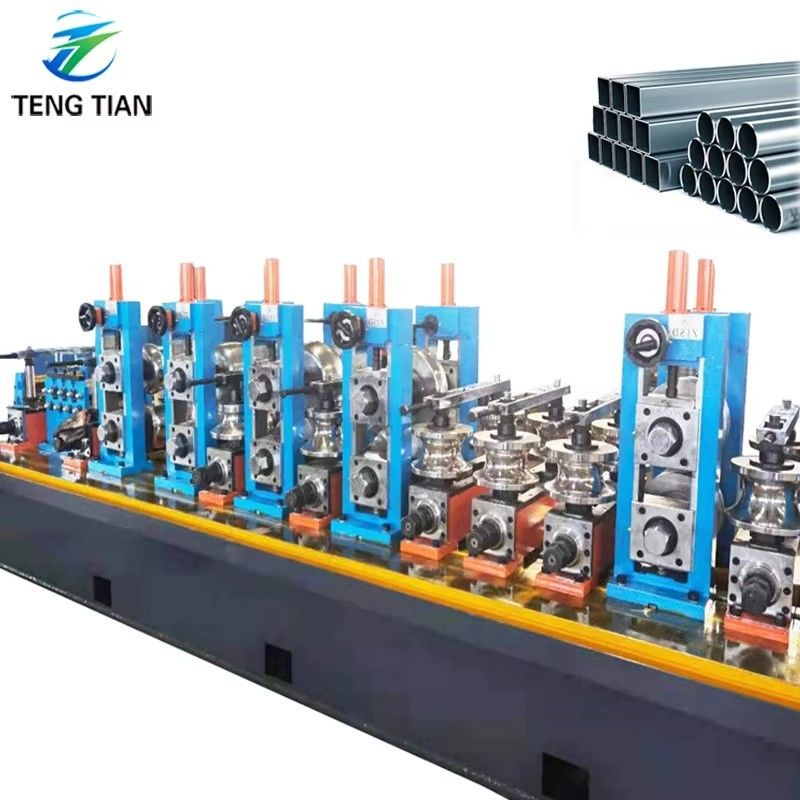

Forming and Sizing Mill

Rough forming with horizontal and vertical stands
Refined forming process
Welding work table with guide rolls and polishing
Cooling water table
Sizing machine with universal stands

600KW High Frequency Welder

600kW solid state HF welder	1 unit
Switchgear rectifying cabinet	1
Inverter output cabinet	1
Console(with PLC)	1
Water-water Cooler	1

Frequently Asked Questions

Are you manufacturer or trading company?

We are manufacturer with more than 20 years experience.

What is the max size of pipe you have even produce?

Maximum φ630mm.

Can I visit your customer machine line?

Yes, but we need to get agreement from our customer first.

What is your machine advantages?

Full automatic operation, direct forming square capability, shared rollers, and fast change system.

How I can get the quotation?

Please send your pipe size and thickness requirements to us.
