Attribute | Value |
---|---|
Production Name | MS High Frequency Welded Carbon Steel Pipe Mill |
Material | HRC, CRC, Galvanised Steel |
Pipe size | 80x80-200x200mm |
Pipe thickness | 4.0-10.0mm |
Welding Type | High Frequency Welding |
Pipe shape | Round, square, rectangular |
Roller material | Cr12/SKD11 |

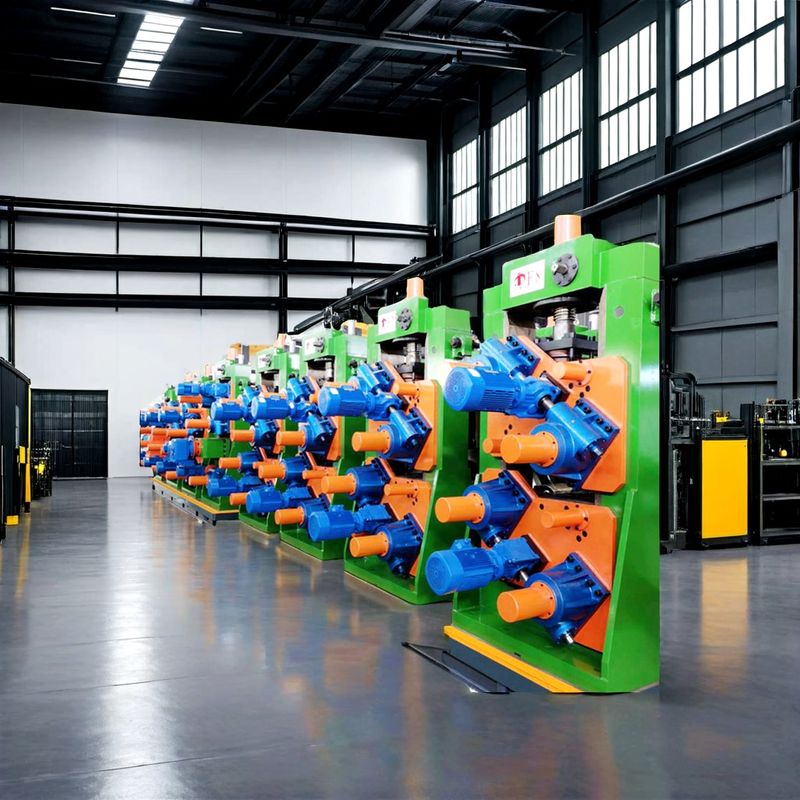

Our Automatic Steel Pipe 200x200mm High Frequency Welded Pipe Mill manufactures welded steel pipes with precision. Incorporating advanced pipe making technology from domestic and international sources, we produce tubes in various sizes and shapes while maintaining excellent dimensional accuracy.
Square tube size: 80x80-200x200mm, tube thickness: 4.0-10.0mm
Standard | Conforming to YB189-64 standard |
Material | Low carbon steel and low alloy constructional steel |
Mechanical properties | σb≤380Mpa, σs≤275MPa |
Strip width | 320~800mm |
Strip thickness | 4.0~10.0mm |
I.D of Coils | Φ508mm |
O.D of Coils | φ2000mm |
Coil Weight | ≤10T |
Square tube size | 80x80-200x200mm |
Pipe thickness | 4.0-10.0mm |
Finish pipe length | 4-8m |
Cut length accuracy | ±2mm |
Forming speed | 20-50m/min |
8m wide, 120m long, at least 6m high from Ceiling Rails to Ground.
Model | Diameter Range | Pipe Thickness | Line Speed (m/min) |
---|---|---|---|
HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
HG32 | 10-32MM | 1.4-1.5MM | 120 |
HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
HG76 | 25-76MM | 1-4MM | 30-100 |
HG89 | 32-89MM | 1-4.5MM | 30-80 |
HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
HG165 | 60-165MM | 3-7MM | 30-50 |
HG219 | 114-219MM | 4-8MM | 20-40 |
HG273 | 114-273MM | 4-10MM | 15-30 |
HG325 | 165-325MM | 4-10MM | 10-30 |
HG426 | 165-426MM | 4-12.7MM | 8-25 |
HG508 | 219-508MM | 4-16MM | 8-20 |
