Carbon Steel Square Tube Mill 120mM/Min Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	219

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

219

Production Name:

Carbon Steel Square Tube Mill 120mM/Min Speed

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

114-219mm

Worm Gearing:

High Efficiency

Thickness:

3-9mm

Speed:

60-120M/Min

Key Words:

Carbon Steel Square Tube Mill

Highlight:

High Light

Highlight:

carbon steel square tube mill

high-speed square tube mill 120mM/min

square tube mill with warranty

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

160 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 Sets/Year

Product Description

Carbon Steel Square Tube Mill 120mM/Min Speed

Product Specifications

Attribute	Value
Production Name	Adjustable Size 114-219mm Steel Pipe Production Line Max 120mM/Min Speed Color Green Square Tube Mill
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	114-219mm
Thickness	3-9mm
Speed	60-120M/Min
Key words	Color Green Square Tube Mill

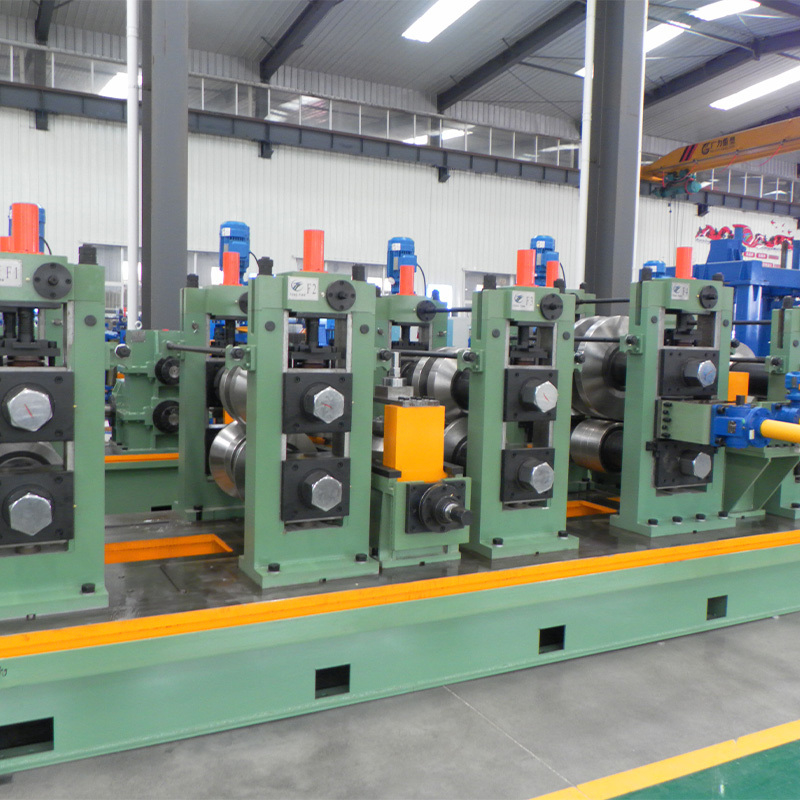

Carbon Steel Square Tube Mill 120mM/Min Speed 1

Carbon Steel Square Tube Mill 120mM/Min Speed 2

Product Overview

The Adjustable Size 114-219mm Steel Square Tube Mill with Max 120mM/Min Speed is designed to produce round pipes (Diaφ114-219mm, thickness 3-9mm). Featuring roll pass design, this production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Design Features

Improved operational and production performance
Enhanced environment and operational security
Increased product stability
Higher product productivity
Reduced roll costs

Technical Specifications

Carbon Steel Square Tube Mill 120mM/Min Speed 3

Material Specifications: Conforming to YB189-64 standard

Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip Width	357～688mm
Strip Thickness	1.5～6.0mm
Steel strip coil	Inner Diameter: φ508～φ610mm Outer Diameter: φ1000～φ2000mm
Coil Weight	≤12T

Welding Pipe Specifications:

Pipe Size	Round: φ114～φ219mm
Wall Thickness	3～9mm
Fixed Cutting length	8～12m
Pipe-cutting Precision	±1.5mm
Forming Speed	20～50m/min

Power, Water & Air Supply

Power Volume	Approx. 600KW
Power Source	380V/60Hz/3phases
Circulation Cooling Water Flow	20T/h～30 T/h
Pool Volume	30m3
Compressed Air Flow	5m3/min
Pressure	5～11kg/cm2

Workshop Requirements

6m wide, 70m long, at least 5m high from Ceiling Rails to Ground.

Technical Documentation Provided

Instruction Manual (provided one month before delivery)
Inspection Certificate (provided at delivery)
Loading Order (provided at delivery)
Layout Drawing (provided one month before delivery)
Ground Base Drawing (provided one month before delivery)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

Factory Images

Carbon Steel Square Tube Mill 120mM/Min Speed 4

Carbon Steel Square Tube Mill 120mM/Min Speed 5

Carbon Steel Square Tube Mill 120mM/Min Speed 6

Carbon Steel Square Tube Mill 120mM/Min Speed 7

FAQ :

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
