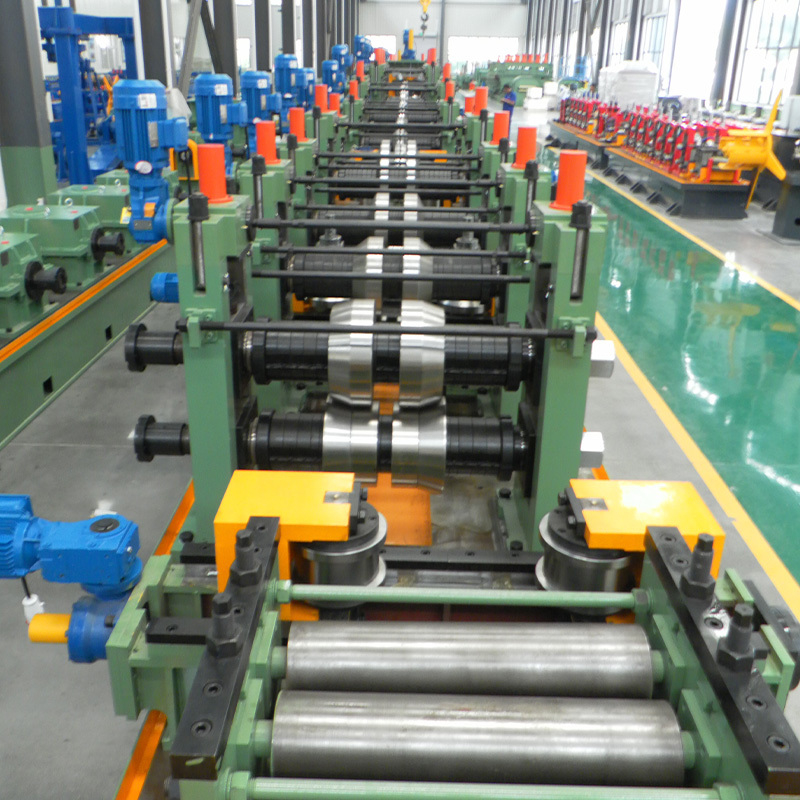

Square Tube Mill Machine for Direct Forming ISO9001
Product Specifications
| Attribute |
Value |
| Model |
600X600 |
| Feature |
Directly Forming and Stable |
| Pipe Types |
Round, square and rectangular pipe |
| Max Size |
600X600 mm |
| Thickness |
6.0 - 22.0 mm |
| Length |
6 m - 20 m |
| Rollers |
Included |
| Warranty |
One year |
Product Overview
This square tube mill is designed for opening, leveling, forming, welding, sizing and shaping of strip coils with plate thickness δ=6-22mm and plate width B=1000-2400mm. It processes materials like Q235 and Q345 into square tubes (250×250mm-600×600mm), rectangular tubes (250×300mm-400×600mm), and other special-shaped structural tubes.
Material Specifications:
- Material: Low carbon steel and low alloy constructional steel
- Mechanical properties: σb≤380Mpa, σs≤275MPa
- Strip width: 1000～2400 mm
- Strip thickness: 6.0～22.0mm
- Coil I.D: 610-760mm
- Coil O.D: 1300-2000mm
- Coil Weight: ≤35T
Welded Pipe Specifications:
- Round Pipe Diameter: Φ250～φ600mm
- Square tube size: 250X250-600x600mm
- Pipe thickness: 6.0-22.0mm
- Finish pipe length: 6 - 22 m
- Cut length accuracy: ±2mm
- Forming speed: 20m/min
Production Process Flow
Coil preparation
→ Coiling
→ Uncoiling
→ Head removal
→ Leveling
→ Cutting butt welding
→ Looper storage
→ Vertical roller alignment
→ Delivery
→ Forming (13 frames)
→ High frequency welding
→ Five rollers extrusion
→ External burr removal
→ Smoothing roller
→ Water cooling device
→ Sizing machine
→ Saw cutting
→ Roller table after sawing
→ Steel pipe conveying
→ Collecting and packing
About Our Facility
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
