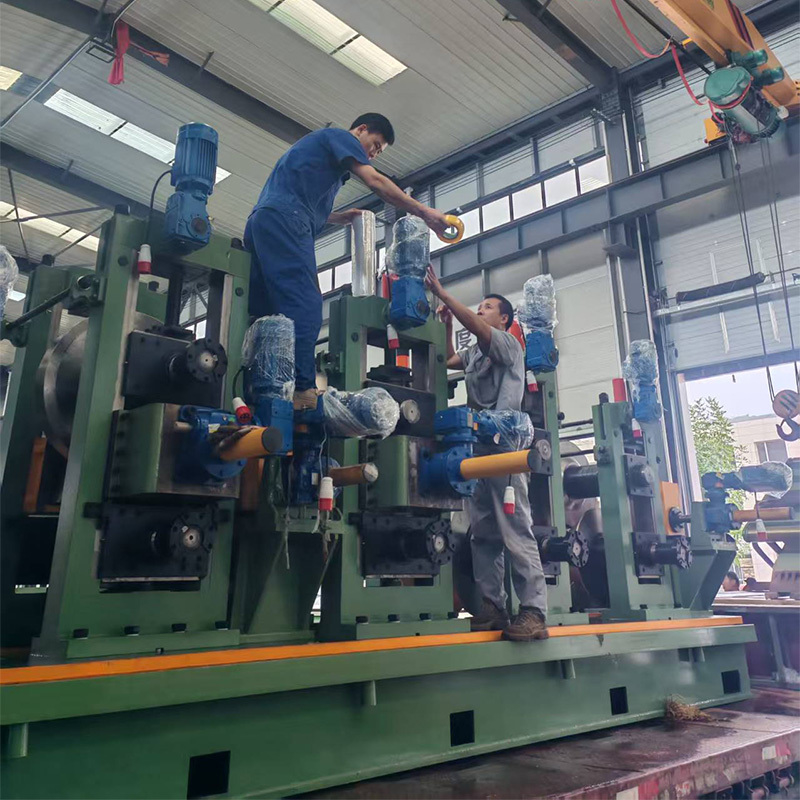

HF Automatic Tube Mill for 114.3mm Round Pipe

Name: HF Automatic Tube Mill for 114.3mm Round Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG114

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG114

Product Name:

HF Automatic Tube Mill For 114.3mm Round Pipe

Mill Name:

Thickness 3.38mm-6.02mm Round Automatic Tube Mill Dia 114.3mm Include Rollers

Pipe Material:

Carbon Steel

After-sales Service Provided:

On-Site Engineers

Voltage:

380V

Power(w):

1500KW

Speed:

20 - 60m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

114.3mm

Warranty:

1 Year

Keywords:

Automatic Tube Mill

Key Word:

HF Automatic Tube Mill

Highlight:

High Light

Highlight:

automatic tube mill for 114.3mm pipe

HF automatic tube mill machine

round pipe tube mill with warranty

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

HF Automatic Tube Mill for 114.3mm Round Pipe

Product Specifications

Attribute	Value
Mill Name	Thickness 3.38mm-6.02mm Round Automatic Tube Mill Dia 114.3mm Include Rollers
Pipe material	Carbon Steel
After-sales service provided	On-Site Engineers
Voltage	380V
Power	1500KW
Speed	20 - 60m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	114.3mm
Warranty	1 year

Product Description

This automatic tube mill is designed to produce welded pipes of 33.4-114.3mm in diameter with wall thickness ranging from 3.38-6.02mm. Featuring an advanced roll pass design, the production line manufactures high-quality welded steel pipes with precision machining and assembly.

The HG114 production line incorporates a double-radius hole design, engineered to enhance operational characteristics, improve safety and production efficiency, while reducing roller costs.

Available Models

Serial No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Our Service

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair service
Comprehensive pre-sales and after-sales support including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Responsible for loading and shipping arrangements

HF Automatic Tube Mill for 114.3mm Round Pipe 4

HF Automatic Tube Mill for 114.3mm Round Pipe 5

HF Automatic Tube Mill for 114.3mm Round Pipe 6

FAQ :

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
