Square Pipe Production 21-63mm High Frequency Welded Pipe Mill

Name: Square Pipe Production 21-63mm High Frequency Welded Pipe Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill Steel ERW Pipe Mill / Tube Mill Production Line For Square Pipe Production

Running Speed:

Max.80m/min

Adjusting:

Worm Gearing

Pipe Diameter:

21 - 63mm

Max.Thickness For Square Pipe:

0.8-3.0mm

Welding Type:

High Frequency Welding

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Square Pipe Production Mill

High Frequency Welded Pipe Mill 21-63mm

Welded Square Pipe Manufacturing Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Steel ERW High Frequency Welded Pipe Mill For Square Pipe Production

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill Steel ERW Pipe Mill / Tube Mill Production Line For Square Pipe Production
Running speed	Max. 80m/min
Adjusting	Worm gearing
Pipe Diameter	21 - 63mm
Max. Thickness for Square Pipe	0.8-3.0mm
Welding Type	High Frequency Welding

Product Description

This High Frequency ERW Carbon Steel Pipe Mill is designed for precise fabrication of cold or hot-rolled coil, galvanized coil, and similar materials. The ERW Pipe Mill provides tight tolerance production of round, square, and rectangular pipes suitable for metallurgy, construction, transportation, machinery, and automobile industries.

The equipment produces high frequency straight seam welded pipes with specifications of OD10-OD660mm, WT1.0-WT22mm, including corresponding square pipes (8*8mm-520*520mm) and rectangle pipes. Rolling speed adjusts according to pipe diameter and wall thickness requirements.

Main Equipment Components

Production Line Workflow

Uncoiler
Shearing and butt-welder
Vertical-type accumulator
Forming, welding, sizing machine
Computer cutting saw
Run-out table

Scope of Supply

Machine installation & test running
Operator training
Reference documentation including foundation drawings, circuit diagrams, and operation instructions (in English)
Custom rollers designed according to buyer specifications

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sale services including workshop design and production output planning
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year) to optimize production
Complete project design for stainless steel/carbon steel pipe production
Loading and shipping coordination

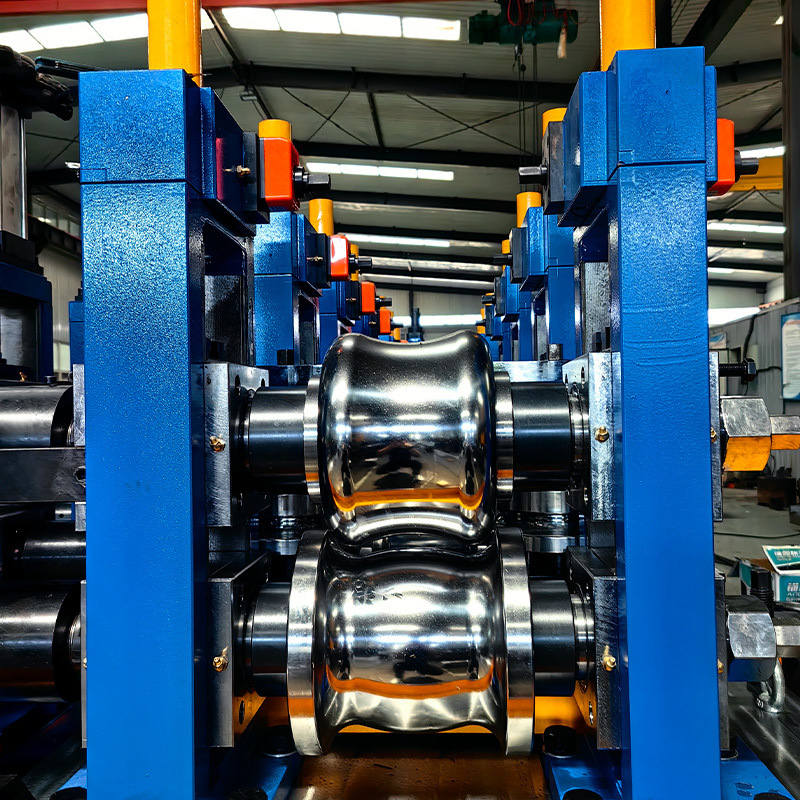

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 1

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 2

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 3

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 4

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 5

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 6

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 7

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 8

Square Pipe Production 21-63mm High Frequency Welded Pipe Mill 9

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
