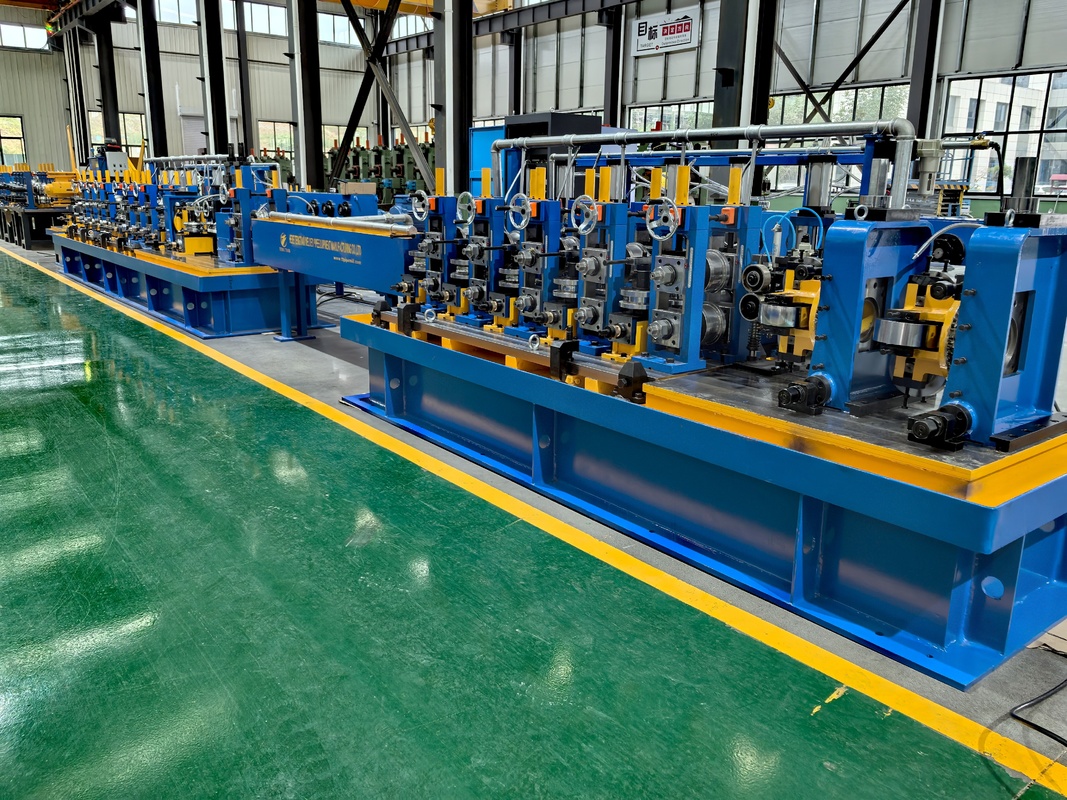

Precision Tube Mill High Speed PLC Control Automatic Tube Mill High Performance
Product Specifications
| Model |
50 |
| Feature |
High Speed and high precision |
| Pipe Types |
Round pipe, rectangular pipe, square pipe |
| Max Size |
12 - 53 mm |
| Thickness |
0.6 - 2.0 mm |
| Cutting Length |
4 - 6 m |
| Warranty |
One year |
Equipment Overview
The 50 high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. This high-precision welded pipe machine processes strip steel through uncoiling, forming, high-frequency welding, sizing, straightening, and cutting to produce various pipe styles. The system uses roll forming to cold-bend strip steel into round billets, with high-frequency induction heating creating seamless welds.
Key Specifications
- Steel Material: Q235, Q345 Low carbon steel
- Mechanical Properties: σb≤610Mpa, σs≤345MPa
- Steel Width: 60-160mm
- Round Pipe Size: 19-50mm
- Square Tube Size: 15x15-40x40mm
- Forming Speed: 20-100m/min
- Pipe Length: 6-12 meter
- Total Power: Approximately 400kw
- Factory Requirements: 80m length × 5m width (customizable)
| Pipe Material |
Low carbon steel and low alloy constructional steel |
| OD of Coil |
Φ 1800 mm |
| ID of Coil |
Φ 508 mm |
| Thickness of Strip |
0.6 - 2.0 mm |
| Weight of Strip |
Max 2.5 Ton |
| Strip Width |
40 - 164mm |
| Welding Thickness |
0.6 - 2.0 mm |
| Forming Speed |
40 - 120 m/min |
Production Process
- Strip steel to coil
- Uncoiler
- End straightener
- Flattener
- Shear welder
- Storage material unit
- Forming, welding, cooling
- Precise pipe diameter sizing
- Precise length sizing and cutting
- Inspection
- Packaging
Quality Assurance & Service
Our technical team provides on-site debugging, maintenance, and operational training. The equipment comes with a 12-month warranty from arrival date. Under normal operation, we provide free repair or replacement for any quality-related parts failure.
Factory Images
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
