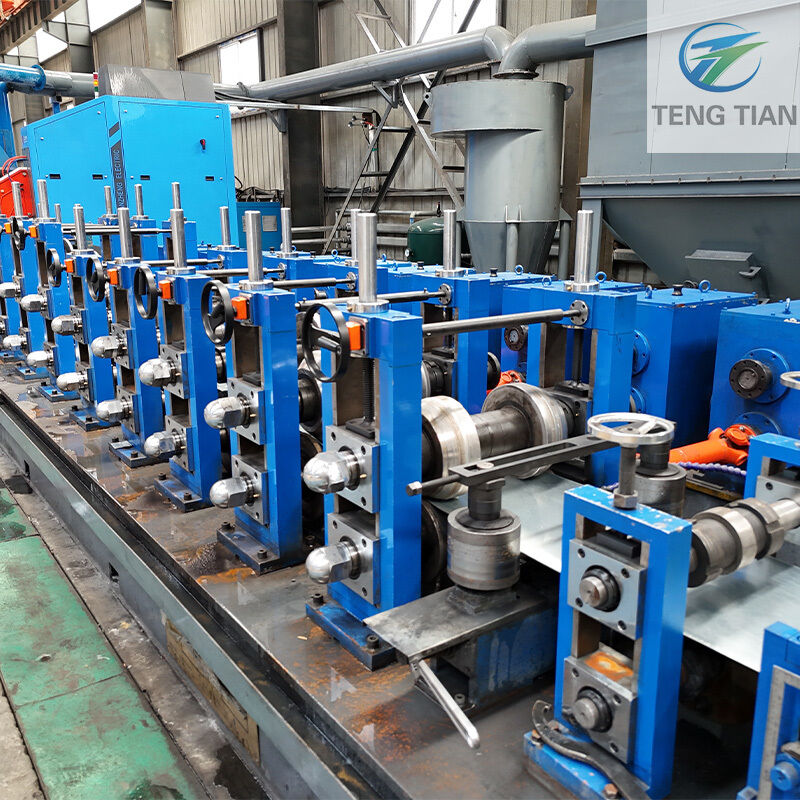

165mm Tube Mill Machine for Round Square Tubes 7mm Thick
Product Specifications
| Attribute |
Value |
| Product Name |
Tube Mill Machine |
| Production |
Round pipe, square tube, L T Z pipe |
| Warranty |
One year |
| Max Size |
165mm |
| Max Thickness |
7mm |
| Speed |
20-50m/min |
| Rollers |
Cr12mov |
Machine Overview
This tube mill machine is designed to produce high-quality welded steel pipes including round pipes, square pipes, and deformed pipes (L T Z pipes). Featuring advanced roll pass design, the production line delivers precision machining and high-quality assembly. Available in various configurations including normal, semi-automatic, full-automatic, and high-precision models to meet diverse customer requirements.
The carbon steel tube mill can produce pipes ranging from 76mm to 165mm in diameter with thickness from 3.0-7.0mm, including square and rectangular tubes. Custom designs are available to meet specific customer needs.
Technical Specifications
| Standard |
SPHC, Q235, Q345, Low carbon steel |
| Material |
Low carbon steel and low alloy constructional steel |
| Mechanical Properties |
σb≤520Mpa, σs≤365MPa |
| Pipe Size |
76-165mm |
| Pipe Thickness |
3.0-7.0mm |
| Pipe Length |
6-14 meter |
| Pipe-cutting Precision |
0-6mm |
| Workshop Requirements |
120x8m, H＞6m (crane to ground) |
| Power |
Approx. 800KW 380V/50Hz/3phases |
Available Models
| Model |
Size Range |
Thickness |
Production Speed |
| HG20 |
8~20mm |
0.3-1mm |
30-120m/min |
| HG32 |
12~32mm |
0.3-2.0mm |
30-120m/min |
| HG50 |
17~50mm |
0.8-2.5mm |
30-110m/min |
| HG60 |
17~60mm |
0.8-3mm |
30-100m/min |
| HG76 |
20~76mm |
1-3mm |
30-100m/min |
| HG89 |
30~89mm |
1-4mm |
30-80m/min |
| HG114 |
50~114mm |
1.5-5.0mm |
30-60m/min |
| HG165 |
76~165mm |
3-7mm |
30-50m/min |
| HG219 |
114~219mm |
4-8mm |
20-40m/min |
| HG273 |
165~273mm |
4-10mm |
15-30m/min |
| HG325 |
219~325mm |
4-12mm |
10-30m/min |
| HG426 |
219~426mm |
4-16mm |
8-25m/min |
| HG508 |
273~508mm |
4-20mm |
8-20m/min |
Production Process
- Strip steel to coil
- Uncoiler
- Shear welder
- Storage material unit
- Forming, welding, cooling, accurate pipe diameter sizing
- Accurate pipe length sizing and cutting
- Inspection
- Packaging
Quality Assurance & Service
Our technical service personnel will be on-site for equipment installation, debugging, and maintenance. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that prevent normal operation.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
