High-Frequency Welded Steel Pipe Production Line 25-50mm

Name: High-Frequency Welded Steel Pipe Production Line 25-50mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG50

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG50

Product Name:

High-Frequency Welded Steel Pipe Production Line 25-50mm

Trip Width:

100-160mm

Strip Thickness:

0.4-1.5mm

Coil Weight:

1.5 Ton

Round:

25mm-50mm

Square:

20*20mm-40*40mm

Welding Speed:

Max 100m/min

Fixed Cutting Length:

4-12m

Producting Period:

3 Months

Highlight:

High Light

Highlight:

High-Frequency Welded Steel Pipe Machine 25-50mm

Steel Pipe Production Line with Welding

25-50mm Steel Pipe Manufacturing Equipment

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

3 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

High-Frequency Welded Steel Pipe Production Line 25-50mm

Product Specifications

Attribute	Value
Strip Width	100-160mm
Strip Thickness	0.4-1.5mm
Coil Weight	1.5 Ton
Round Pipe Range	25mm-50mm
Square Pipe Range	2020mm-4040mm
Welding Speed	Max 100m/min
Fixed Cutting Length	4-12m
Production Period	3 months

Product Overview

The HG50 High-Frequency Welded Pipe Production Line is engineered to manufacture precision welded pipes including round pipes (25mm-50mm, thickness 0.4-1.5mm), square pipes (20*20mm-40*40mm, thickness 0.4-1.5mm), and corresponding deformed pipes. Featuring advanced roll pass design, this production line delivers superior quality machining and high-precision assembly.

Technical Specifications

Material Specifications:
- Conforms to YB189-64 standard
- Material: Low carbon steel and low alloy constructional steel
- Mechanical properties: σb≤520Mpa, σs≤365MPa
- Strip Width: 100-160mm
- Strip Thickness: 0.4-1.5mm
- Coil Dimensions: Inner φ480-φ520mm, Outer φ1000-φ1800mm
- Coil Weight: ≤1.5T
Welded Pipe Specifications:
- Round pipe: 25mm-50mm, 0.4-1.5mm
- Square pipe: 20*20mm-40*40mm, 0.4-1.5mm
- Fixed Cutting length: 4-12m
- Pipe-cutting Precision: 0-3mm
- Forming Speed: 30-100m/min

Production Process

Coil Loading
Uncoiling
Cutting and Welding
Horizontal Spiral Accumulator
Forming, HF welding, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Packing
Storage

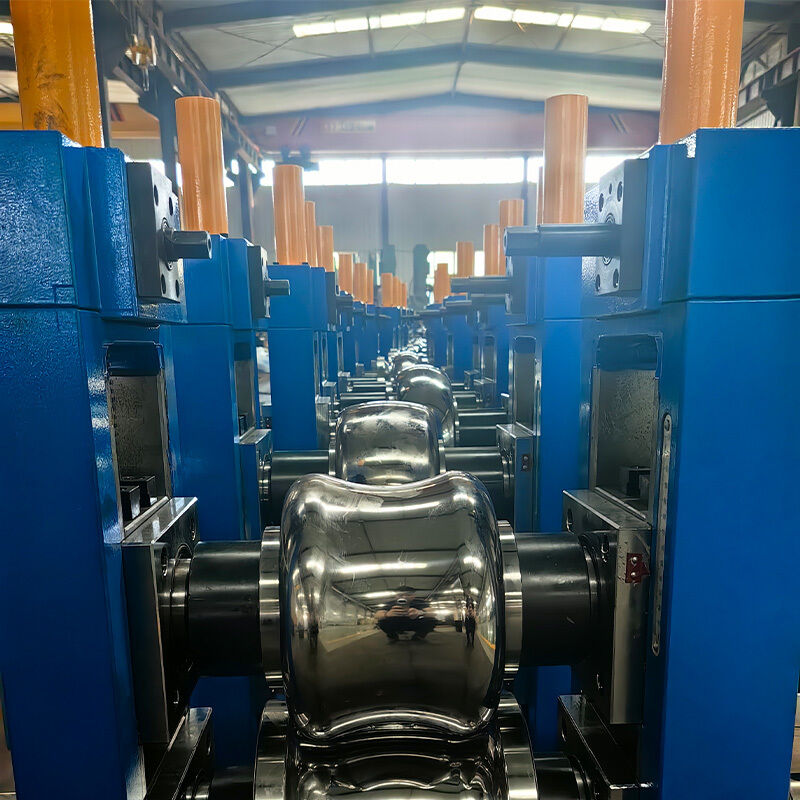

High-Frequency Welded Steel Pipe Production Line 25-50mm 1

Main Components

No.	Name	Quantity	Unit
1	Uncoiler (double cone)	1	piece
2	Automatic shear and welder	1	piece
3	Spiral accumulator Dia 3.5M	1	piece
4	Forming and Sizing Mill	1	piece
5	Cold saw	1	set
6	Roll Table, Bench & Simple Packing	18 m	set
7	150KW High Frequency solid-state Welder	1	set

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce costs
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements

High-Frequency Welded Steel Pipe Production Line 25-50mm 6

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
