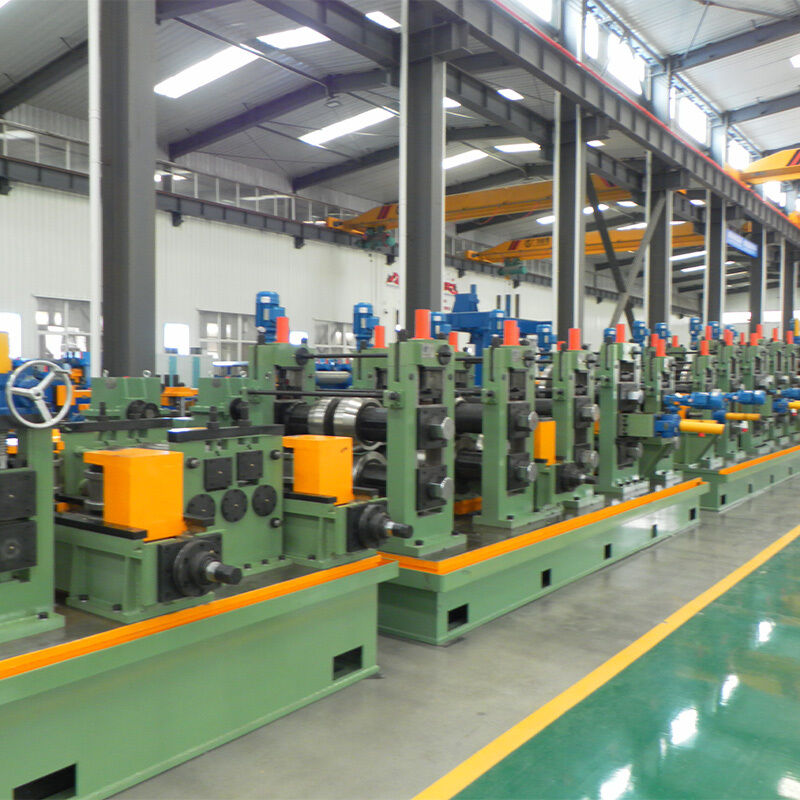

165mm Carbon Steel High Frequency Welded Pipe Mill
Product Specifications
| Attribute |
Value |
| Product Name |
High Frequency Welded Pipe Mill 165mm Carbon Steel Round Pipe |
| Pipe Material |
HRC, CRC |
| Production Speed |
20-80m/min |
| Product Size |
76-165mm |
| Pipe Shape |
Square, Rectangular, LTZ |
| Color |
Customized |
Tube Mill Description
This quick change tube mill produces round, square, rectangular, and LTZ profile pipes. Featuring a rapid roller change design with two machine beds (one operational, one prepared), it enables fast size changes to minimize downtime. The system can also produce open cold bend steel sections (U, C profiles) with infinitely adjustable width and height.
Technical Parameters
| Parameter |
Specification |
| Steel Material |
Q235, Q345 Low Carbon Steel |
| Mechanical Properties |
σb≤610Mpa, σs≤345MPa |
| Steel Width |
120-480mm |
| Pipe Thickness |
1.0-4.0mm |
| Square Tube Size |
40x40-120x120mm |
| Pipe Length |
6-12 meters |
| Factory Requirements |
100m length × 6m width (custom layouts available) |
Production Process
Coil loading → Uncoiler → Shear & Welder → Horizontal Accumulator → Forming → HF Welder → Scraper → Cooling → Sizing → Turkey Head → Cutting Saw → Packing → Storage
Roller Specifications
| Material |
Cr12 or SKD11 |
| Treatment Hardness |
HRC 58-62 |
Included Documentation
- Instruction Manual
- Packing List
- Layout Drawing
- Foundation Drawing
- Electrical Diagram
- Vulnerable Parts Drawing
Warranty & Support
Our technical team provides on-site operation guidance, debugging, and maintenance training after machine installation. The complete system comes with a 1-year warranty.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
