High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness

Name: High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

High Frequency Welded Pipe Mill 25-76mm Diameter 4-10mm Thickness

Pipe Diameter:

25-76mm

Product Speed:

Max 50m/min

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Cutting Saw:

Friction Saw Cutting

Worm Gearing:

Max.80m/min

Pipe Thickness:

4.0-10.0mm

Keywords:

ERW Pipe Mill

Highlight:

High Light

Highlight:

ERW pipe mill 25-76mm diameter

welded pipe mill 4-10mm thickness

high frequency ERW pipe machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union,

Supply Ability:

50 set per year

Product Description

High Frequency Welded Pipe Mill 25-76mm Diameter 4-10mm Thickness

Key Specifications

Pipe Diameter: 25-76mm
Pipe Thickness: 4.0-10.0mm
Max Speed: 50m/min

Materials: Carbon steel, Stainless steel, Low alloy steel
Cutting Saw: Friction Saw Cutting
Worm Gearing: Max. 80m/min

Main Types for Welded Pipe Roll Forming Machine

Model	Wall Thickness	Pipe Diameter	Round Pipe (OD)	Square Pipe	Rectangular Pipe
Machine HG-32	0.4-2.5mm	10-45mm	Max. 45mm, Min. 10mm	Max. 35×35mm, Min. 10×10mm	Max. 30×40mm, Min. 10×10mm
Machine HG-50	0.4-2.5mm	10-45mm	Max. 45mm, Min. 10mm	Max. 35×35mm, Min. 10×10mm	Max. 30×40mm, Min. 10×10mm
Machine HG-76	0.4-2.5mm	10-45mm	Max. 45mm, Min. 10mm	Max. 35×35mm, Min. 10×10mm	Max. 30×40mm, Min. 10×10mm
Machine HG-127	0.4-2.5mm	10-45mm	Max. 45mm, Min. 10mm	Max. 35×35mm, Min. 10×10mm	Max. 30×40mm, Min. 10×10mm

ERW Tube Mill Other Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20

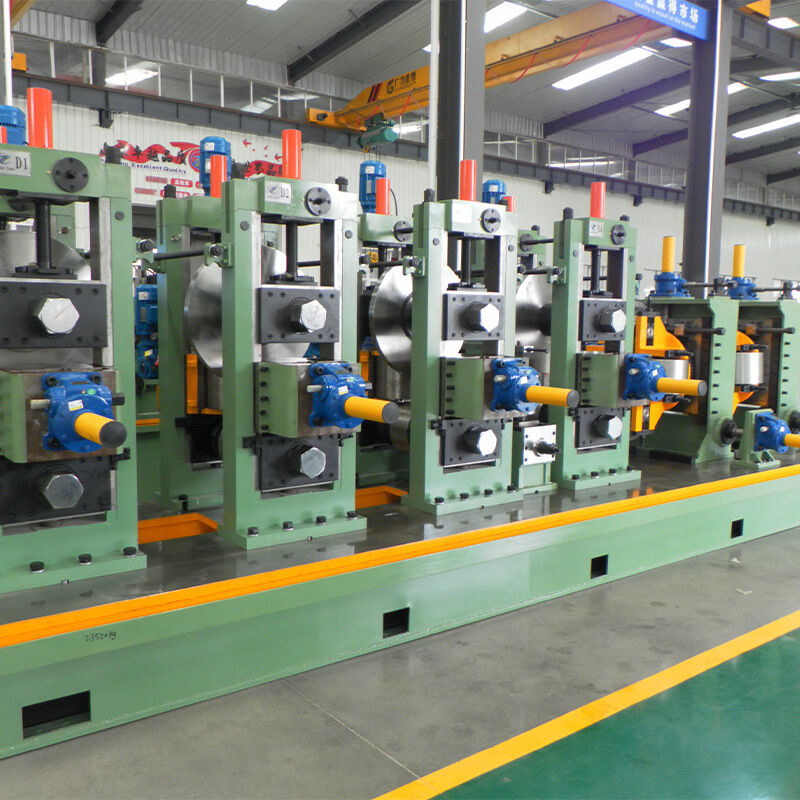

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 0

Our Services

Quality Assurance

We shall be responsible for quality problems resulting from design and manufacture for one year after successful installation and debugging. All expenses for replacing parts and components (excluding human factors and vulnerable components) shall be covered by us.

Debugging

Factory will send 1-2 technical engineers for installation and testing operation
The site, equipment foundation, and cool constructions are the buyer's responsibility according to equipment material provided by supplier
The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector

Buyer Preparation Notes

Machinery device location (length × width)
Power supply: Main power to equipment control bench, unit position
Air feed: Air compressor (1.5 cubic meters/minutes)
Water supply: Water source to machine station

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 1

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 2

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 3

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 5

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

High Frequency ERW Pipe Mill 25-76mm Diameter 4-10mm Thickness 8

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
