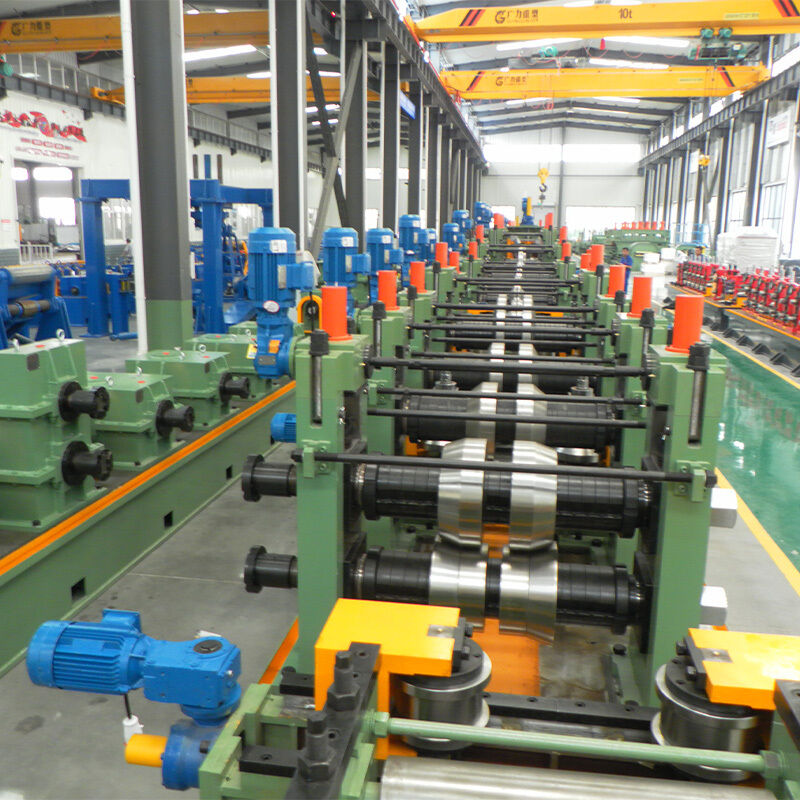

0.3-1mm Thickness ERW Welding Pipe Mill 8-20mm Diameter
Product Specifications
| Attribute |
Value |
| Product Name |
Steel ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line |
| Mold |
8SET |
| Warranty |
1 Year |
| Pipe Diameter |
8-20mm |
| Thickness |
0.3-1mm |
| Speed |
30-120m/min |
| Raw Material |
Carbon Steel |
Product Description
The HG20 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 10~32mm in diameter with wall thickness of 0.5~1.5mm, as well as square, rectangular, and deformed pipes of corresponding sizes. This production line incorporates innovative design and advanced technology for convenient operation and maintenance, achieving international leading standards.
Key Features
- Material Compatibility: Processes hot rolled or cold rolled steel strip (low carbon steel and low alloy constructional steel with δs≤345Mpa, δb≤610Mpa)
- Processing Range: Round pipes Φ10-Φ32mm; Square/Rectangular pipes 10x10-25x25mm
- Thickness Capacity: Round pipes 0.5-1.5mm; Square/Rectangular pipes 0.5-1.0mm
- Installed Capacity: 200KVA
- Water Consumption: 20m³/h
- Welding Technology: Solid-state high-frequency welder (1KW)
- Workshop Requirements: 30-50m (L) × 12m (W) × 5m (H)
- Forming Speed: 30-120m/min
Technical Specifications
| Model |
Diameter (mm) |
Thickness (mm) |
Speed (m/min) |
Main Power (kw) |
HF Welder (KW) |
Area (m²) |
| HG32 |
10-32 |
0.4-1.5 |
30-100 |
250 |
100 |
12x100 |
| HG50 |
12-50 |
0.6-2.5 |
30-90 |
300 |
150 |
12x100 |
| HG76 |
12-76 |
1-3 |
30-90 |
320 |
200 |
12x100 |
| HG89 |
32-89 |
1-4 |
30-80 |
350 |
300 |
12x100 |
| HG114 |
45-114 |
1.5-5.0 |
30-60 |
400 |
300 |
12x100 |
| HG165 |
60-165 |
3-7 |
30-50 |
600 |
400 |
12x100 |
| HG219 |
114-219 |
4-8 |
20-40 |
800 |
500 |
15x150 |
| HG273 |
114-273 |
4-10 |
15-30 |
1000 |
600 |
18x160 |
| HG325 |
165-325 |
4-10 |
10-30 |
1200 |
600 |
12x100 |
| HG426 |
165-426 |
4-12.7 |
8-25 |
1400 |
800 |
12x100 |
| HG508 |
219-508 |
4-16 |
8-20 |
2000 |
1000 |
12x100 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
