High Frequency Welding Square Tube Mill 120m/Min
| Production Name |
Color Blue Square Pipe Mill 120m/Min Speed High Frequency Welding Square Tube Mill |
| Pipe Shape |
Round, Square |
| Pipe Diameter |
16 - 76 mm |
| Thickness |
0.7 - 2.5 mm |
| Color |
Blue and white |
| Speed |
30 - 120 m/min |
| Material |
Galvanized steel |
Product Description

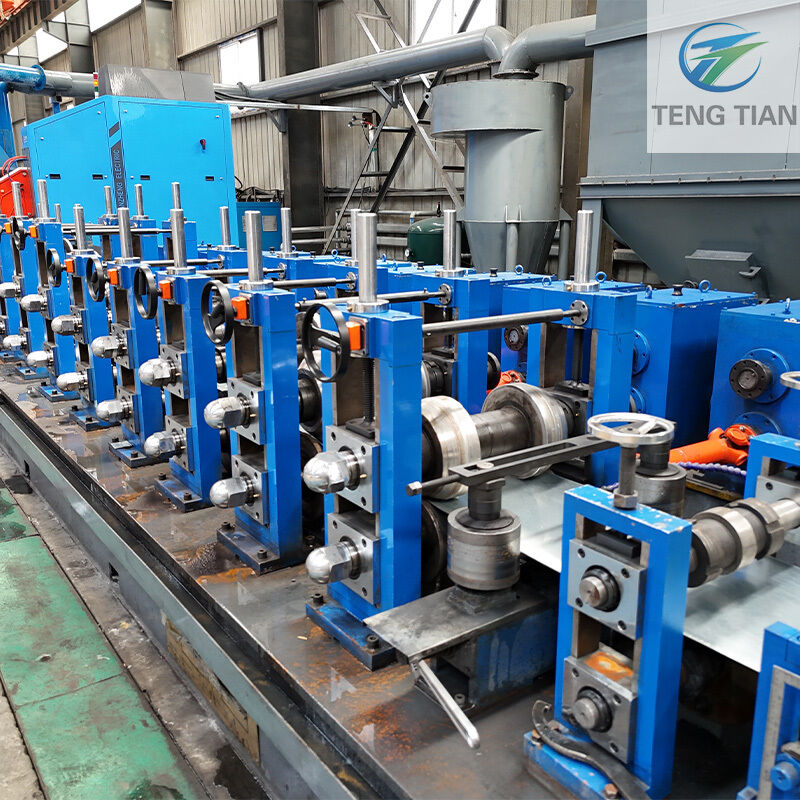

The Blue High Frequency Welding Square Tube Mill is a specialized straight seam welded pipe machine distinguished by its advanced welding technology. This 120m/min fast change roller mill combines international pipe-making expertise with innovative domestic design for optimal performance.
Key Features
- High-speed operation up to 120 meters per minute
- Fast change roller system for efficient production
- Capable of producing both round and square pipes
- Handles galvanized steel material with precision
- Compact and economical design without compromising quality
Technical Specifications
Material Specifications
- Conforms to YB189-64 standard
- Material: Low carbon steel and low alloy constructional steel
- Mechanical properties: σb≤380Mpa, σs≤275MPa
- Strip width: 50～190mm
- Strip thickness: 0.7～2.0mm
- Coil specifications: I.D Φ508mm, O.D φ1800mm, Weight ≤3T
Welded Pipe Specifications
| Round Pipe Diameter |
Φ16～φ60mm |
| Pipe Thickness |
0.7-2.0mm |
| Finish Pipe Length |
4-6m |
| Cut Length Accuracy |
±2mm |
| Forming Speed |
40-120m/min |
Available Models
| Model |
Diameter Range |
Pipe Thickness |
Molding Speed |
Motor Power |
Mechanical Area |
| HG20 |
8-20MM |
0.3-1MM |
30-120 m/min |
55 KW |
7×50 m³ |
| HG32 |
12-32MM |
0.3-2.0MM |
30-120 m/min |
75 KW |
7×50 m³ |
| HG50 |
16-50MM |
0.8-2.5MM |
30-110 m/min |
110 KW |
7×60 m³ |
| HG60 |
20-60MM |
0.8-3MM |
30-100 m/min |
132 KW |
7×65 m³ |
| HG76 |
12-76MM |
1-3MM |
30-100 m/min |
320 KW |
8×80 m³ |
| HG89 |
32-89MM |
1-4MM |
30-80 m/min |
350 KW |
8×80 m³ |
Manufacturing Facility
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
