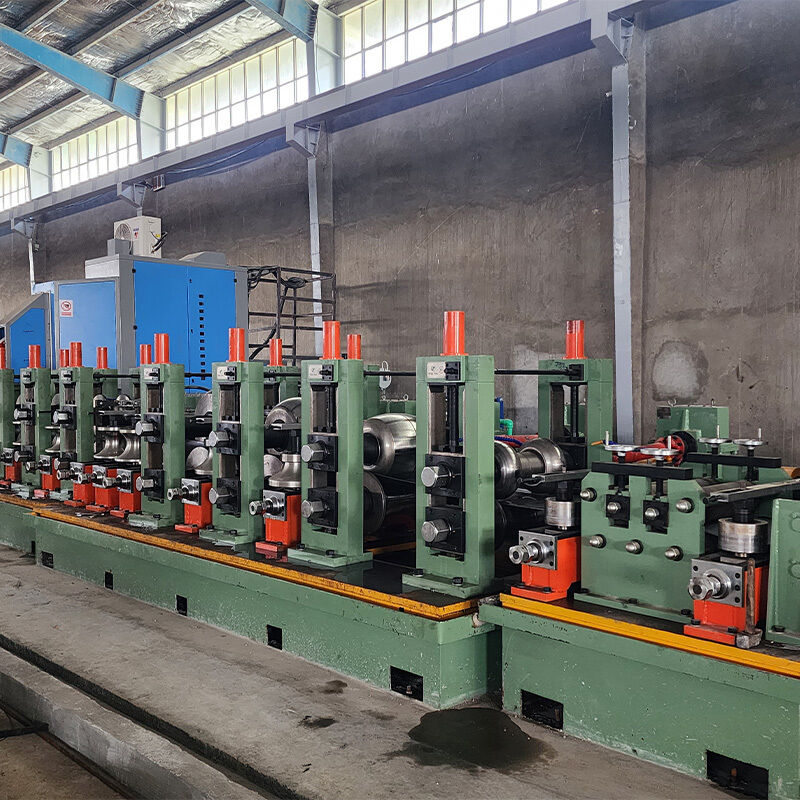

Carbon Steel Tube Mill Machine 60-140mm Round Pipe
  • Carbon Steel Tube Mill Machine 60-140mm Round Pipe
  • Carbon Steel Tube Mill Machine 60-140mm Round Pipe

Carbon Steel Tube Mill Machine 60-140mm Round Pipe

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG140
Detail Information
Place of Origin:
Hebei,CHINA
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG140
Production Name:
Carbon Steel Tube Mill Machine 60-140mm Round Pipe
Material:
HRC,CRC,Galvanised Steel
Pipe Size:
60-140mm
Pipe Thickness:
2.0-6.0mm
Welding Type:
High Frequency Welding
Pipe Shape:
Round,square,rectangular
Roller Materoal:
Cr12/SKD11
Key Words:
Tube Mill Machine
Highlight:

High Light

Highlight:

carbon steel tube mill machine

,

round pipe tube mill 60-140mm

,

tube mill machine for carbon steel

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
150 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
30 Sets
Product Description
Carbon Steel Tube Mill Machine 60-140mm Round Pipe
Product Overview

This Carbon Steel Round Pipe/Tube Mill Machine with CE ISO 9001 Certification is designed for manufacturing welded steel pipes. Incorporating advanced pipe-making technology from domestic and international sources, it produces tubes of various sizes and shapes with precision.

Key Specifications
Material: HRC, CRC, Galvanized Steel
Pipe Size Range: 60-140mm
Pipe Thickness: 2.0-6.0mm
Welding Type: High Frequency Welding
Pipe Shapes: Round, Square, Rectangular
Roller Material: Cr12/SKD11
Material Specifications
Standard Conforming to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤380Mpa, σs≤275MPa
Strip Width 180-420mm
Strip Thickness 2.0-6.0mm
I.D of Coils Φ508mm
O.D of Coils φ2000mm
Coil Weight ≤5T

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 0

Welded Pipe Specifications
Round Tube Size 60-140mm
Pipe Thickness 2.0-6.0mm
Finish Pipe Length 4-8m
Cut Length Accuracy ±2mm
Forming Speed 20-80m/min
Workshop Requirements

8m wide, 120m long, with at least 6m clearance from ceiling rails to ground.

ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 1

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 2 Carbon Steel Tube Mill Machine 60-140mm Round Pipe 3 Carbon Steel Tube Mill Machine 60-140mm Round Pipe 4 Carbon Steel Tube Mill Machine 60-140mm Round Pipe 5

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 6

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 7

Carbon Steel Tube Mill Machine 60-140mm Round Pipe 8



Carbon Steel Tube Mill Machine 60-140mm Round Pipe 9

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
