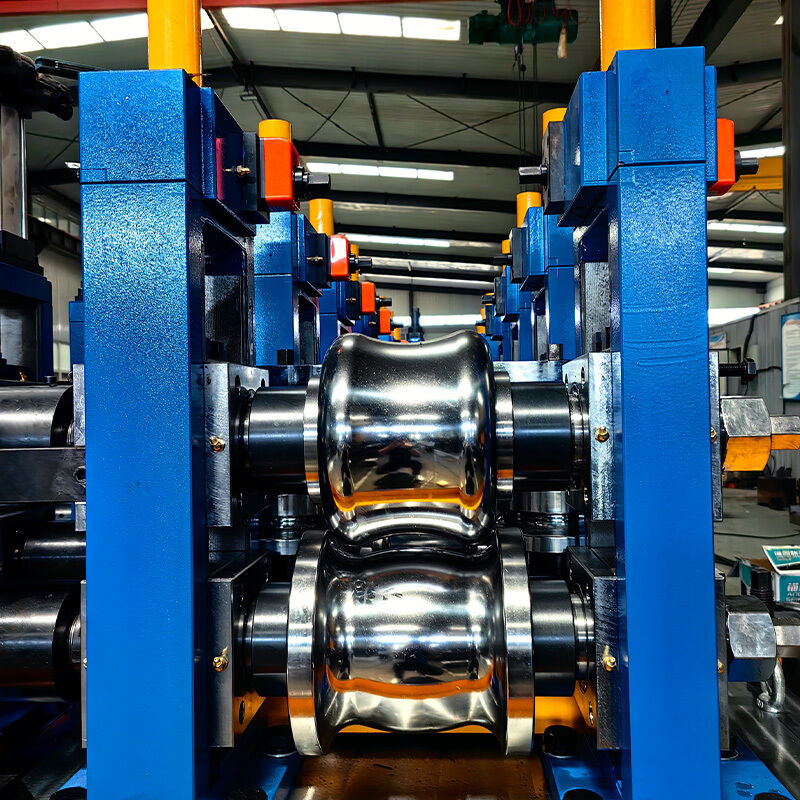

ERW Pipe Mill Steel Pipe Making Machine 21-63mm Diameter
Product Specifications
| Attribute |
Value |
| Adjustment Type |
By turbine worm |
| Worm Gearing |
Max. 80m/min |
| Cutting Saw |
Friction Saw Cutting |
| Pipe Diameter |
21 - 63mm |
| Max. Thickness for Square Pipe |
0.8-3.0mm |
| Roller Material |
Cr12/SKD11 |
Product Overview
Reliantt offers 30 standard models covering diameters from 8mm (3/8") to 273mm (10") with wall thickness from 0.3mm to 12.7mm. Customized machines are available.
Suitable Materials: Carbon Steel Coil, Galvanized Steel Coil
Applications
- Water pipes
- Heating pipes
- Low-pressure process pipelines
- Fire fighting pipelines
- Sewage pipes
- Steel scaffolding pipes
- Wire and cable protection pipes
- Structural support pipes
- Industrial steel pipes
- Decoration pipes
- Oil & gas pipes
Production Process Flow
Slit Coil → Un-Coiler → Shearing And Butter Welder → Storage/Accumulator → Forming → Welding → Cooling → Sizing → Cutting Saw → Run Out Table → Finishing → Pipe Collecting and Packaging
Basic Components & Work Flow
Uncoiler → Shearing and butt-welder → Vertical-type accumulator → Forming, welding, sizing machine → Computer cutting saw → Run-out table
Standard Models Available
| Model |
Diameter Range |
Pipe Thickness |
Line Speed (m/min) |
| HG20 |
8-25.4mm |
0.3-1.2mm |
120 |
| HG32 |
10-32mm |
1.4-1.5mm |
120 |
| HG50 |
16-76mm |
0.7-2.5mm |
30-120 |
| HG76 |
25-76mm |
1-4mm |
30-100 |
| HG89 |
32-89mm |
1-4.5mm |
30-80 |
| HG114 |
45-114mm |
1.5-5.0mm |
30-60 |
Scope of Supply
- Machine installation & test running
- Operator training
- Technical documentation (English)
- Custom rollers available per buyer specifications
Technical Specifications
- Material: Cr12
- Raw Material: Low-carbon steel
- Steel Strip Thickness: 1.0-3.5mm
- Steel Strip Width: 60-240mm
- Coil Dimensions: Φ450-Φ550mm (I.D.), Φ800-Φ1200mm (O.D.)
- Max Coil Weight: 2500kg
Our Services
- On-site installation and operator training
- 1-year warranty with lifetime technical support
- Pre-sales consultation including workshop design
- Option for extended technical support (months to 1 year)
- Complete project design services
- Shipping and loading assistance
Note: Buyer is responsible for foundation construction, utilities connection, and consumables. Sea-worthy packaging included with 45-day delivery after payment.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
