Automatic Tube Mill for Round and Square Pipes 1.5-3.0mm
Product Specifications
| Attribute |
Value |
| Model |
HG 90mm |
| Production |
Square pipe and round pipe |
| Feature |
Full automatic |
| Name |
Tube mill |
| Other pipe |
Square pipe and Rectangular pipe |
| Max size |
φ25～φ90 mm, 30X30-70X70mm |
| Thickness |
1.5-3.0mm |
| Length |
6-12m |
| Rollers |
Included |
Machine Overview

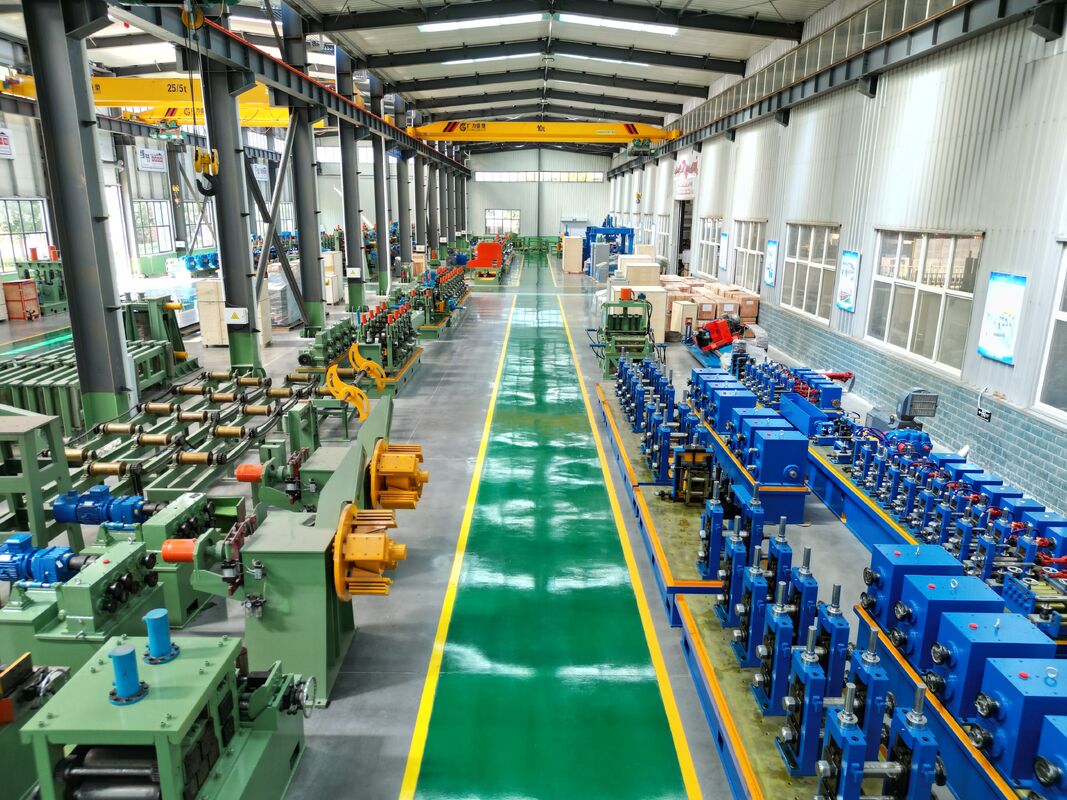

This automatic tube mill equipment is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring precision roll pass design, the production line delivers excellent machining quality and high assembly precision.
Technical Specifications
| Material Specifications |
| Standard |
SPHC, SPHT-2, SS 400, SS440, SS490 |
| Material |
Low carbon steel and low alloy constructional steel |
| Mechanical properties |
σb≤520Mpa, σs≤365MPa |
| Strip Width |
78-280mm |
| Strip Thickness |
1.5-3.0mm |
| Inner Diameter of Coils |
Φ508mm (buyer should confirm) |
| Outer Diameter of Coils |
Φ1300～φ1760mm (buyer should confirm) |
| Coil Weight |
≤30T |
| Pipe Specification |
| Pipe Diameter |
1) Round pipe: φ25-φ90mm
2) Square tube: 30X30-70X70mm |
| Length |
6m |
| Pipe-cutting Precision |
0-6mm |
| Forming Speed |
Max 80m/min (max size and thickness cannot reach max speed) |
Buyer-Supplied Requirements
- Work shop: 180x6m, H＞5m (crane to ground)
- Power: Approx. 450KW 380V/50Hz/3phases
- Circulation Cooling Water (whole system): Flow: 20T/h～30 T/h, Pool Volume: 30m³
- Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
- Cable: All cable outside of machine to be supplied by buyer after machine installation
Production Process
- Strip steel to coil
- Uncoiler
- End straightener
- Flattener
- Shear welder
- Storage material unit
- Forming, welding, cooling, accurate pipe diameter sizing
- Accurate pipe length sizing and cutting
- Inspection
- Package
Quality Assurance & Warranty
Our technical service personnel will be on-site for equipment installation, commissioning, and operator training. The warranty covers 12 months from equipment arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related component failures.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
