Precision Tube Mill for Square Pipe 200x200mm Low Noise

Name: Precision Tube Mill for Square Pipe 200x200mm Low Noise
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 200 x 200 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	200 x 200 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

200 x 200 mm

Product Name:

Precision Tube Mill For Square Pipe 200x200mm Low Noise

Model:

HG 200

Feature:

High Quality And High Precision

Other Pipe:

Round Pipe And Square Pipe And Rectangular Pipe

Max Size:

100 X 100 - 200 X 200 Mm

Thickness:

2 . 0 - 8 . 0 Mm

Length:

6 - 12 M

Rollers:

Include

Power(w):

1000kw

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

Precision Tube Mill for Square Pipe

200x200mm Precision Tube Mill

Low Noise Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision Tube Mill for Square Pipe 200x200mm Low Noise

Product Specifications

Attribute	Value
Model	HG 200
Feature	High quality and high precision
Pipe Types	Round pipe, square pipe, rectangular pipe
Max Size	100 x 100 - 200 x 200 mm
Thickness	2.0 - 8.0 mm
Length	6 - 12 m
Rollers	Included
Power	1000 kW

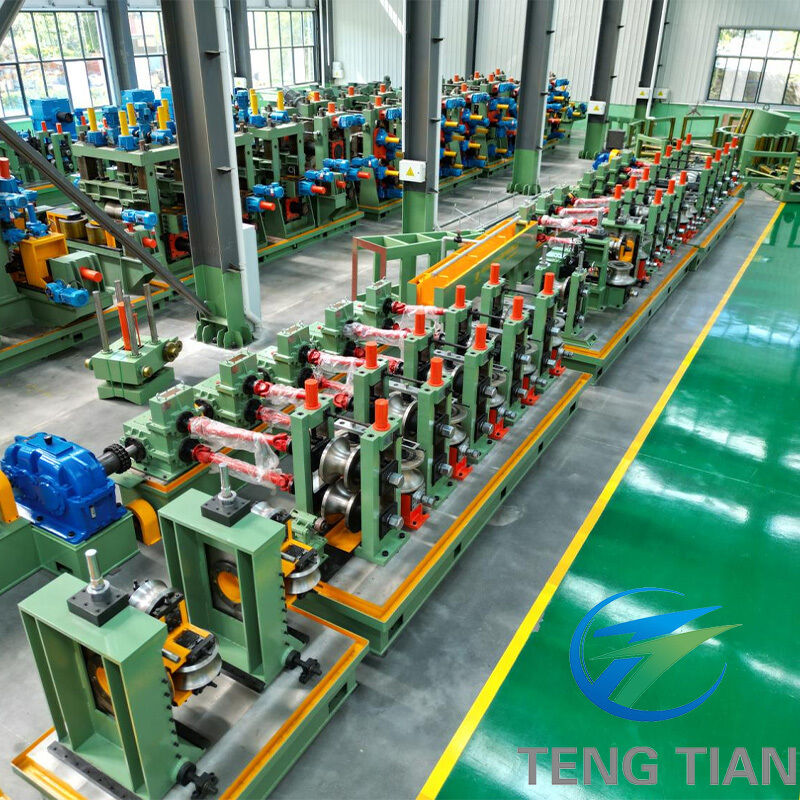

Precision Tube Mill for Square Pipe 200x200mm Low Noise 0

Product Overview

The 200 X 200 mm High Precision Square Pipe Milling Machine is designed for fast production of welded square tubes with dimensions ranging from 100 x 100 to 200 x 200 mm and wall thickness of 2.0 to 8.0 mm. This low noise precision tube mill features roll pass design for superior quality machining and high precision assembly.

Technical Specifications

Material Standards: Conforms to YB189-64 standard
Materials: Low carbon steel and low alloy constructional steel
Mechanical Properties: δs ≤ 345 Mpa, δb ≤ 610 Mpa
Strip Width: 400-800 mm
Strip Thickness: 2.0-8.0 mm
Coil Dimensions: Inner φ480-φ570 mm, Outer φ1000-φ1800 mm
Max Coil Weight: ≤ 18 T
Forming Speed: 10-50 m/min
Cutting Precision: 0-6 mm

Facility Requirements

Workshop: 60 x 6 m, Height >5m (with crane)
Power: 1212 KW, 380V/50Hz/3 phases
Cooling Water: Flow: 20-30 T/h, Pool Volume: 30 m³
Compressed Air: Flow: 5 m³/min, Pressure: 5-7 kg/cm²

Other Available Models

Precision Tube Mill for Square Pipe 200x200mm Low Noise 2

About Our Manufacturing

Precision Tube Mill for Square Pipe 200x200mm Low Noise 3

Precision Tube Mill for Square Pipe 200x200mm Low Noise 4

Precision Tube Mill for Square Pipe 200x200mm Low Noise 5

Precision Tube Mill for Square Pipe 200x200mm Low Noise 6
