High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

Name: High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW140
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW140

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW140

Product Name:

ERW Pipe Mill Machine With High Frequency Welding

Square Pipe:

25*25 - 110*110mm

Colour:

Blue

Cutting Saw:

Milling Saw

Forming Method:

FFX Forming Technology & Directly Forming

Running Speed:

Max.70m/min

Welding Type:

High Frequency Welding

Keywords:

ERW Pipe Mill Machine

Highlight:

High Light

Highlight:

High Frequency Welding ERW Tube Machine

API ERW Steel Pipe Production Line

ERW Mill Line Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

5months

Payment Terms:

Western Union

Supply Ability:

50 Sets/Year

Product Description

ERW Pipe Mill Machine with High Frequency Welding

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

Attribute	Value
Square Pipe	2525 - 110110mm
Colour	Blue
Cutting Saw	Milling Saw
Forming Method	FFX Forming Technology & Directly Forming
Running speed	Max.70m/min
Welding Type	High Frequency Welding

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

High Frequency High Precision Full Automatic ERW Pipe Mill Line Machine

This production line manufactures welded steel pipes of Φ32mm-Φ140mm with 1.0mm-5.0mm wall thickness, capable of producing square pipes from 25*25mm to 110*110mm. Incorporating advanced pipe-making technology from domestic and international sources, our innovative design offers both economic and practical advantages.

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

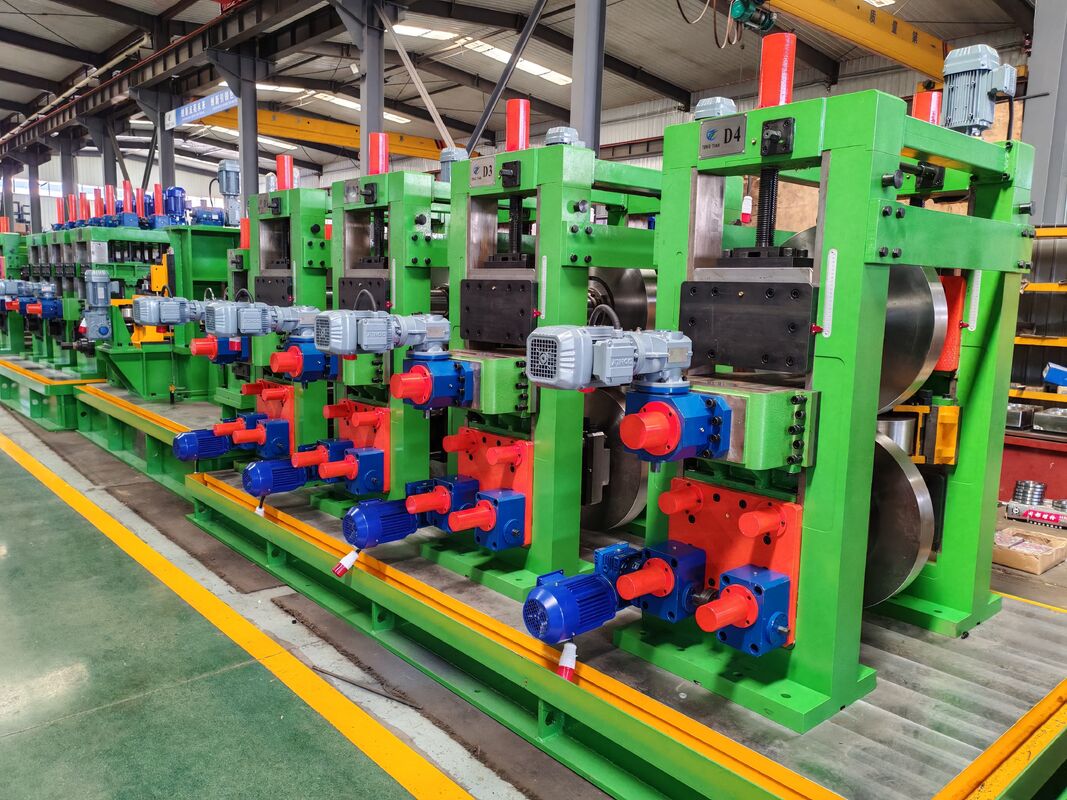

ERW Tube Mill & Pipe Mill Overview

Produces longitudinal weld seam tubes and pipes from steel strips of specific widths
Process begins with uncoiling and flattening slitted steel coils into strips
Forming machine with roller tooling shapes strips into round pipes
High frequency solid state welder joins the seams in the weld box
Sizing machine forms tubes to final dimensions before cutting and bundling

Product Advantages

High precision: Level roller jumps 0.01, frame/slide clearance ≤0.02, frame verticality ≤0.05, frame parallelism ≤0.1, diameter/roundness error ≤0.08
Japanese technology meets high accuracy requirements for international clients
Worm gear adjustment provides precise, energy-efficient operation
3D adjustable scraping system with ±20° rotation capability
Turkish head push square forming reduces mold weight while maintaining stability and uniform R angles
Nylon damping blocks minimize impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

Technical Specifications

Raw Material

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of steel strips	Φ508-Φ610mm
OD of steel strips	Φ800-Φ2000mm
Coiler weight	Max.4000kg

Production Range

Round Pipe	32-140mm (Thickness: 1.0-5.0mm)
Square Pipe	2525-110110mm (Thickness: 1.0-4.0mm)
Rectangular Pipe	2030-90120mm (Thickness: 1.0-4.0mm)

Additional Specifications

H.F. Welder	GGP300Kw Solid State High Frequency Welder
Line Speed	Max.70m/min
Tube Length	6-12m
Cutting Accuracy	±3mm
Electric installed capacity	Approx. 500KW
Size of whole line	About 80X9m

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair support
Comprehensive pre-sales and after-sales service including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements

High Frequency Welding API ERW Steel Tube Production Mill Line Pipe Making Machine
