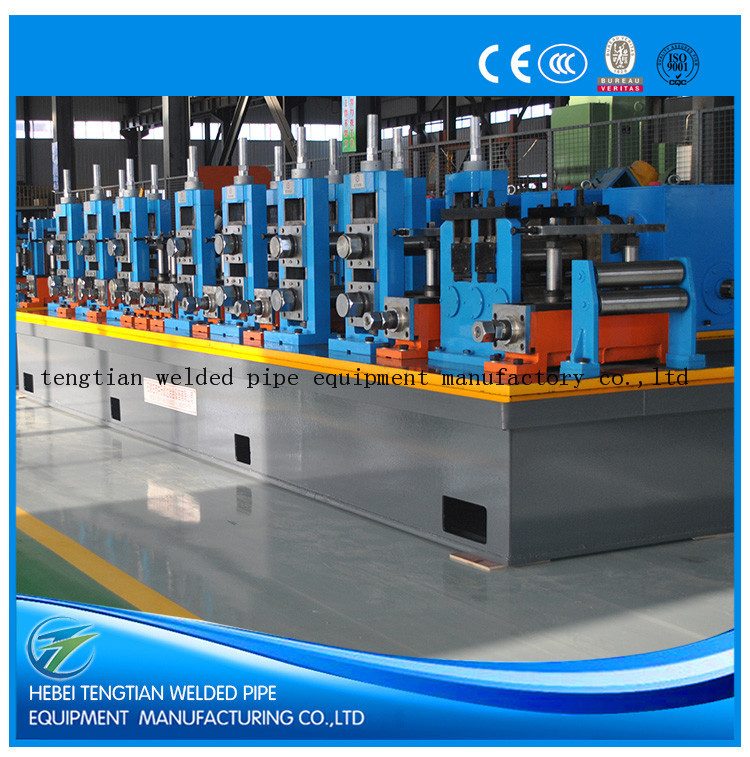

ERW HG140 Square Tube Mill with High Frequency Welding 80m/min

Name: ERW HG140 Square Tube Mill with High Frequency Welding 80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW140 Tube Mill
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	ERW140 Tube Mill

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

ERW140 Tube Mill

Mill Name:

ERW HG140 Stable Pipe Roller Foming Cold Saw Square Tube Mill

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

Max.80m/Min

Raw Material:

HRC, CRC, Galvanised Steel

Highlight:

High Light

Highlight:

square pipe making machine

tube mill line

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

ERW HG140 Stable Pipe Roller Forming Cold Saw Square Tube Mill

Key Attributes

Attribute	Value
Mill Name	ERW HG140 Stable Pipe Roller Forming Cold Saw Square Tube Mill
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Feature	High Precision; More Stable; High Speed
Customized	Machine Designing As Per Customer Requirement
Welding Speed	Max. 80m/Min
Raw Material	HRC, CRC, Galvanised Steel

Product Description

The ERW HG140 Stable Pipe Roller Forming Cold Saw Square Tube Mill is designed to produce welded pipes in diameters ranging from 48mm to 140mm with wall thicknesses of 1.5mm to 5.0mm, as well as corresponding square and rectangular pipes. These products are commonly used in metallurgy, construction, transportation, machinery, and vehicle industries.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Specifications

1. Raw Material: HRC, CRC, Galvanised Coil

2. Production Range:

Round Pipe: 48 - 140mm; Thickness: 1.5-5.0mm
Square Pipe: 40*40 - 110*110mm; Thickness: 1.5-4.0mm
Rectangular: 30*50 - 80*140mm; Thickness: 1.5-4.0mm

3. H.F. Welder: GGP400Kw Solid State

4. Line Speed: Max. 80m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±3mm

Model Specifications

No.	Model	Pipe Size	Thickness	Speed(m/min)	Capacity(KW)	HF(KW)	Area(LxW in Metres)
1	HG20	ø8 - ø20 mm	0.3 - 1.5 mm	30 - 150	210	100	40*12
2	HG32	ø10 - ø32 mm	0.4 - 2.0 mm	30 - 150	300	150	40*12
3	HG50	ø16 - ø50 mm	0.7 -2.5 mm	30 - 150	410	200	60*12
4	HG60	ø22 - ø60 mm	0.9 - 3.0 mm	30 - 150	410	200	60*12
5	HG76	Ø25 - ø76 mm	1 - 4 mm	30 - 120	580	300	80*16
6	HG89	Ø32 - ø89 mm	1 - 4.5 mm	30 - 100	660	300	100*16
7	HG114	Ø45 - ø114 mm	1.5 -5 mm	30 - 80	920	400	100*16
8	HG140	Ø50 - ø140 mm	1.5 - 5.5 mm	30 - 80	920	400	100*16
9	HG165	Ø60 - ø165 mm	2 - 6 mm	30 - 60	1100	500	100*16
10	HG219	Ø114 - ø219mm	3 - 8 mm	20 - 45	1400	600	150*16
11	HG273	Ø114 - ø273mm	4 - 12 mm	15 - 30	2100	800	160*18
12	HG325	Ø165 - ø325 mm	4 - 14 mm	10 - 30	2500	1000	200*24
13	HG426	Ø165 - ø426 mm	4 - 16 mm	8 - 25	2900	1200	250*24
14	HG508	Ø219 - ø508 mm	5 - 18 mm	5 - 18	3400	1600	300*24
15	HG610	Ø355 - ø610 mm	5 - 18 mm	5 - 18	3700	1600	300*24
16	HG760	Ø426 - ø760 mm	5 - 20 mm	5 - 20	4300	1800	300*24
