Full Automatic Tube Mill Machine Directly Forming PLC Control ISO9001

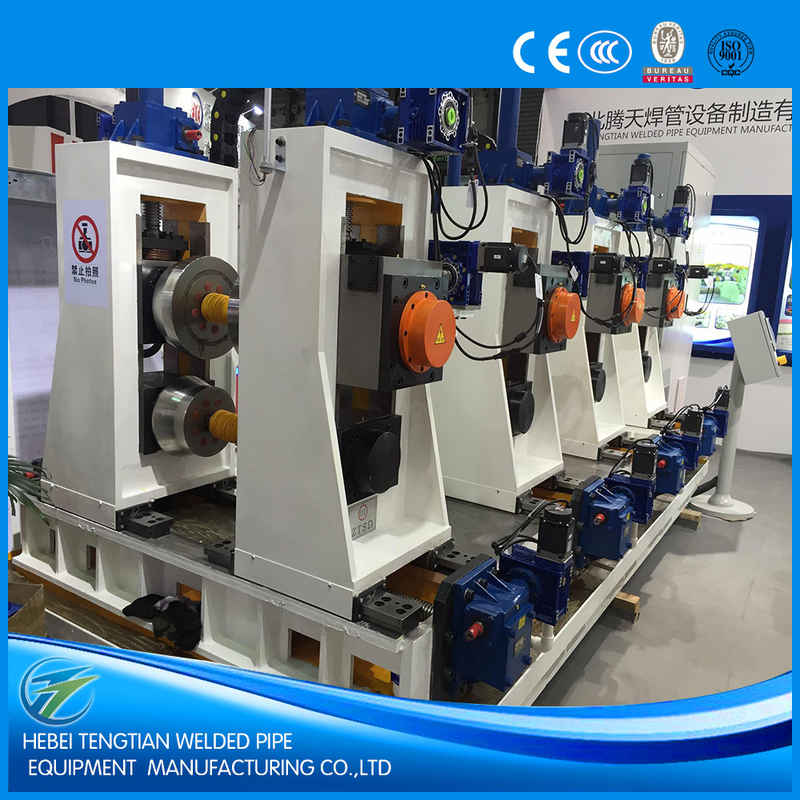

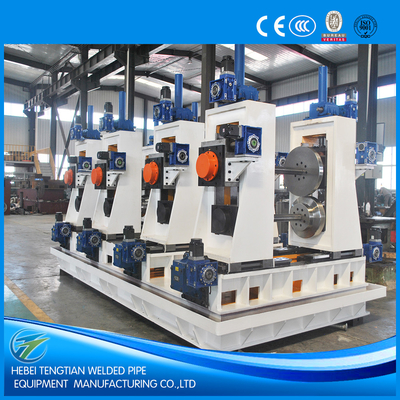

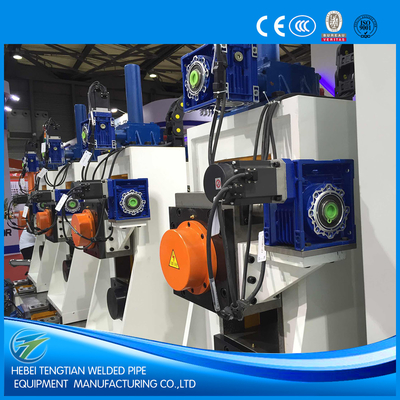

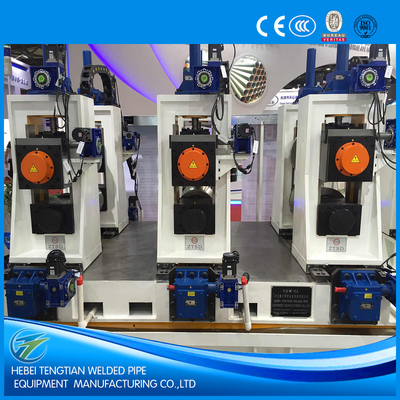

LW400 Full Automatic Directly Forming Tube Mill Tube Mill Machine

LW400 Full Automatic Directly Forming Tube Mill is designed to produce welded Square pipes in Dia. 30*30mm - 100*100mm with1.5mm -4.5mm in wall thickness, This line realize the Full Automatic Directly forming, one set of Roller can be produce all the sizes of Square & Rectangular Pipe, Whole Production Line controlled by PLC, the most advanced technology in the World.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

1. Raw Material: HRC, CRC, Galvanised Coil

2. Production Range:

Square Pipe: 30*30 - 100*100mm;

Rectangular: 30*40 - 80*120mm;

Thickness:    1.5-4.0mm

3. Line Spees: Max.100m/min

4. Tube Length: 4-12m

5. Pipe Dia. Accuracy: ±0.03mm

6. Cutting Accuracy: ±3mm

The Features of Full Directly Forming Technilogy:

This way is steel strip directly roll and bend into Square& Rectangle, then weld into finished pipe.

1)  Compare with round into square& rectangle forming way, this way is better for the shape at the edge of cross section, comparatively, semi diameter of inner arc is small, and the brim is flat, outlook is regular.

2)  And the whole line load is low ,especially the sizing parts.

3)  The width of steel strip is small about 2.4-3% than round into square & rectangle, it can save the consume of raw material.

4)  Adopts to Combined rollers, One Set of rollers to produce All the specifications of Square & rectangular tube, can be greatly reduced Roller spare reserves, Reduce 80% roller costs, which will help accelerate cash flow, shorten the product development cycle.

5) When changing Pipe Sizes, no need to change Rollers, just adjusting the Roller Position by Computer, Full Automatic .

As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other nearly 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.
