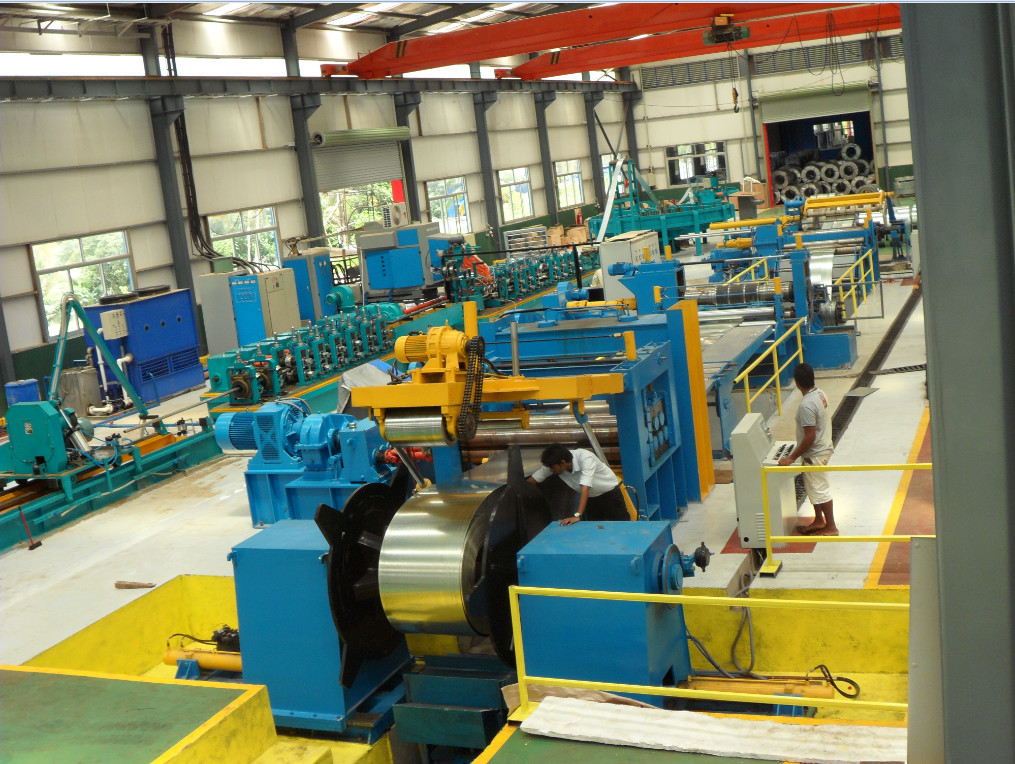

Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity
Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity
  • Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity
  • Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity
  • Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity
  • Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity

Full Automatic Steel Slitting Machine 120m/min 20 Tons Capacity

Product Details:
Place of Origin: CHINA
Brand Name: TENG TIAN
Certification: CE / ISO9001 / BV
Model Number: ZJ1600* (0.4-3.0)mm
Detail Information
Place of Origin:
CHINA
Brand Name:
TENG TIAN
Certification:
CE / ISO9001 / BV
Model Number:
ZJ1600* (0.4-3.0)mm
High Speed:
Max.120m/min
Coil Weight:
20 Tons
Material Of Coils:
Q235, Q345, HR/CR Carbon Steel, Galvanized Plate, PPGI Etc.
Slitting Strips:
Max.25 Strips
Product Name:
Full Automatic Steel Slitting Machine
Coil Weight(T):
10 / 15 / 20 / 30
Highlight:

High Light

Highlight:

sheet metal slitter machine

,

strip slitting machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export Standard packing, and fixed in container
Delivery Time:
3 months
Payment Terms:
T/T,L/C
Supply Ability:
50 sets / year
Product Description
Full Automatic Steel Slitting Machine Large Size Max 25 Strips ISO9001
Product Specifications
Attribute Value
High Speed Max.120m/min
Coil Weight 20 Tons
Material of coils Q235, Q345, HR/CR carbon steel, galvanized plate, PPGI etc.
Slitting Strips Max.25 Strips
Coil Weight(T) 10 / 15 / 20 / 30
Product Description
The Full Automatic High-Speed High-Precision Slitting Line is designed to slit steel strip coils into multiple narrow strips of specified dimensions. These slit strips are then rewound into coils for manufacturing welded pipes, cold-formed sections, and press work.
This production line features a rational layout, easy operation, and high automation level with excellent productivity. It can process various materials including CR and HR coils, silicon coils, stainless coils, colored coils, aluminum coils, galvanized coils, and painted coils.
Applications
Widely used in metal plate processing industries such as automotive, container manufacturing, household appliances, packaging, and construction materials.
Key Components
  • Coil car
  • Uncoiler
  • Slitter
  • Scrap winder
  • Shearer for cutting coil head/tail
  • Tension pad
  • Recoiler
  • Pendulum middle bridge
  • Pinch device
  • Steering device
Working Process
  1. Coil-loading
  2. Double-mandrel uncoiler
  3. Coil-head-feeding, press & shoveling
  4. Double-roller pinch feeding, five-roller leveling
  5. End-cutting
  6. Hole Accumulator(1)
  7. Strip-aligning
  8. Disc shearing
  9. Scrap reeling
  10. Hole Accumulator(2)
  11. Pre-separator/Tensioner/length-measuring roller
  12. Recoiling/Coils press & separator
  13. Coils-discharging
  14. Hydraulic control
  15. Electric control
Main Technical Parameters
Name/Model 2×1300 2×1600 3×1300 3×1600
Coil Thickness(mm) 0.3-2 0.3-2 0.5-3 0.5-3
Coil Width(mm) 600-1300 600-1600 600-1300 600-1600
Slitting Strips 2-20 2-20 2-15 2-15
Strip Width Precision(mm) ±0.1 ±0.1 ±0.15 ±0.15
Line Speed(m/min) 10-120 10-120 10-120 10-120
Coil Weight(T) 10 15 20 30
Coil I.D.(mm) Ф508 Ф508 Ф508,Ф610 Ф508,Ф610
Recoiling I.D.(mm) Ф508 Ф508 Ф508 Ф610
Main Shaft Dia.(mm) Ф220 Ф240 Ф240 Ф240
