Hot Dip Galvanized Welded Pipe Mill for Construction and Oil Gas

Name: Hot Dip Galvanized Welded Pipe Mill for Construction and Oil Gas
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LX-800
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	Teng Tian
Certification:	CE / ISO9001
Model Number:	LX-800

Detail Information

Place of Origin:

CHINA

Brand Name:

Teng Tian

Certification:

CE / ISO9001

Model Number:

LX-800

Product Name:

Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe

Application:

Construction; Oil And Gas; Water Supply

After-sales Servive:

Engineers Available To Service Machinery Overseas

Coil Width:

400 - 800mm

Thickness:

2-12mm

Certification:

CE / ISO9001

Roller:

Cr12/SKD11

Keywords:

Galvanized Welded Pipe Mill

Highlight:

High Light

Highlight:

seamless pipe mill

welded pipe production line

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

Exporting Standard packing, and fixed in container

Delivery Time:

6 MONTHS

Payment Terms:

T/T,L/C

Supply Ability:

20 SETS / YEAR

Product Description

Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded ERW Straight Seam Steel Pipe

Product Specifications

Attribute	Value
Application	Construction; Oil and Gas; Water Supply
After-sales Service	Engineers available to service machinery overseas
Coil Width	400 - 800mm
Thickness	2-12mm
Certification	CE / ISO9001
Roller	Cr12/SKD11

Product Description

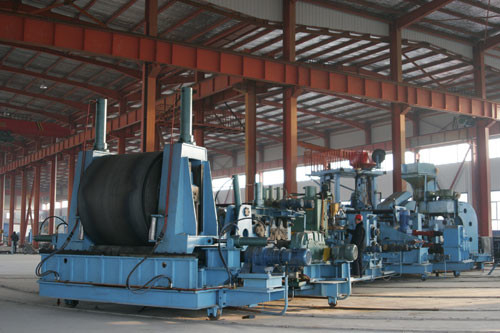

The LX-800 Spiral Weld Pipe Production Line is designed to roll low carbon steel/low alloy steel strip into tubes using a specific forming angle, then weld them into steel pipes using submerged arc welding technology. This system enables production of large diameter pipes from narrow steel strips.

Primary Applications

Liquid delivery: Water supply & drainage systems
Gas delivery: Coal gas, steam, and LPG transportation
Structural use: Piling pipes, structural pipes for bridges, docks, roads, and construction projects

Production Process Flow

Feeding → Uncoiling → Leveling → Shearing & Butt Welding → Rotary Shear → Edge Milling → Main Drive → Pre-bend & Guide Board → Forming → Inside Welding → Outside Welding → Cutting Off → Pull Out → End-facing & Beveling → Hydrotesting → Collection

Technical Specifications

Series	Min Pipe O.D. (mm)	Max Pipe O.D. (mm)	Min Thickness (mm)	Max Thickness (mm)	Coil Width (mm)	Max Production Capacity (ton/year)	Area (m²)
LH600	219-508	325-820	2-4	4-10	400-600	8000-12000	20×96
LH800	219-508	406-1220	2-4	4-12	400-800	9000-17000	20×96
LH1050	219-508	630-1620	2-4	4-14	450-1050	16000-23000	24×108
LH1250	406-610	820-1620	3-6	8-18	500-1250	26000-35000	24×108
LH1550	406-610	1420-3200+	3-6	12-25.4+	500-1550	36000-76000	26×125
LH2000	406-610	2020-3200+	4-6	20-25.4+	1000-2000	77000-93000	-
