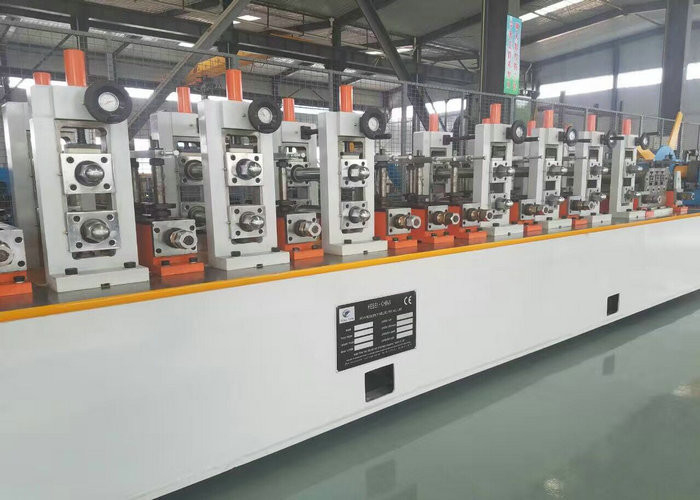

Precision Tube Mill for Galvanized Steel with 30-100m/min Speed

Name: Precision Tube Mill for Galvanized Steel with 30-100m/min Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG76

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG76

Product Name:

Precision Tube Mill Galvanised Steel Precision Tube Mill Rectangular Shape 100m / Min Mill Speed

Adjustment Type:

By Turbine Worm

Mill Speed:

30-100m/min

Pipe Shape:

Round,square,rectangular

Pipe Diameter:

25-76mm

Thickness:

1.0-4.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Galvanised Steel Precision Tube Mill Rectangular Shape 100m / Min Mill Speed

Product Overview

The HG76 high precision tube mill line is designed for manufacturing building materials pipes, widely used in construction, drainage, energy supply, and various profile applications. With precision reaching 0.05mm (0.08mm for HG76+ units), this equipment meets the most demanding accuracy requirements.

Key Specifications

Attribute	Value
Adjustment Type	By turbine worm
Mill Speed	30-100m/min
Pipe Shapes	Round, square, rectangular
Pipe Diameter	25-76mm
Thickness	1.0-4.0mm
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting

Product Advantages

High precision: Roller jumps (0.01mm), frame clearance (≤0.02mm), verticality (≤0.05mm), parallelism (≤0.1mm), diameter/roundness error (≤0.08mm)
Incorporates Japanese technology for superior accuracy
Worm gear adjustment system for precise, energy-efficient operation
3D adjustable scraping system with ±20° rotation capability
Turkish head push square system reduces mold weight while ensuring stable forming and uniform R angles
Nylon damping blocks minimize impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material: HRC, CRC, Galvanised Coil

Production Range:

Round Pipe: 25-76mm diameter, 1.0-4.0mm thickness
Square Pipe: 20×20 - 60×60mm, 1.0-4.0mm thickness
Rectangular: 20×40 - 40×80mm, 1.0-3.5mm thickness

Welder: GGP250Kw Solid State

Line Speed: Maximum 100m/min

Tube Length: 4-12m

Cutting Accuracy: ±3mm
