Steel Slitting Machine
>

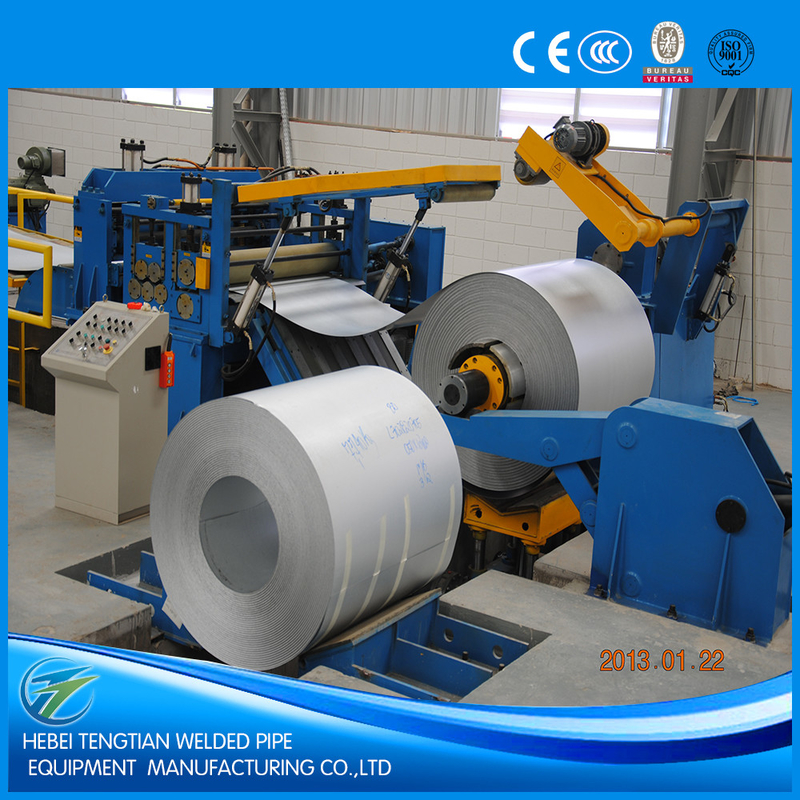

PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife
  • PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife
  • PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife
  • PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife

PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: SL1250X3.0mm
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
SL1250X3.0mm
Material:
HRC,CRC,Galvanised Steel Sheet
Voltage:
220/380/415/420/440V
Mill Speed:
Max 120m/min
Warranty:
1 Year
Blade:
Circular Knife
Width Tolerance:
+/-0.05mm
Control:
PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

High Light

Highlight:

slitting line machine

,

strip slitting machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days
Payment Terms:
L/C,T/T
Supply Ability:
20 Sets/Year
Product Description
Galvanised Steel Sheet Slitter Cutter Machine With Circular Knife Blade PLC Control
Product Specifications
Attribute Value
Material HRC, CRC, Galvanised Steel sheet
Voltage 220/380/415/420/440V
Mill speed Max 120m/min
Warranty 1 Year
Blade Circular knife
Width tolerance ±0.05mm
Control PLC
After-sales Service Engineers available to service machinery overseas
High Precision Semi-Automatic Metal Sheet Steel Slitting Machine
A slitting line, also called slitting machine, is designed for unwinding metal coils into strips, precisely slitting them to required widths, and recoiling them for further processing or sale.
Machine Composition
  1. Loading coil car
  2. Uncoiler
  3. Straightener device
  4. Pinch roll & leveler & hydraulic shearer
  5. Loop pit
  6. Side guide
  7. Slitter
  8. Transition platform & scrap winder
  9. Loop pit
  10. Tension station
  11. Recoiler
  12. Unloading coil car
Technical Parameters
Material: Cold-rolled, hot-rolled carbon steel, galvanized steel
Material thickness: 0.3-3.0mm
Material width: 800-1250mm
Coil I.D.: Φ508mm/Φ610mm
Coil O.D.: ≤Φ2000mm
Coil weight: 20 tons max
Narrowest strip width: 25mm (strip thickness≤1mm)
Width cutting precision: ±0.05mm (strip thickness≤1), ±0.1mm (strip thickness>1.5mm)
Slitting Bur: 0.03minimum, 5% of the trip thickness
No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)
Line working speed: 150m/min max
Total power: Approx.210kw
Customization: Our slitting line machines are customized according to customer requirements. Provide your parameters and we'll design a suitable machinery solution.
Standard Models
Model Strip Thickness (mm) Strip Width (mm) Coil Weight (ton) Speed (m/min) Total Power (kw) Area Occupied (m)
TTSL-450 0.15-3.0 200-420 4 MAX 0-120 55 13×4
TTSL-650 0.2-3.0 300-620 7 MAX 0-120 96 15×4
TTSL-850 0.3-3.0 300-800 8 MAX 0-120 100 15×5
TTSL-1350 0.3-6.0 300-1300 15 MAX 0-180 230 20×8
TTSL-1650 2.0-8.0 600-1600 20 MAX 0-120 380 33×12
TTSL-2000 2.0-8.0 800-1950 35 MAX 0-120 550 37×17
PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife 0 PLC Control Galvanized Steel Sheet Slitter Machine with Circular Knife 1
