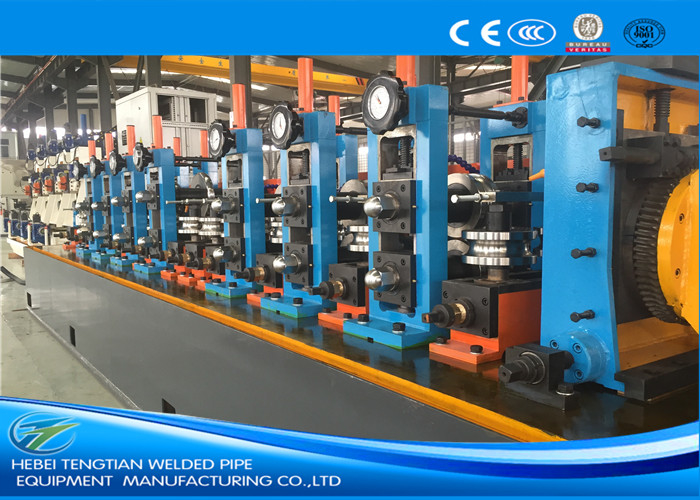

ERW60 High Frequency Square Tube Mill for Round and Rectangular Pipes

The ERW60 pipe making machine is a high precision tube mill line used to produce building materials pipes, widely applied for construction materials, drainage systems, energy supply pipes, building and decoration profiles, extruded profiles, and cold bending profiles.

Product precision reaches 0.03 mm (ERW32/ERW50/ERW60), with accuracy exceeding 0.05 mm for ERW76 units.

• High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
• Incorporates Japanese technology to meet high accuracy requirements for international clients
• Features schedulable worm gear and worm adjustment for precise, energy-efficient operation
• 3D adjustable scraping scar system with ±20° rotation capability
• Turkish head push square system reduces mold weight while ensuring stable forming and uniform R angles
• Level up shaft includes nylon damping blocks to minimize impact on shaft and bearings

• Scroll up
• Uncoil
• Flattening
• End Shear & Butt Welding
• Accumulator
• Forming
• High-frequency induction welding
• Removing external burr
• Cooling
• Sizing
• Cutting
• Checking & Collecting
• Accessing Warehouse

• Raw Material: HRC, CRC, Galvanised Coil
• Production Range:
  • Round Pipe: 19 - 60.3mm; Thickness: 0.6-3.0mm
  • Square Pipe: 15*15 - 50*50mm; Thickness: 0.6-2.5mm
  • Rectangular: 15*20 - 40*60mm; Thickness: 0.6-2.5mm
• H.F. Welder: GGP200Kw Solid State High Frequency Welder
• Line Speed: Max. 100m/min
• Tube Length: 4-12m
• Cutting Accuracy: ±3mm
