Precision Tube Mill for Round Square Rectangular Pipes 16-50.8mm

Name: Precision Tube Mill for Round Square Rectangular Pipes 16-50.8mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW50
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW50

Product Name:

Precision Tube Mill Hot Rolled Coil Pipe Tube Mill Production Line Energy Saving CE Certification

Running Speed:

Max.120m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

16 - 50.8mm

Max.Thickness For Square Pipe:

0.6-2.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Max.Thickness For Round Pipe:

0.6-3.0mm

Keywords:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Hot Rolled Coil Pipe Tube Mill Production Line

Product Specifications

Attribute	Value
Running speed	Max. 120m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	16 - 50.8mm
Max. Thickness for Square Pipe	0.6-2.0mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting
Max. Thickness for Round Pipe	0.6-3.0mm

Product Description

Product precision can reach 0.03 mm (ERW32/ERW50/ERW60), with accuracy exceeding 0.05 mm for ERW76 units.

Key Advantages

High precision: Level roller jumps ≤0.01mm, frame/slide clearance ≤0.02mm, vertical degree ≤0.05mm, parallel degree ≤0.1mm, diameter/roundness error ≤0.08mm
Incorporates Japanese technology for superior accuracy
Worm gear adjustment system for precise, energy-efficient operation
3D adjustable scraping system with ±20° rotation capability
Turkish head push square system reduces mold weight while maintaining stable forming and uniform R angles
Nylon damping blocks minimize impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material: HRC, CRC, Galvanised Coil

Production Range:

Round Pipe: 16 - 50.8mm; Thickness: 0.6-3.0mm

Square Pipe: 12*12 - 40*40mm; Thickness: 0.6-2.0mm

H.F. Welder: GGP200Kw Solid State High Frequency Welder

Line Speed: Max. 120m/min

Tube Length: 4-12m

Cutting Accuracy: ±3mm

As a CE & ISO9001:2008 certified manufacturer, our high-quality machines are exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, and Mexico.

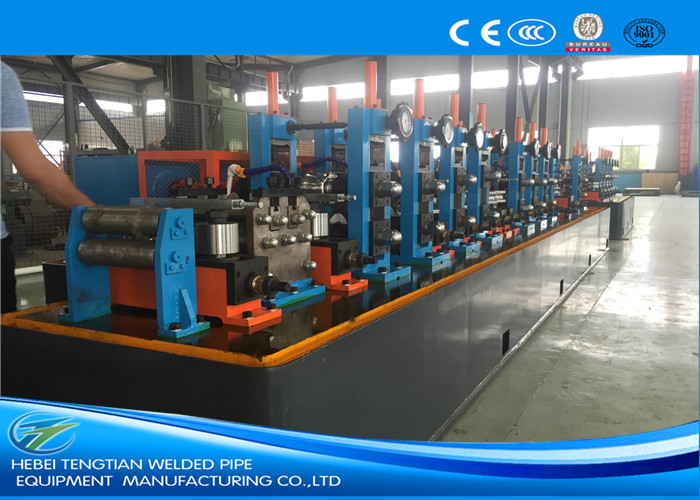

ERW50 High Precision Steel Tube Mill Production Line

This precision tube mill line produces building materials pipes for construction, drainage, energy supply, and decorative profiles.
