Precision Tube Mill for Round Square Rectangular Pipes 12-38mm

Name: Precision Tube Mill for Round Square Rectangular Pipes 12-38mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW38
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW38

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW38

Product Name:

Precision Tube Mill Rectangular Shape Heavy Duty Blue Color Custom

Adjusting:

Worm Gearing

Running Speed:

Max.120m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

12 - 38mm

Max.Thickness For Square Pipe:

0.5-1.5mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Wall Thickness:

0.5mm - 3mm

Speed:

30-120 M/min

Warranty:

1 Year

Cutting Method:

Cold Saw Cutting

Machine Name:

High Frequency Welded Pipe Mill

Feature:

PLC Control

Cutting:

Cold Saw; Without Burr

Line Speed:

Max.100m/min

Key Word:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

pipe milling machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Rectangular Shape Heavy Duty Blue Color Custom

Product Specifications

Attribute	Value
Adjusting	worm gearing
Running speed	Max.120m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	12 - 38mm
Max.Thickness for Square Pipe	0.5-1.5mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting
Wall Thickness	0.5mm - 3mm
Speed	30-120 m/min
Warranty	1 Year
Cutting Method	Cold Saw Cutting
Feature	PLC control
Cutting	Cold Saw; Without Burr
Line Speed	Max.100m/min

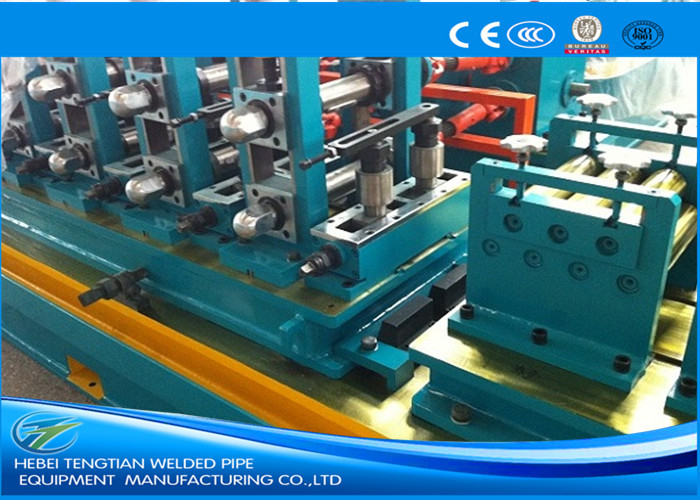

ERW38 High Precision Tube Mill Machine

This mill is designed for manufacturing round pipes (Φ12mm-Φ38mm) with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strips. The process involves forming unclosed tubular blanks, subsequent high-frequency welding, cooling, sizing/shaping, and on-stream cutting of endless tubes into measured lengths.

Product Advantages

High precision: Level roller jumps (0.01), frame/slide clearance (≤0.02), frame verticality (≤0.05), frame parallelism (≤0.1), pipe diameter/roundness error (≤0.08)
Incorporates Japanese technology for high accuracy requirements
Worm gear adjustment system for precise, energy-efficient operation
3D adjustable scraping system with ±20° rotation capability
Turkish head push square system for stable forming and uniform R angles
Nylon damping blocks reduce impact on shafts and bearings

Technical Specifications

Raw Material: HRC, CRC, Galvanised Coil

Production Range: Round Pipe: 12-38mm (0.5-2.0mm thickness); Square Pipe: 10×10-30×30mm (0.5-1.5mm thickness); Rectangular: 10×20-20×40mm (0.5-1.5mm thickness)

H.F. Welder: GGP150Kw Solid State High Frequency Welder

Line Speed: Max. 120m/min

Tube Length: 4-12m

Cutting Accuracy: ±2mm per 6m length

Electric Capacity: approx. 300KW

Line Dimensions: about 50×5m

CE & ISO9001:2008 certified. Our high-quality machines are exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.
