Precision Tube Mill for Round Square Rectangular Pipes 25.4-89mm
Precision Tube Mill for Round Square Rectangular Pipes 25.4-89mm
  • Precision Tube Mill for Round Square Rectangular Pipes 25.4-89mm
  • Precision Tube Mill for Round Square Rectangular Pipes 25.4-89mm

Precision Tube Mill for Round Square Rectangular Pipes 25.4-89mm

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW 89
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ERW 89
Product Name:
Precision Tube Mill Galvanised Coil Automatic Control 80m / Min Running
Adjustment Type:
Worm Gearing
Running Speed:
Max.80m/min
Pipe Shape:
Round, Square & Rectangular
Pipe Diameter:
25.4-89mm
Max.Thickness For Square Pipe:
0.8-3.0mm
Welding Type:
High Frequency Welding
Cutting Saw:
Cold Saw & Friction Saw Cutting
Max.Thickness For Round Pipe:
0.8-4.0mm
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

ss tube mill machine

,

pipe milling machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Precision Tube Mill Galvanised Coil Automatic Control 80m/Min Running
Product Specifications
Attribute Value
Adjustment type Worm gearing
Running speed Max. 80m/min
Pipe shape Round, Square & Rectangular
Pipe Diameter 25.4-89mm
Max. Thickness for Square Pipe 0.8-3.0mm
Welding Type High Frequency Welding
Cutting Saw Cold Saw & Friction Saw Cutting
Max. Thickness for Round Pipe 0.8-4.0mm

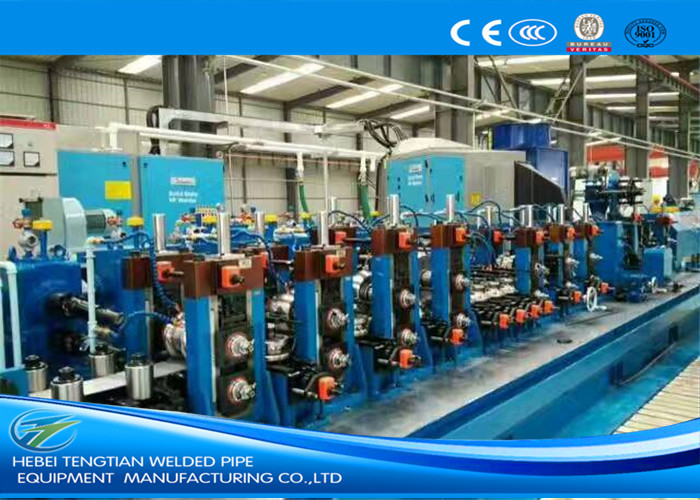

ERW89 High Precision Steel Tube Mill Production Line

This high-frequency welded tube mill line is designed to produce round tubes with diameters of 25.4-88.9 mm and wall thicknesses of 0.8-4.0 mm. The line utilizes roll forming to process steel strip into various shapes, using high frequency induction heating to create section material of various diameters and sizes by squeezing weld seams together into closed shapes.

Key Features
  • Advanced aperture technology for precision forming
  • PLC automatic control system for reliable operation
  • British Eurasia Digital speed-regulating unit
  • Easy operation and maintenance
Production Process
  1. Scroll up
  2. Uncoil
  3. Flattening
  4. End Shear & Butt Welding
  5. Accumulator
  6. Forming
  7. High-frequency induction welding
  8. Removing external burr
  9. Cooling
  10. Sizing
  11. Cutting
  12. Checking & Collecting
  13. Accessing Warehouse
Technical Specifications
Raw Material: HRC, CRC, Galvanised Coil
Production Range:
Round Pipe: 25.4-88.9mm; Thickness: 0.8-4.0mm
Square Pipe: 20*20-70*70mm; Thickness: 0.8-3.0mm
Rectangular: 20*30-60*80mm; Thickness: 0.8-3.0mm
H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 80m/min
Tube Length: 4-12m
Cutting Accuracy: ±3mm
Total Installation Capacity: 600kw
CE & ISO9001:2008 certified pipe making machine manufacturer. Our high-quality, reliable machines with long service life are exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.
