Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
  • Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
  • Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
  • Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
  • Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min
  • Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min

Precision Tube Mill for Galvanized Steel Round Square Tubes 80m/min

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW102
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ERW102
Product Name:
Precision Tube Mill Galvanised Steel Square Tube Mill 3.0mm Thick PLC Control Automatic Function
Running Speed:
Max.80m/min
Pipe Shape:
Round, Square & Rectangular
Pipe Diameter:
32-101.6mm
Max.Thickness For Round Pipe:
0.8-3.0mm
Welding Type:
High Frequency Welding
Cutting Saw:
Cold Saw & Friction Saw Cutting
Square Pipe:
25*25-80*80mm
Max.Thickness For Square Pipe:
0.8-2.0mm
Keyword:
Precision Tube Mill
Highlight:

High Light

Highlight:

pipe milling machine

,

industrial tube mills

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Precision Tube Mill Galvanised Steel Square Tube Mill 3.0mm Thick PLC Control Automatic Function
Product Specifications
Attribute Value
Running speed Max. 80m/min
Pipe shape Round, Square & Rectangular
Pipe Diameter 32-101.6mm
Max. Thickness for Round Pipe 0.8-3.0mm
Welding Type High Frequency Welding
Cutting Saw Cold Saw & Friction Saw Cutting
Square Pipe 25*25-80*80mm
Max. Thickness for Square Pipe 0.8-2.0mm

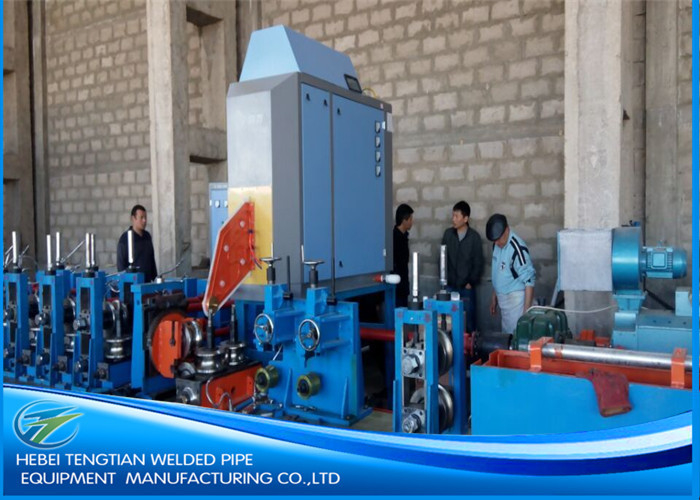

ERW102 High Precision Steel Tube Mill Production Line
This high-frequency welded tube mill line is designed to produce round tubes with diameters of 32-101.6mm and wall thicknesses of 0.8-3.0mm. The line utilizes roll forming to process steel strip into various shapes, using high frequency induction heating to create section material of various diameters and sizes by squeezing weld seams together into closed shapes.
Key Features
  • Advanced aperture technology for precise production
  • PLC automatic control system for reliable operation
  • British Eurasia Digital speed-regulating unit
  • Easy operation and maintenance
Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
Technical Specifications
Raw Material: HRC, CRC, Galvanised Coil
Production Range:
Round Pipe: 32-101.6mm; Thickness: 0.8-3.0mm
Square Pipe: 25*25-80*80mm; Thickness: 0.8-2.0mm
H.F. Welder: GGP200Kw Solid State High Frequency Welder
Line Speed: Max. 80m/min
Tube Length: 4-12m
Cutting Accuracy: ±2mm
Total Installation Capacity: 400kw
As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, and Mexico.
Contact us today for more information about this precision tube mill production line.
