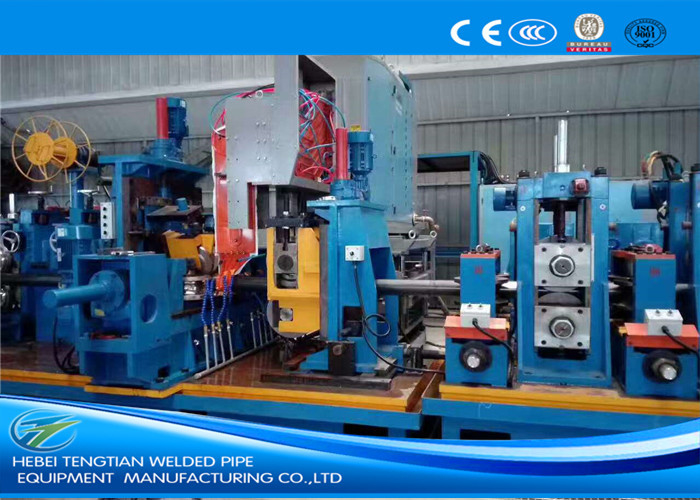

Precision Tube Mill for Round Square Rectangular Pipes 38-114mm

Name: Precision Tube Mill for Round Square Rectangular Pipes 38-114mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW114

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW114

Product Name:

Precision Tube Mill Welded Industrial Tube Mills Galvanised Steel Production Line 70m / Min Running Speed

Running Speed:

Max.70m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

38-114mm

Max.Thickness For Round Pipe:

1.2-5.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Square Pipe:

30*30-90*90mm

Max.Thickness For Square Pipe:

1.2-4.0mm

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

ss tube mill machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Precision Tube Mill Welded Industrial Tube Mills Galvanised Steel Production Line

Product Specifications

Attribute	Value
Running speed	Max. 70m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	38-114mm
Max.Thickness for Round Pipe	1.2-5.0mm
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Square Pipe	3030-9090mm
Max.Thickness for Square Pipe	1.2-4.0mm

ERW114 High Precision Steel Tube Mill Production Line

High-frequency welded tube mill line is designed to produce round tubes with diameters of 38-114mm and wall thicknesses of 1.2-5.0mm. This production line utilizes roll forming to process steel strip into various shapes, using high frequency induction heating to create section material of various diameters and sizes by squeezing weld seams together into closed shapes.

Key Features

Advanced aperture technology
PLC automatic control system
British Eurasia Digital speed-regulating unit
Reliable performance with easy operation and maintenance
CE & ISO9001:2008 certified

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

Raw Material:

HRC, CRC, Galvanised Coil

Steel Coil:

Inner diameter: Φ470-Φ510mm, Outer diameter: Φmax=1500mm, Strip steel width: 120mm-360mm, Strip steel thickness: 1.2mm-5.0mm, Maximum weight: 5 tons

Production Range:

Round Pipe: 38-114mm (Thickness: 1.2-5.0mm), Square Pipe: 30*30-90*90mm (Thickness: 1.2-4.0mm)

H.F. Welder:

GGP400Kw Solid State High Frequency Welder

Line Speed:

Max. 70m/min

Tube Length:

4-12m

Cutting Accuracy:

±2mm

Total Installation Capacity:

750kw

Dynamic Power:

AC380V±10%, 3phases, 50Hz±1.0%

Cooling Water:

Reservoir for High Frequency equipment: 25m³, one set; Reservoir for circulating cooling water: 20m³, one set

Compressed Air:

Pressure: 0.4Mpa, Flow: 2.0m3/h

Our high-quality, reliable performance tube mills with long service life are exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.
