Precision Tube Mill Cold Saw Stainless Steel Tube Mill, SS Tube Mill Machine 100 × 100mm Pipe Size
Product Specifications
| Attribute |
Value |
| Running speed |
Max. 80m/min |
| Pipe shape |
Round, Square & Rectangular |
| Pipe Diameter |
38-127mm |
| Max. Thickness for Round Pipe |
1.0-4.0mm |
| Welding Type |
High Frequency Welding |
| Cutting Saw |
Cold Saw & Friction Saw Cutting |
| Square Pipe |
30*30-100*100mm |
| Max. Thickness for Square Pipe |
1.0-4.0mm |

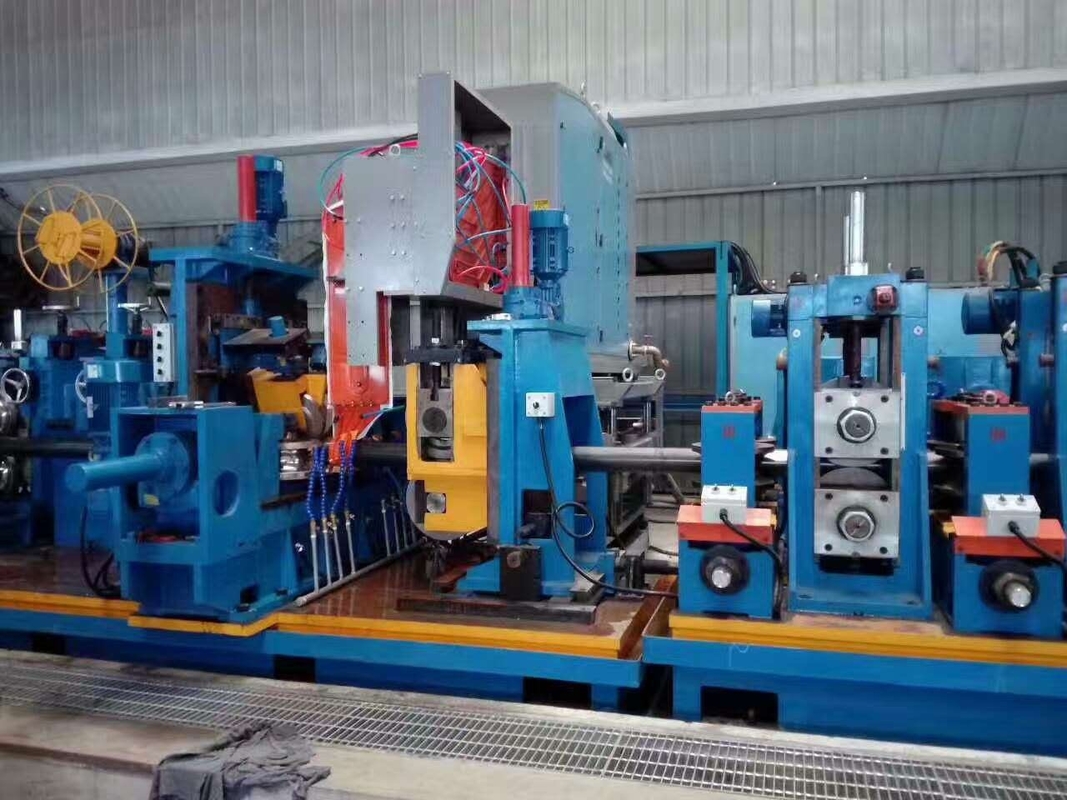

100 × 100mm High Precision Steel Tube Mill Production Line
This high-frequency welded tube mill line is designed to produce round tubes with diameters of 38-127mm and wall thicknesses of 1.0-4.0mm. The line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, it produces section material of various diameters and sizes by squeezing weld seams together into closed shapes.
Key Features
- Advanced aperture technology for precise production
- PLC automatic control system for reliable operation
- British Eurasia Digital speed-regulating unit
- Easy operation and maintenance
Production Process
- Scroll up
- Uncoil
- Flattening
- End Shear & Butt Welding
- Accumulator
- Forming
- High-frequency induction welding
- Removing external burr
- Cooling
- Sizing
- Cutting
- Checking & Collecting
- Accessing Warehouse
Technical Specifications
Raw Material: HRC, CRC, Galvanised Coil
Steel Coil Inner Diameter: Φ470-Φ510mm
Steel Coil Outer Diameter: Φmax=1500mm
Strip Steel Width: 120mm-400mm
Strip Steel Thickness: 1.0mm-4.0mm
Maximum Weight: 5 tons
Production Range:
Round Pipe: 38-127mm; Thickness: 1.0-4.0mm
Square Pipe: 30*30-100*100mm; Thickness: 1.0-3.0mm
H.F. Welder: GGP300Kw Solid State High Frequency Welder
Line Speed: Max. 70m/min
Tube Length: 4-12m
Cutting Accuracy: ±2mm
Total Installation Capacity: 600kw
Dynamic Power: AC380V±10%, 3phases, 50Hz±1.0%
Cooling System
Reservoir for High Frequency equipment: 25m³, one set
Reservoir for circulating cooling water: 20m³, one set
Compressed Air Requirements
Pressure: 0.4Mpa
Flow: 2.0m³/h
CE & ISO9001:2008 certified pipe making machine manufacturer. Our high-quality, reliable machines are exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.
