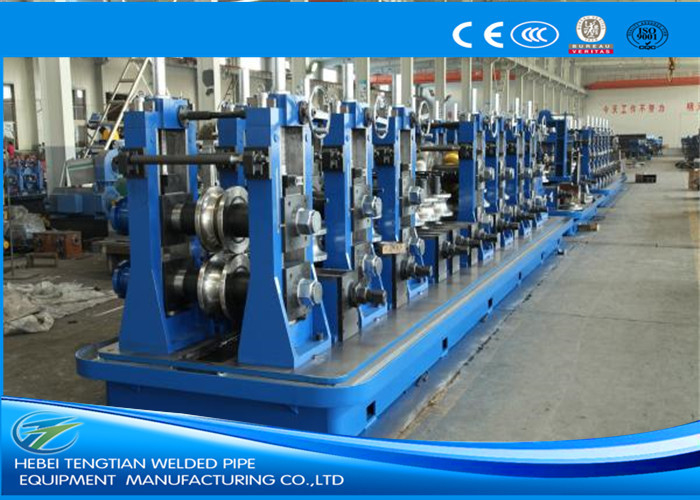

High Frequency Tube Mill Machine for Round Square Rectangular Pipes

This production line manufactures welded steel pipes of Φ89mm-Φ219mm with 2.0mm-8.0mm wall thickness, capable of producing profiled pipes within the processing limits of round pipes. Incorporating advanced pipe-making technology from domestic and international sources, our innovative design offers both economical and practical solutions.

• Produces longitudinal weld seam tubes and pipes from steel strips of specific widths
• Process begins with uncoiling and flattening slitted steel coils into strips
• Forming machine with roller tooling shapes strips into round pipes
• High frequency solid state welder joins the pipe seams
• Sizing machine forms tubes to final dimensions before cutting to length

• Scroll up
• Uncoil
• Flattening
• End Shear & Butt Welding
• Accumulator
• Forming
• High-frequency induction welding
• Removing external burr
• Cooling
• Sizing
• Cutting
• Checking & Collecting
• Accessing Warehouse

• H.F. Welder: GGP600Kw Solid State High Frequency Welder
• Line Speed: Max. 50m/min
• Tube Length: 4-12m
• Cutting Accuracy: ±1mm
• Electric installed capacity: approx. 1100KW
• Size of whole line: about 100X8m

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.

For inquiries or additional information, please contact us - we're happy to assist you.
