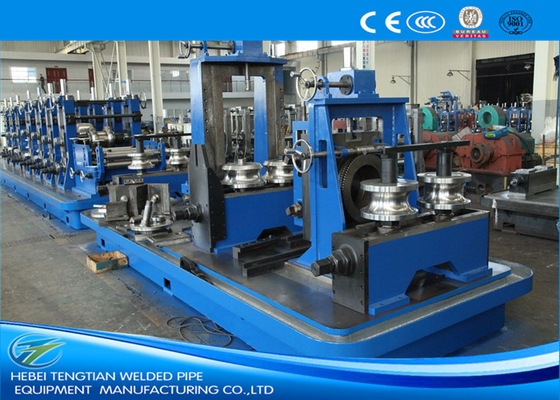

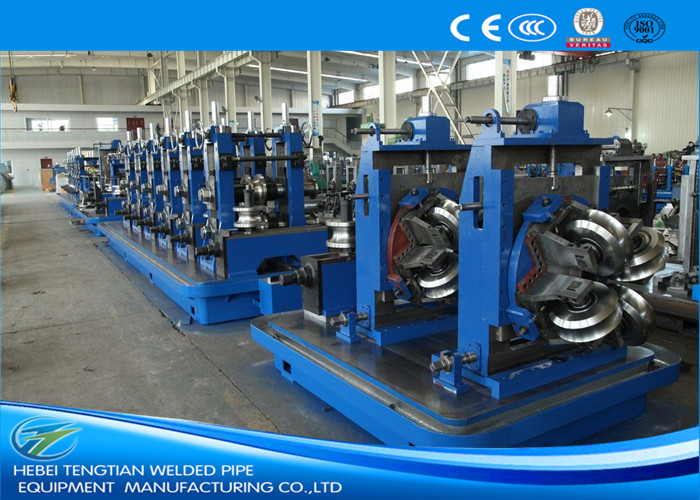

Carbon Steel Pipe And Tube Mill Machine

Carbon Steel Pipe And Tube Mill Machine
Carbon Steel Pipe And Tube Mill Machine Carbon Steel Pipe And Tube Mill Machine

Large Image :  Carbon Steel Pipe And Tube Mill Machine

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW219
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Material: Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel Forming Method: FFX Forming Technology
Running Speed: Max.50m/min Pipe Shape: Round, Square & Rectangular
Pipe Diameter: 89 - 219mm Max.Thickness For Round Pipe: 2.0 - 8.0mm
Welding Type: High Frequency Welding Cutting Saw: Friction Saw Cutting
Max.Thickness For Square Pipe: 2.0 - 6.0mm Square Pipe: 80*80 - 200*200mm
Name: Tube Mill Machine
Highlight:

carbon steel tube mill

,

welded tube mill



HG219*8mm high frequency welded tube mill machine



This line is used to manufacture welded steel pipe of Φ89mm-Φ219mm with 2.0mm-8.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.



Brief introduction of ERW tube mill & pipe mill

  • The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.
  • It starts by uncoil and flatten the slitted steel coils into steel strips.
  • The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.
  • The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.
  • The welded tubes will be formed to expected shape or size in a sizing machine. Finally the tubes will be cut to length and bundled.

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse



Specifications:





1. Raw Material

1 Mateairal applcaition Hot or cold rolled steel strips, galvanzied steel strips
2 Material grade Low-carbon steel, low alloy steel: δs≤345Mpa
3 ID of the steel strips Φ450-Φ508mm
4 OD of the steel strips Φ800-Φ2000mm
5 Coiler weight Max.1500kg





















2. Production Range:

Round Pipe 89 - 219mm Thickness: 2.0-8.0mm
Square Pipe 80*80 - 200*200mm Thickness: 2.0-6.0mm
Rectangular Pipe 80*100 - 150*200mm Thickness: 2.0-6.0mm



3. H.F. Welder: GGP600Kw Solid State High Frequency Welder

4. Line Spees: Max. 50m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±1mm

7. Electric installed capacity: appro. 1100KW

8. Size of whole line: about 100X8m



As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.


If you have any interested here, please don't hesitate, we are here happy to assist you.
