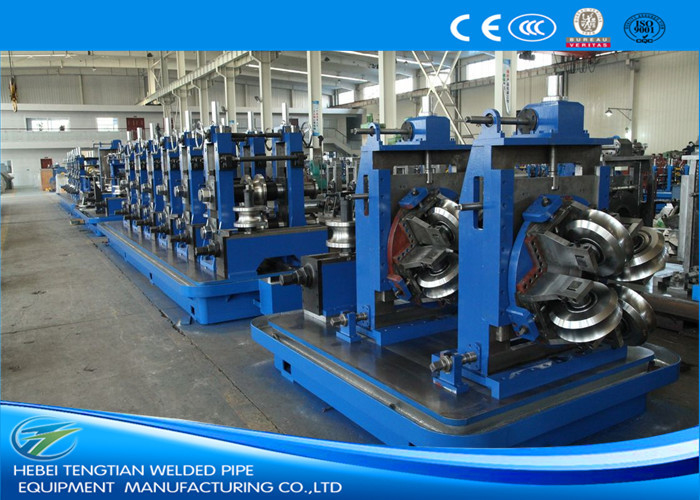

Carbon Steel Tube Mill Machine for Round Square Rectangular Pipes

Name: Carbon Steel Tube Mill Machine for Round Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW219

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW219

Material:

Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel

Forming Method:

FFX Forming Technology

Running Speed:

Max.50m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

89 - 219mm

Max.Thickness For Round Pipe:

2.0 - 8.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Friction Saw Cutting

Max.Thickness For Square Pipe:

2.0 - 6.0mm

Square Pipe:

80*80 - 200*200mm

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Carbon Steel Pipe And Tube Mill Machine

Product Specifications

Attribute	Value
Material	Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Forming Method	FFX Forming Technology
Running speed	Max. 50m/min
Pipe shape	Round, Square & Rectangular
Pipe Diameter	89 - 219mm
Max.Thickness for Round Pipe	2.0 - 8.0mm
Welding Type	High Frequency Welding
Cutting Saw	Friction Saw Cutting
Max.Thickness for Square Pipe	2.0 - 6.0mm
Square Pipe	8080 - 200200mm

HG219*8mm High Frequency Welded Tube Mill Machine

This production line manufactures welded steel pipes ranging from Φ89mm-Φ219mm with wall thickness of 2.0mm-8.0mm, capable of producing profiled pipes within the processing limits of round pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative design offers both economical and practical solutions.

ERW Tube Mill & Pipe Mill Overview

Produces longitudinal weld seam tubes and pipes from steel strips of specific width
Process begins with uncoiling and flattening steel coils into strips
Forming machine rolls strips into round pipe shape using roller tooling
High frequency solid state welder joins the tube in the weld box
Sizing machine forms tubes to final dimensions before cutting and bundling

Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding → Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Technical Specifications

1. Raw Material:

Material application	Hot or cold rolled steel strips, galvanized steel strips
Material grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of the steel strips	Φ450-Φ508mm
OD of the steel strips	Φ800-Φ2000mm
Coiler weight	Max. 1500kg

2. Production Range:

Type	Dimensions	Thickness
Round Pipe	89 - 219mm	2.0-8.0mm
Square Pipe	8080 - 200200mm	2.0-6.0mm
Rectangular Pipe	80100 - 150200mm	2.0-6.0mm

3. H.F. Welder: GGP600Kw Solid State High Frequency Welder

4. Line Speed: Max. 50m/min

5. Tube Length: 4-12m

6. Cutting Accuracy: ±1mm

7. Electric installed capacity: approx. 1100KW

8. Size of whole line: about 100X8m

As a CE & ISO9001:2008 certified pipe making machine manufacturer, our high-quality, reliable machines have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, and Mexico. Contact us for more information about this tube mill machine.
