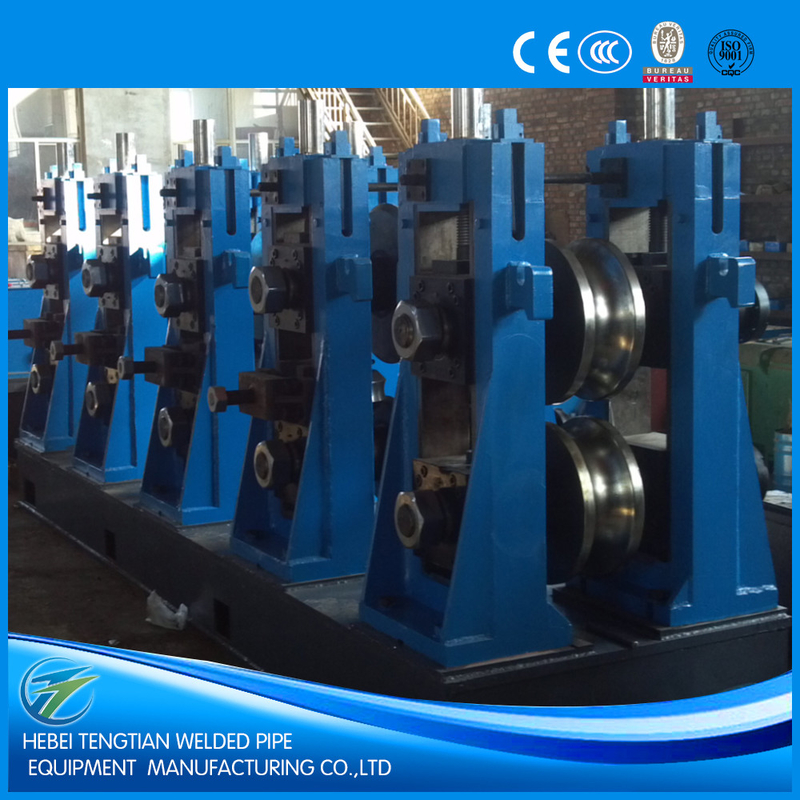

High Frequency Welded Pipe Mill for Galvanized Steel 114-273mm

Name: High Frequency Welded Pipe Mill for Galvanized Steel 114-273mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ERW273
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ERW273

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ERW273

Product Name:

High Frequency Welded Pipe Mill Galvanised Steel Pipe Milling Machine Welding With FFX Forming Technology

Forming Method:

FFX Forming Technology & Directly Forming

Running Speed:

Max.40m/min

Pipe Shape:

Round, Square & Rectangular

Pipe Diameter:

114 - 273mm

Max.Thickness For Round Pipe:

2.0 - 10.0mm

Welding Type:

High Frequency Welding

Cutting Saw:

Milling Saw

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

Galvanised Steel hf tube mill

Round hf tube mill

FFX Forming hf tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

8 months

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Pipe Mill with FFX Forming Technology

Product Attributes

Forming Method	FFX Forming Technology & Directly Forming
Running Speed	Max. 40m/min
Pipe Shape	Round, Square & Rectangular
Pipe Diameter	114 - 273mm
Max. Thickness for Round Pipe	2.0 - 10.0mm
Welding Type	High Frequency Welding
Cutting Saw	Milling Saw

Product Description

The ERW273 high precision full automatic ERW tube mill is designed for manufacturing welded steel pipes with diameters from Φ114mm to Φ273mm and wall thicknesses from 2.0mm to 10.0mm, including square pipes from 60×60mm to 200×200mm.

ERW Tube Mill Process

Uncoils and flattens steel coils into strips
Forms strips into round pipe shape using precision rollers
Welds tubes using high frequency solid state welder
Sizes tubes to precise dimensions
Cuts to specified lengths (6-12m) with ±3mm accuracy

Key Advantages

High precision manufacturing with diameter and roundness error ≤0.08
Incorporates Japanese technology for superior accuracy
Worm gear adjustment system for precise control
3D adjustable scraping system with ±20° rotation capability
Turkish head push square forming for stable, uniform R angles
Nylon damping blocks reduce impact on shafts and bearings

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

Technical Specifications

Raw Material

Material Application	Hot or cold rolled steel strips, galvanized steel strips
Material Grade	Low-carbon steel, low alloy steel: δs≤345Mpa
ID of Steel Strips	Φ508-Φ610mm
OD of Steel Strips	Φ800-Φ2000mm
Coiler Weight	Max. 3000kg

Production Range

Pipe Type	Size Range	Thickness
Round Pipe	114 - 273mm	2.0-10.0mm
Square Pipe	60×60 - 200×200mm	2.0-10.0mm
Rectangular Pipe	50×70 - 100×300mm	2.0-10.0mm

Additional Specifications

H.F. Welder: GGP800Kw Solid State High Frequency Welder
Line Speed: Max. 40m/min
Tube Length: 6-12m
Cutting Accuracy: ±3mm
Electric Installed Capacity: approx. 1000KW
Size of Whole Line: about 100×12m

As a CE & ISO9001:2008 certified manufacturer, our high-quality pipe making machines are exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.
