Home > products >
High Frequency Welded Pipe Mill
>
High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes
  • High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes
  • High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes
  • High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes
  • High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes

High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW426
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ERW426
Product Name:
High Frequency Welded Pipe Mill Low Alloy Steel ERW Pipe Mill Line Milling Saw With ISO9001 Certification
Running Speed:
Max.30m/min
Pipe Shape:
Round, Square & Rectangular
Max.Thickness For Round Pipe:
5.0 - 16mm
Welding Type:
High Frequency Welding
Cutting Saw:
Milling Saw
Max.Thickness For Square Pipe:
5.0 - 16mm
Square Pipe:
100*100 - 300*300mm
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

High Frequency Welded erw tube mill

,

Low Alloy Steel erw tube mill

,

High Frequency Welded tube mill machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
8 months
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Low Alloy Steel ERW Tube Mill Line Milling Saw
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill Low Alloy Steel ERW Pipe Mill Line Milling Saw With ISO9001 Certification
Running Speed Max. 30m/min
Pipe Shape Round, Square & Rectangular
Max. Thickness for Round Pipe 5.0 - 16mm
Welding Type High Frequency Welding
Cutting Saw Milling Saw
Max. Thickness for Square Pipe 5.0 - 16mm
Square Pipe Dimensions 100*100 - 300*300mm
Product Description

ERW426 high frequency high precision ERW pipe mill making machine

This production line manufactures welded steel pipes with diameters of Φ219mm-Φ426mm and wall thicknesses of 5.0mm-16mm, capable of producing square pipes ranging from 100*100mm to 300*300mm.

Incorporating advanced pipe making technology from both domestic and international sources, our innovatively designed production line offers economical and practical solutions with each individual unit.

Key Features
  • Produces welded pipes with OD: 32mm-89mm and wall thickness: 1mm-4.5mm
  • Manufactures square tubes: 25mm×25mm to 70mm×70mm with thickness: 1mm-3.0mm
  • Standard pipe length: 6-12m (±3mm tolerance)
  • Compatible with carbon steel (GB Q195-Q345), alloy steel, and API 5L X42-X80 materials
  • Production speed: 20-60m/min
  • Operational direction customizable (left to right or right to left)
Production Line Process

Uncoiling → Shear & butt welding → Cage looping (Accumulating) → Forming → HF welding → Removing inside & outside bead → Cooling → Sizing → Cutting → Conveying → Downloading → Packing → Warehousing

Line Components
  • Double-reel Mechanical Uncoiler
  • Shear & Butt Welder
  • Cage Loop (Accumulator)
  • Tube mill
  • Solid State H.F. welder
  • NC Flying Saw
  • Output Rollway
  • Rollers

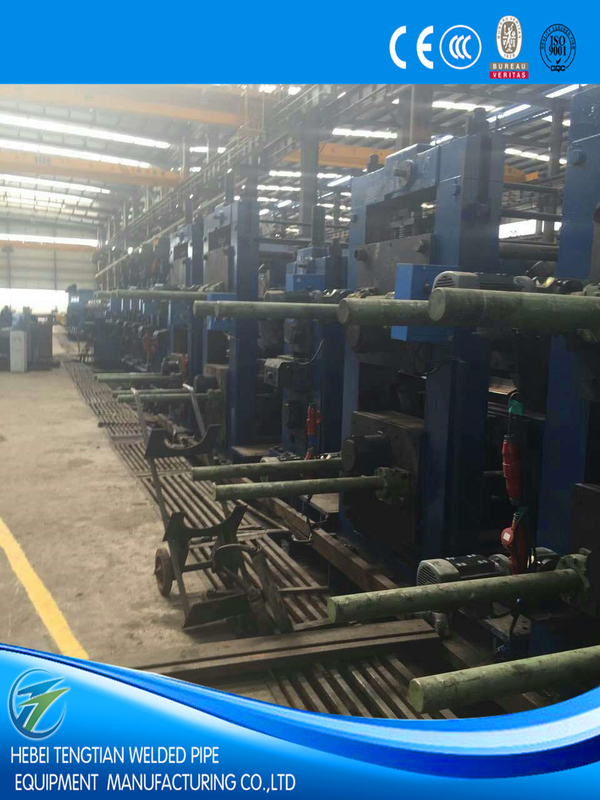

High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes 0
High Frequency Welded Pipe Mill for Low Alloy Steel ERW Tubes 1

As a CE & ISO9001:2008 certified pipe making machine manufacturer, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and throughout Asia.
