High Frequency Welded Pipe Mill
>
High Frequency Welded Pipe Mill 254-508mm Round ERW 25m/min
High Frequency Welded Pipe Mill 254-508mm Round ERW 25m/min
  • High Frequency Welded Pipe Mill 254-508mm Round ERW 25m/min
  • High Frequency Welded Pipe Mill 254-508mm Round ERW 25m/min

High Frequency Welded Pipe Mill 254-508mm Round ERW 25m/min

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ERW219
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ERW219
Product Name:
High Frequency Welded Pipe Mill Large Size Yellow ERW Pipe Mill Pipe Making Machine Round Shape Max 25m / Min Speed
Forming Method:
FFX Forming Technology & Directly Forming
Running Speed:
Max.25m/min
Pipe Shape:
Round
Pipe Diameter:
254 - 508mm
Welding Type:
Duel Welding High Frequency Welding
Cutting Saw:
Milling Saw
Thickness For Square Pipe:
6 - 16mm
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

Large high frequency welded pipe mill

,

Yellow high frequency welded pipe mill

,

Large high frequency welded tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
12 months
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Large Size Yellow ERW Round Shape High Frequency Welded Pipe Mill
Max 25m/min Speed | 254-508mm Diameter Range
Attribute Value
Product Name High Frequency Welded Pipe Mill Large Size Yellow ERW Pipe Mill Pipe Making Machine
Forming Method FFX Forming Technology & Directly Forming
Running Speed Max. 25m/min
Pipe Shape Round
Pipe Diameter 254 - 508mm
Welding Type Dual Welding High Frequency Welding
Cutting Saw Milling Saw
Thickness for Square Pipe 6 - 16mm

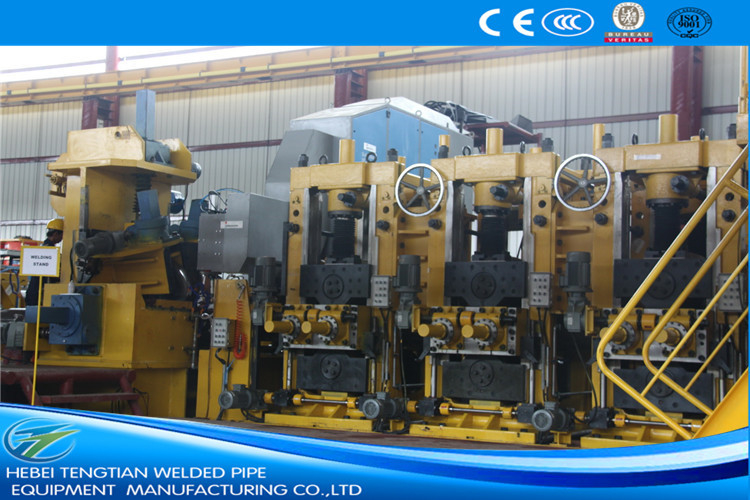

ERW508 High Frequency High Precision Pipe Mill

This production line manufactures welded steel pipes with diameters ranging from Φ254mm to Φ508mm and wall thicknesses of 6.0mm to 16mm. Capable of producing square pipes from 200×200mm to 400×400mm, our innovative design combines international and domestic pipe making technologies for an economical yet practical solution.

Key Specifications
1. Raw Material
Material Application Hot rolled steel strips
Material Grade X42, X50, X60, X65, X70, J55, N80
ID of Steel Strips Φ508-Φ610mm
OD of Steel Strips Φ800-Φ2000mm
Coiler Weight Max. 3500kg
2. Production Range
Round Pipe 254 - 508mm Thickness: 6.0-16mm
Square Pipe 200×200 - 400×400mm Thickness: 6.0-16mm
Rectangular Pipe 200×250 - 300×500mm Thickness: 6.0-16mm
  • 3. H.F. Welder: GGP1200Kw Solid State High Frequency Welder (Dual Welding)
  • 4. Line Speed: Max. 25m/min
  • 5. Tube Length: 6-12m
  • 6. Cutting Accuracy: ±1mm
  • 7. Electric Installed Capacity: Approx. 2400KW
  • 8. Size of Whole Line: About 130×16m
Our Comprehensive Services
  • Pre-sale Service: Complete project design including workshop layout, power capacity planning, worker calculation, equipment selection, and cost budgeting.
  • After-sale Service: Onsite engineering support for installation and commissioning, worker training, and production problem-solving with one-year quality guarantee.
  • Logistics Support: Timely sea freight services available.

As a CE & ISO9001:2008 certified manufacturer, our high-quality, reliable machines have been exported to over 30 countries including Turkey, Egypt, Mexico, and throughout Asia.
