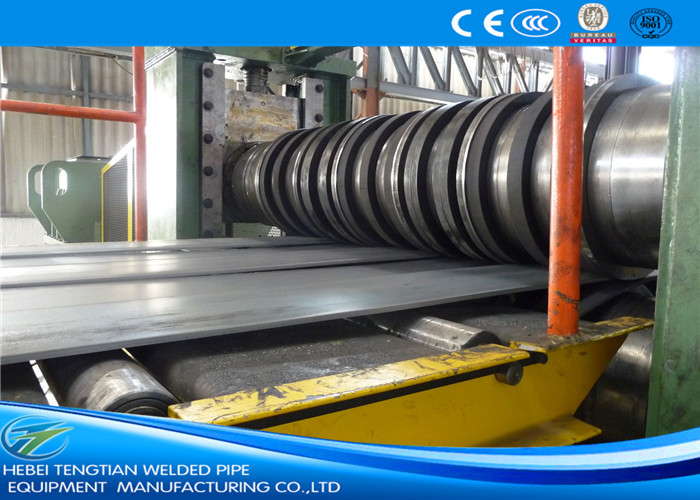

High Precision Steel Slitting Machine PLC Control 30 Ton Capacity

This high precision metal sheet/strip slitting machine with adjustable speed is designed for processing steel coils with thickness ranging from 3-10mm and widths from 800-2000mm into narrower strips. The machine is ideal for providing steel strip coils for cold rolling mills, welded pipe mills, and roll forming machines.

• Double mandrel uncoiler for handling heavy coils up to 30 tons
• PLC control system for precise operation
• Adjustable slitting speed from 0-60 m/min
• High precision cutting with width tolerance of ±0.05mm
• Durable SKD11 blade material
• Hole accumulators for smooth operation
• Edge scrap reeler with torque motor
• Hydraulic coil separating and pressing system

Coil-loading → Double-mandrel uncoiler → Coil-head-feeding, press & shoveling → Double-roller pinch feeding, five-roller leveling → End-cutting → Hole Accumulator(1) → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator(2) → Pre-separator/Tensioner/length-measuring roller → Recoiling/Coils press & separator → Coils-discharging → Hydraulic control → Electric control

Material: Carbon steel, color steel, galvanized steel

Strip thickness: 3-10mm

Strip width: 800-2000mm

Coil inner diameter: ≥Φ508mm

Max outer diameter: Φ2000mm

Max coil weight: 35,000kg

Leveling roller material: 40Cr

Disc cutter material: 6CrW2Si, HRC 55-58

Slitting speed: 0-60 m/min (adjustable)

Note: Specifications may vary based on custom requirements. Each machine is designed according to customer specifications.

Our slitting line machines are custom-designed to meet specific requirements. Provide your parameters and our engineers will develop a tailored machinery solution for your production needs.
