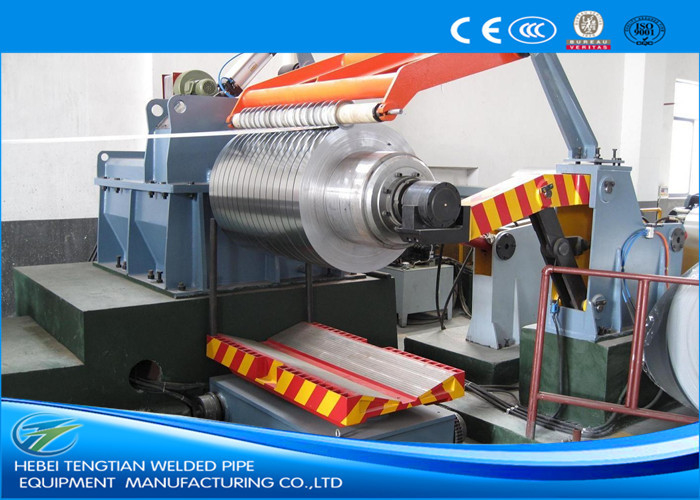

CRC Sheet Steel Slitting Machine 25 Strips Centerline Control ISO Certification
Product Specifications
| Attribute |
Value |
| Material |
HRC, CRC, Galvanised Steel sheet |
| Voltage |
220/380/415/420/440V |
| Mill speed |
Max 120m/min |
| Warranty |
1 Year |
| Blade Material |
SKD11 |
| Width tolerance |
+/-0.05mm |
| Control |
PLC |
| After-sales Service |
Engineers available to service machinery overseas |
| Max. Slitting Strips |
25 strips |
| Coil Weight |
30 tons max. |
Product Description
ZJ-(0.4～4) ×1600mm Full Automatic High Precision High Speed HRC CRC Steel Slitting Machine
This thin sheet slitting line, also called metal coil slitter, is a production line designed to break down master coils into smaller coils of specific widths. The system consists of multiple components working in harmony for efficient operation.
Key Features
- Custom-designed production lines tailored to customer requirements
- Flexible configuration with single or double mandrel uncoiler options
- Precision centerline control for accurate slitting of thin materials
- Surface protection measures for delicate materials like stainless steel
- Advanced hydraulic system design for optimal performance
- High-quality components from reputable suppliers
- Strict quality control throughout manufacturing process
- Competitive pricing through efficient production management
- Choice of AC or DC motor drive systems
- Comprehensive safety features including emergency stop
Working Process
The complete operational sequence includes: Coil-loading → Double-mandrel uncoiler → Coil-head-feeding, press & shoveling → Double-roller pinch feeding, five-roller leveling → End-cutting → Hole Accumulator(1) → Strip-aligning → Disc shearing → Scrap reeling → Hole Accumulator(2) → Pre-separator/Tensioner/length-measuring roller → Recoiling/Coils press & separator → Coils-discharging → Hydraulic control → Electric control.
Technical Parameters
Material of coils: HRC, CRC, GI, PPGI, ST37, ST52
Strip thickness: (0.4-4) mm
Max. Strip width: 1600mm
Coil ID: ≥Φ508mm
Coil OD: Φ2000mm
Max. Coil weight: 30000Kgs
Slitter motor: 90KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives: ID220mm x OD330mm x 10mm, 6CrW2Si
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning system: Frictional wool felt wrapping around wooden plates
Recoiler block: Ф508 x 1700mm
Recoiler motor: 110KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels
Slitting speed: max 100m/min, adjustable
Model Specifications
| Model |
Thickness |
Width |
Coil Weight |
Finished slit width |
Max Slitting speed |
| JY-1 x 600 |
0.2-1mm |
100-600mm |
Max 8T |
Min. 20mm |
120m/min |
| JY-2 x 1300 |
0.3-2mm |
300-1300mm |
Max 15T |
Min. 25mm |
150m/min |
| JY-3 x 1600 |
0.3-3mm |
500-1600mm |
Max 20T |
Min 25mm |
120m/min |
| JY-4 x 1600 |
0.4-4mm |
500-1600mm |
Max 30T |
Min 30mm |
120m/min |
Note: The data in the form serves as general reference. We design and manufacture each line according to specific customer requirements, ensuring optimal performance for each application.
Our slitting line machines are fully customizable. Provide your specific parameters and requirements, and we'll design a tailored machinery solution for your operation.
