Introduction:

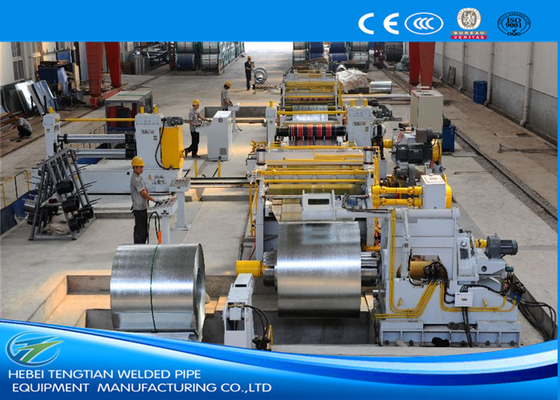

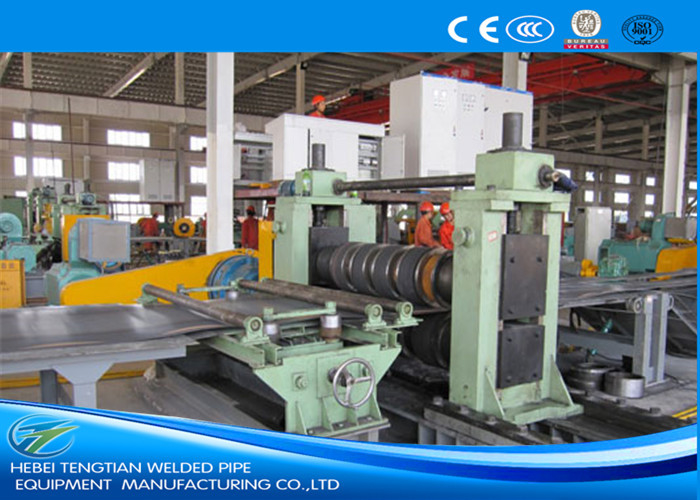

This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.

2. Double cone-mandrel decoiler, not only to bear big coils such as 35T or 40T, but also convenient for loading coil onto the decoiler.
3. Coil-loading car has support platform with twp rotatable rollers at edge edges, while loading coil onto double-cone decoiler, on one hand, solidly support a big coil; on the other hand, double rollers on coil car platform rotate synchronously with decoiling mandrel.
4. Strength of all rollers and shafts increase with steel strip thickness.
5. Dual-body scrap winders are driven by two torque motors and two speed reducers.
6. Recoiling tensioner of the metal coil slitter, or sheet slitting line,adopts solid five-roller tensioning structure, providing stable and even tension for recoiling.
7. Coils pusher is installed on recoiler, to push coils out whiling discharging slit coils.
8. AC motors and speed reducers drive pinch-feeder & five-roller leveler and five-roller tensioner, while DC motors & speed reducers drive slitter and recoiler.
9. Coil slitting machine's electric control: Parker Eurotherm 590 speed controller + PLC control.


Working Process:
Coil-loading — Double-mandrel uncoiler — Coil-head-feeding, press & shoveling — Double-roller pinch feeding, five-roller leveling — End-cutting — Hole Accumulator(1) — Strip-aligning — Disc shearing — Scrap reeling — Hole Accumulator(2) — Pre-separator/Tensioner/length-measuring roller — Recoiling/Coils press & separator — Coils-discharging — Hydraulic control — Electric control



Main technical parameter

Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Strip thickness: (4~16) mm
Metal Coil Slitter Strip width: 800~2200mm
Coil Slitting Machine Max.coil weight: 40000kgs

Diameter of leveling rollers & tensioning roller: Φ230
Diameter of slitter shaft: Φ360
Metal Coil Slitter Disc cutters: 6CrW2Si, HRC54°~56°, OD600mm x ID360mm x T50mm.
Diameter of recoiler block: Φ760mm
Coil Slitting Machine Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 200KW, 250KW.
Slitting speed: (0~30) m/min, adjustable

Slitting line machine is usually be customized according to customer's requirements, As long as you provide parameters and requirements for us, and then we designed for you a suitable machinery equipment scheme.
