SKD11 Blade Steel Slitting Machine 50m/min 250KW 440V

Name: SKD11 Blade Steel Slitting Machine 50m/min 250KW 440V
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZJ-(4-16)×2200mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ZJ-(4-16)×2200mm

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ZJ-(4-16)×2200mm

Name:

SKD11 Blade Slitter Mill Speed 50m / Min 250KW Power 440V Steel Slitting Machine

Voltage:

220/380/415/420/440V

Mill Speed:

Max 50m/min

Warranty:

1 Year

Blade Material:

SKD11

Width Tolerance:

+/-0.05mm

Control:

PLC

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Max. Slitting Strips:

25 Strips

Coil Weight:

350 Tons Max.

Highlight:

High Light

Highlight:

sheet metal slitter machine

strip slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

40 Sets/Year

Product Description

SKD11 Blade Slitter Mill Speed 50m/Min 250KW Power 440V Steel Slitting Machine

Key Specifications

Attribute	Value
Voltage	220/380/415/420/440V
Mill speed	Max 50m/min
Warranty	1 Year
Blade Material	SKD11
Width tolerance	+/-0.05mm
Control	PLC
After-sales Service	Engineers available to service machinery overseas
Max. Slitting Strips	25 strips
Coil Weight	350 tons max.

Product Overview

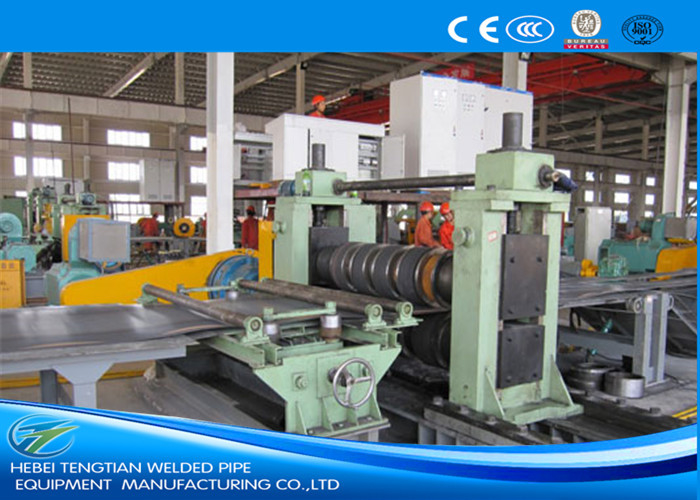

This heavy-duty steel slitting machine efficiently processes thick master coils into smaller baby coils with precision cutting. The complete slitting line includes:

Coil-loading car with double mandrel uncoiler
Portal style coil-head guide and press equipment
Double roller pinching feeder with five-roller leveler
Central aligner with disc slitter
Scrap winder and hole accumulator
Pre-separator & tensioner system
Portal style coils-separator and presser
Recoiler with coil unloading car
Advanced hydraulic and electric control systems

Standard Capacities

Strip thickness: 3-12mm, 4-16mm, or 5-20mm options
Strip width: 500-1800mm, 800-2000mm, or 1000-2200mm configurations

Key Features

Double cone-mandrel decoiler supports heavy coils up to 40T
Coil-loading car with rotating rollers for smooth operation
Reinforced rollers and shafts for heavy-gauge materials
Dual-body scrap winders with torque motor drive
Five-roller tensioning structure for stable recoiling
Integrated coils pusher for efficient discharge
Combination of AC and DC motor drives for optimal performance
Parker Eurotherm 590 speed controller with PLC automation

Technical Parameters

Material compatibility: HR/CR carbon steel, galvanized plate, colored steel
Standard strip thickness: 4-16mm
Working width: 800-2200mm
Max coil weight: 40,000 kgs
Leveling roller diameter: Φ230mm
Slitter shaft diameter: Φ360mm
Disc cutters: 6CrW2Si, HRC54°-56°, OD600mm
Recoiler block diameter: Φ760mm
Slitting speed: 0-30 m/min (adjustable)

Standard Models

Model	Thickness	Width	Coil Weight	Finished Width	Max Speed
JY-12 x 1800	3-12mm	600-1800mm	Max 35T	Min. 60mm	30m/min
JY-16 x 2200	4-16mm	800-2200mm	Max 40T	Min. 100mm	30m/min
JY-20x 2000	5-20mm	800-2000mm	Max 40T	Min 100mm	20m/min

Note: Specifications are provided as general reference. All slitting lines are custom-designed to meet specific customer requirements.
