PLC Controlled Steel Slitting Machine for HRC CRC Galvanized Coils

Name: PLC Controlled Steel Slitting Machine for HRC CRC Galvanized Coils
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZJ-(5-20)×2000mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ZJ-(5-20)×2000mm

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ZJ-(5-20)×2000mm

Material:

HRC,CRC,Galvanised Steel Sheet

Voltage:

220/380/415/420/440V

Mill Speed:

Max 30m/min

Width Tolerance:

+/-0.05mm

Control:

PLC

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Coil Weight:

40 Tons Max.

Thickness Range:

5 - 20mm

Highlight:

High Light

Highlight:

slitting line machine

sheet metal slitter machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

40 Sets/Year

Product Description

Rolled Coil Steel Slitting Machine For Steel PLC Control With SKD11 Blade Adjustable Speed

Product Specifications

Attribute	Value
Material	HRC, CRC, Galvanised Steel sheet
Voltage	220/380/415/420/440V
Mill speed	Max 30m/min
Width tolerance	+/-0.05mm
Control	PLC
After-sales Service	Engineers available to service machinery overseas
Coil Weight	40 tons max.
Thickness Range	5 - 20mm

ZJ-(4-16) ×2200mm Full Automatic High Precision Hot Rolled Steel Coil Slitting Machine

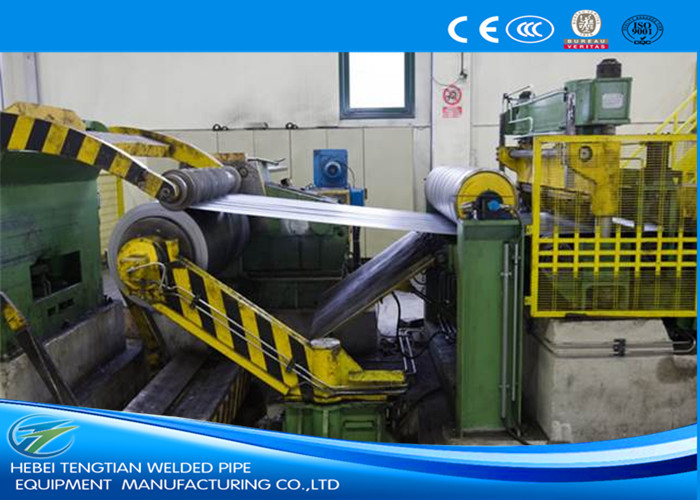

This thick plate slitting line, also called metal coil slitter, is designed to slit thick steel master coils into smaller baby coils with precision and efficiency.

Machine Components

Coil-loading car with support platform
Double mandrel big-load uncoiler
Portal style coil-head guide
Press and shovel equipment
Double roller pinching feeder
Five-roller leveler
Disc slitter with scrap winder
Hole accumulator and pre-separator/tensioner
Portal style coils-separator and presser
Recoiler with coil unloading car
Hydraulic and electric control systems

Technical Parameters

Material: HR/CR carbon steel (Q235), galvanized plate, colored steel plate
Strip thickness: 5-20mm
Strip width: 800-2000mm
Max coil weight: 40,000kg
Leveling rollers diameter: Φ260
Slitter shaft diameter: Φ420
Disc cutters: 6CrW2Si, HRC54°-56°, OD650mm × ID420mm × T50mm
Recoiler block diameter: Φ800mm
Separating discs: 65Mn, OD250 × ID110 × T10/20mm
Slitting speed: 0-20m/min (adjustable)

Model Specifications

Model	Thickness	Width	Coil Weight	Finished Slit Width	Max Slitting Speed
JY-12 x 1800	3-12mm	600-1800mm	Max 35T	Min. 60mm	30m/min
JY-16 x 2200	4-16mm	800-2200mm	Max 40T	Min. 100mm	30m/min
JY-20x 2000	5-20mm	800-2000mm	Max 40T	Min 100mm	20m/min

Note: Specifications are reference values based on general ranges. Each sheet slitting line is custom-designed according to specific customer requirements.

Customization Service

Our slitting line machines are customized to meet each customer's specific requirements. Provide your parameters and we will design a tailored machinery solution for your operation.
