Material: | HRC,CRC,Galvanised Steel Sheet | Voltage: | 220/380/415/420/440V |
---|---|---|---|
Mill Speed: | Max 30m/min | Width Tolerance: | +/-0.05mm |
Control: | PLC | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Coil Weight: | 40 Tons Max. | Thickness Range: | 5 - 20mm |
Highlight: | slitting line machine,sheet metal slitter machine |
ZJ-(4-16)×2200mm full automatic high precision hot rolled steel coil slitting machine
Introduction:

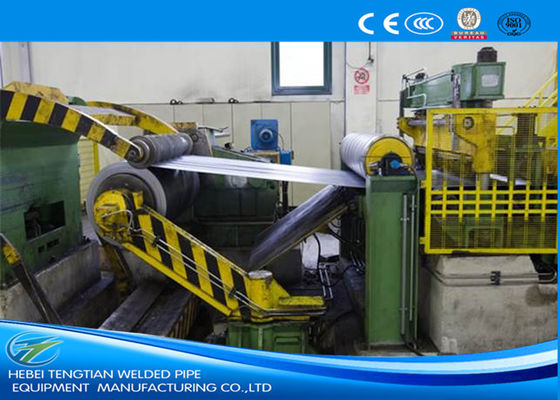

This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.
2. Double cone-mandrel decoiler, not only to bear big coils such as 35T or 40T, but also convenient for loading coil onto the decoiler.
3. Coil-loading car has support platform with twp rotatable rollers at edge edges, while loading coil onto double-cone decoiler, on one hand, solidly support a big coil; on the other hand, double rollers on coil car platform rotate synchronously with decoiling mandrel.
4. Strength of all rollers and shafts increase with steel strip thickness.
5. Dual-body scrap winders are driven by two torque motors and two speed reducers.
6. Recoiling tensioner of the metal coil slitter, or sheet slitting line,adopts solid five-roller tensioning structure, providing stable and even tension for recoiling.
7. Coils pusher is installed on recoiler, to push coils out whiling discharging slit coils.
8. AC motors and speed reducers drive pinch-feeder & five-roller leveler and five-roller tensioner, while DC motors & speed reducers drive slitter and recoiler.
9. Coil slitting machine's electric control: Parker Eurotherm 590 speed controller + PLC control.
Working Process:
Coil-loading — Double-mandrel uncoiler — Coil-head-feeding, press & shoveling — Double-roller pinch feeding, five-roller leveling — End-cutting — Hole Accumulator(1) — Strip-aligning — Disc shearing — Scrap reeling — Hole Accumulator(2) — Pre-separator/Tensioner/length-measuring roller — Recoiling/Coils press & separator — Coils-discharging — Hydraulic control — Electric control
Main technical parameter
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness: (5~20) mm
Strip width: 800~2000mm
Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Metal Coil Slitter Diameter of slitter shaft: Φ420
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable
Slitting line machine is usually be customized according to customer's requirements, As long as you provide parameters and requirements for us, and then we designed for you a suitable machinery equipment scheme.
Model | Thickness | Width | Coil Weight | Finished slit width | Max Slitting speed |
JY-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
JY-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
JY-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer's specific requirements, so each customer can buy his own well-content coil slitting machine from us. |
