Full Automatic Steel Slitting Machine With Safety Operation 1 Year Warranty
Product Specifications
| Attribute |
Value |
| Material |
HRC, CRC, Galvanised Steel sheet |
| Voltage |
220/380/415/420/440V |
| Mill speed |
Max 150m/min |
| Warranty |
1 Year |
| Blade Material |
SKD11 |
| Width tolerance |
+/-0.05mm |
| Control |
PLC |
| After-sales Service |
Engineers available to service machinery overseas |
| Max. Slitting Strips |
25 strips |
| Coil Weight |
12 tons max. |
| Colour |
Blue |
Product Overview

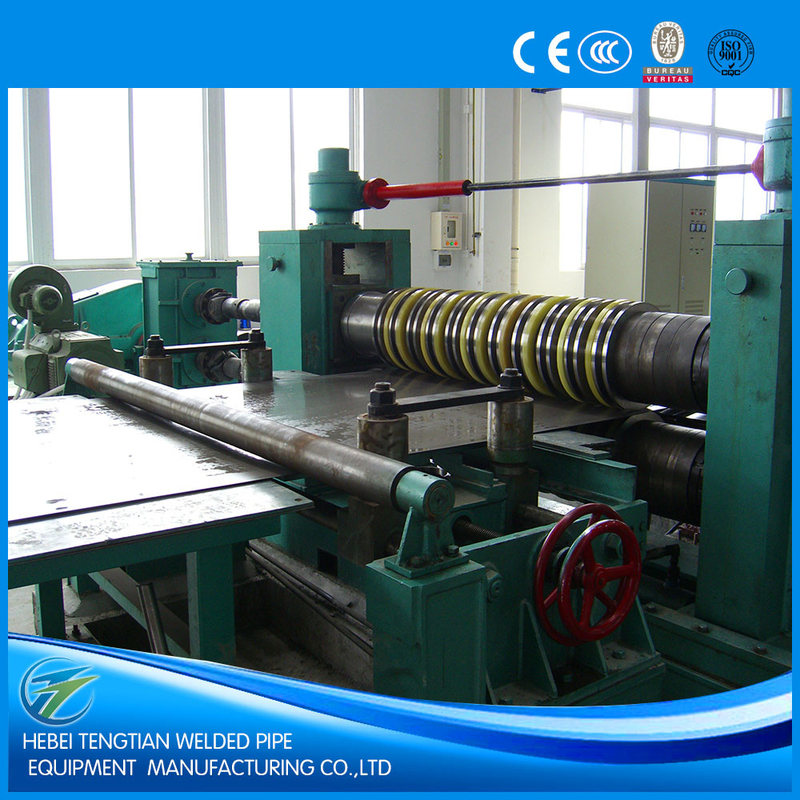

ZJ-(0.3-3) ×1300mm Full Automatic High Precision High Speed Steel Slitting Line Machine
This thin sheet slitting line, also called metal coil slitter, is a production line designed to break down master coils into smaller coils of specific widths. The system includes coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling, coil down car, hydraulic control, and electric control.
Key Features
- Custom-designed production lines tailored to customer requirements
- Flexible configuration with single or double mandrel uncoiler options
- Precision control for centerline, slitting accessories, and recoiling
- Surface protection measures for delicate materials like stainless steel
- Advanced hydraulic system design and production
- High-quality components from trusted suppliers
- Strict quality control throughout manufacturing process
- Competitive pricing through efficient production cost management
- Option for AC or DC motor drive (default DC motor with Eurotherm 590 DC driver)
- Comprehensive safety features including emergency stop
Working Process
Coil-loading
Double-mandrel uncoiler
Coil-head-feeding
Press & shoveling
Double-roller pinch feeding
Five-roller leveling
End-cutting
Hole Accumulator(1)
Strip-aligning
Disc shearing
Scrap reeling
Hole Accumulator(2)
Pre-separator/Tensioner
Recoiling/Coils press & separator
Coils-discharging
Hydraulic control
Electric control
Technical Parameters
Material of coils: carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: (0.3-3) mm
Max. Strip width: 1300mm
Inner diameter of coils: ≥Φ508mm
Outer diameter of coils: Φ1800mm
Max. Coil weight: 15000Kg
Slitter motor: 75KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11)
Separating disc: ID75 x OD180mm x 6mm, 65Mn
Recoiler block: Ф508 x 1400mm
Recoiler motor: 110KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels
Slitting speed: max 100m/min, adjustable
Model Specifications
| Model |
Thickness |
Width |
Coil Weight |
Finished slit width |
Max Slitting speed |
| JY-1 x 600 |
0.2-1mm |
100-600mm |
Max 8T |
Min. 20mm |
120m/min |
| JY-2 x 1300 |
0.3-2mm |
300-1300mm |
Max 15T |
Min. 25mm |
150m/min |
| JY-3 x 1600 |
0.3-3mm |
500-1600mm |
Max 20T |
Min 25mm |
120m/min |
| JY-4 x 1600 |
0.4-4mm |
500-1600mm |
Max 30T |
Min 30mm |
120m/min |
Note: The data in the table is for reference only. We design and manufacture each line according to specific customer requirements.
